Mercusys MB113-4G WiFi4 router (N300, 4G LTE, 2,4GHz, 1x100Mb/s LAN/WAN,1x100Mb/s LAN,1xnanoSIM)
Popis a parametre
Mercusys MB113-4G WiFi4 router (N300, 4G LTE, 2,4GHz, 1x100Mb/s LAN/WAN,1x100Mb/s LAN,1xnanoSIM)
Mercusys MB113-4G
300 Mb/s bezdrátový 4G LTE přenosný router
- 4G síť: Sdílejte internetové připojení až pro 32 Wi-Fi zařízení a užívejte si rychlost stahování až 150 Mb/s ?.
- 300 Mb/s Wi-Fi: Rychlá Wi-Fi s rychlostí až 300 Mb/s pro sdílení vaší sítě ?.
- Snadná přenosnost: S velikostí telefonu a skládacími anténami se MB113-4G snadno vejde do tašky nebo dokonce do kapsy.

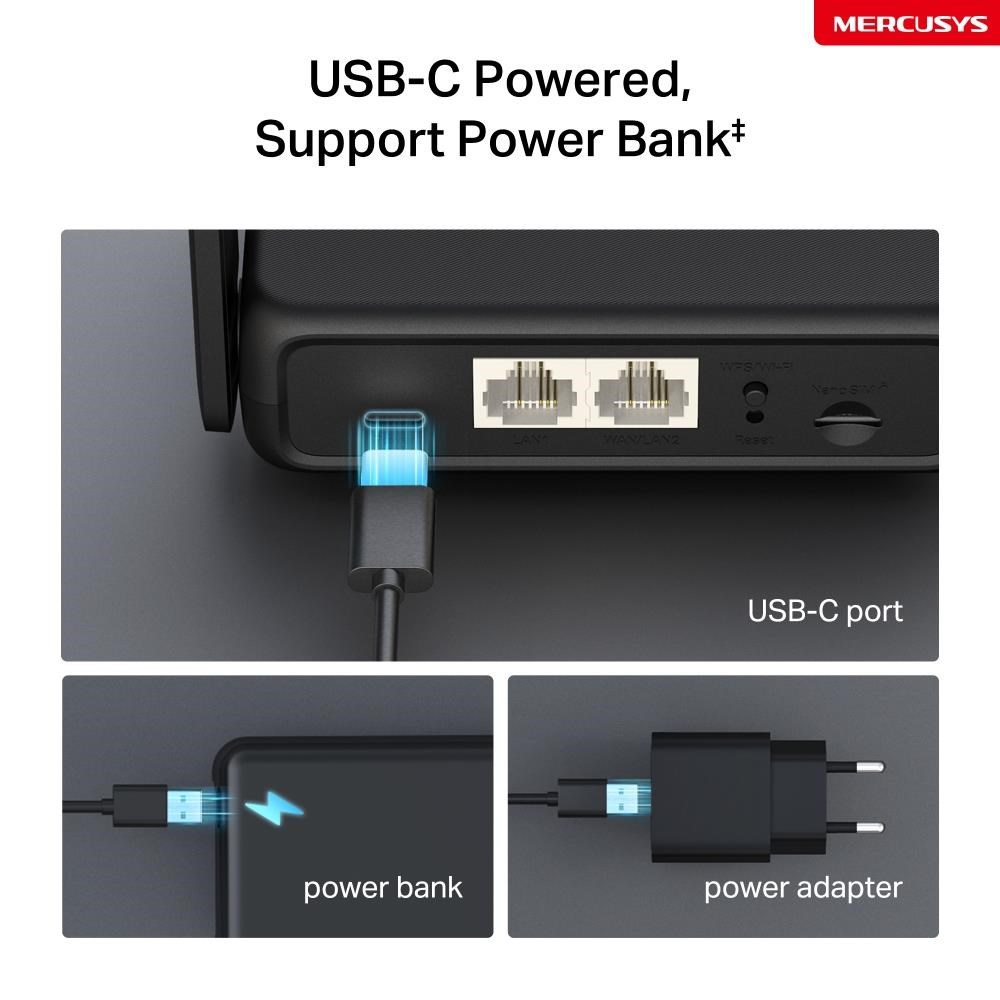

- Podpora powerbanky: Díky portu USB-C podporuje MB113-4G také nabíjení z powerbanky ‡.
- Zapojte SIM kartu a hrajte: Není potřeba žádná konfigurace, kompatibilita SIM karet je ověřena roky testování v terénu §.
- Dvourežimový VPN router: Jedno zařízení, dva režimy: režim Klient šifruje celou vaši domácí síť; režim Server vám umožní vzdálený přístup k domácím zařízením.
- Režim Wi-Fi routeru: Pokud nemáte k dispozici 4G připojení, zapojte ethernetový kabel do portu LAN/WAN pro flexibilní přístup.
- Poznámka: Ujistěte se, že je vaše SIM karta odemčená.
Stránky produktu: https://www.mercusys.com/cz/product/details/mb113-4g
Technické specifikace
| Wireless | |
| Network Type | EU: |
| FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) | |
| TDD-LTE: B38/B40 (2600/2300 MHz) | |
| HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) | |
| LTE Standard | Cat 4 |
| 150/50 Mbps DL/UL | |
| Wi-Fi Class | |
| Wi-Fi (2.4 GHz) | 300 Mbps |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Reception Sensitivity | 11b 11 Mbps: -87.5 dBm |
| 11g 54 Mbps: -74 dBm | |
| 11n HT20 MCS7: -71 dBm | |
| 11n HT40 MCS7: -69 dBm | |
| Max Channel Width | 40 MHz |
| MAX Capacity | 32 |
| Recommended Clients Limit | 16 |
| Max Wi-Fi Modulation | MCS7 |
| Wireless Security | WPA-PSK / WPA2-PSK |
| Wireless Functions | Smart connect |
| WPS | |
| Wireless Schedule | |
| Wireless Clients Statistics | |
| Software | |
| Operation Modes | 3G/4G Router |
| Wireless Router | |
| Cellular Mode | 4G Preferred |
| 4G Only | |
| 3G Only | |
| Cellular APN | Data Roaming |
| Network Search | |
| Profile Create | |
| APN Settings | |
| ISP File Upgrade | |
| PIN Management | |
| WAN Mode | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| DHCP | Server |
| DHCP Client List | |
| Address Reservation | |
| NAT Forwarding | ALG |
| Virtual Server | |
| Port Triggering | |
| UPnP | |
| DMZ | |
| Protocols | IPv4, IPv6 |
| Data Settings | Data Statistics |
| Data Limit | |
| Guest Network | 2.4 GHz Guest Network |
| Parental Controls | Time Control |
| Website Filtering | |
| DDNS | DynDNS |
| NO-IP | |
| VPN Sever | OpenVPN |
| PPTP VPN | |
| L2TP VPN | |
| SMS | Inbox |
| New Message | |
| Outbox | |
| Drafts | |
| Security | IPv4 SPI Firewall |
| Access Control | |
| Service Filtering | |
| IP & MAC Binding | |
| IPv6 Firewall | |
| ISP Feature | TR-069 |
| System | Time Settings |
| LED Control | |
| Diagnostics | |
| Firmware Upgrade | |
| Backup&Restore | |
| Reboot | |
| Administration | |
| System Log | |
| CWMP Settings | |
| LED Management | LED Control |
| Night Mode | |
| Device Management | MERCUSYS APP |
| Web GUI | |
| Cloud | Firmware Upgrade over the Cloud |
| Remote Management | |
| Language | English |
| Spanish | |
| Italian | |
| Polish | |
| Russian | |
| Hardware | |
| Dimensions (W X D X H) | 108 × 86.8 × 34 mm |
| (4.3 × 3.4 × 1.3 in) | |
| Interfaces | 1× 100 Mbps LAN/WAN Port |
| 1× 100 Mbps LAN Port | |
| 1× Nano SIM Card Slot | |
| Antenna | 2 External Non-detachable 4G LTE Antennas |
| 2 Internal Wi-Fi Antennas | |
| Button | 1×WPS/Wi-Fi Button |
| 1×Reset Button | |
| Retail Package Weight | 0.35 kg |
| Installation | Desktop |
| LED | 1× Power |
| 1× Internet | |
| 1× LAN | |
| 3× Signal | |
| Retail Package Dimension | 192 × 148 × 58 |
| Units per Carton | 32 |
| Carton Dimension | 480 × 400 × 320 |
| Power Consumption | USB-C: 5V/1.5A |
| Others | |
| Certifications | CE |
| Network Services Enabled by Default | Web Server |
| Manage and configure device through web (HTTP/HTTPS) | |
| • Port: 80/443 Protocol: TCP | |
| DHCP Server | |
| IP address assignment (DHCP) | |
| • Port: 67 Protocol: UDP | |
| CWMP | |
| CWMP | |
| • Port: 7547 Protocol: TCP | |
| App management | |
| Manage and configure device through app | |
| • Port: 20001 Protocol: TCP | |
| • Port: 20002 Protocol: UDP | |
| 300 Mbps Wireless 4G LTE Router (MB113-4G) | |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| Operating Temperature: 0 °C~40 °C (32 °F~104 °F) | |
| Storage Temperature: -40 °C~60 °C (-40 °F~140 °F) | |
| Operating Humidity: 10%~90% Non-Condensing | |
| Storage Humidity: 5%~90% Non-Condensing |
