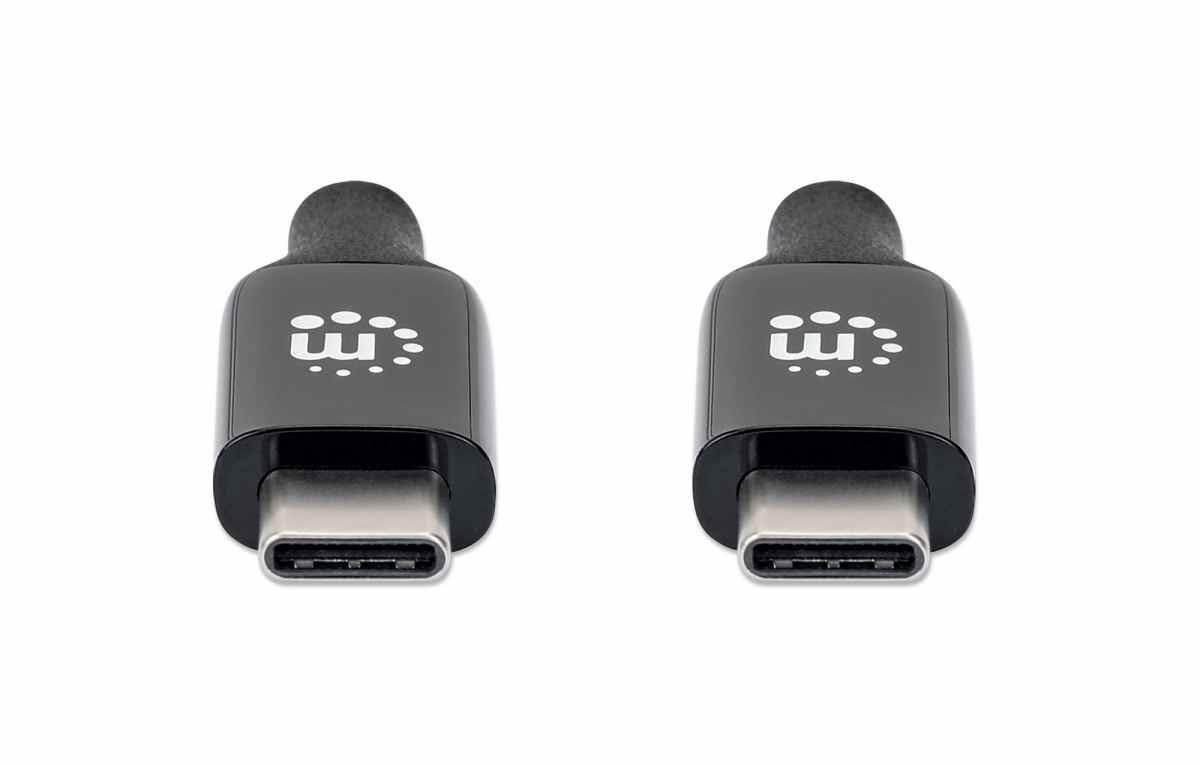

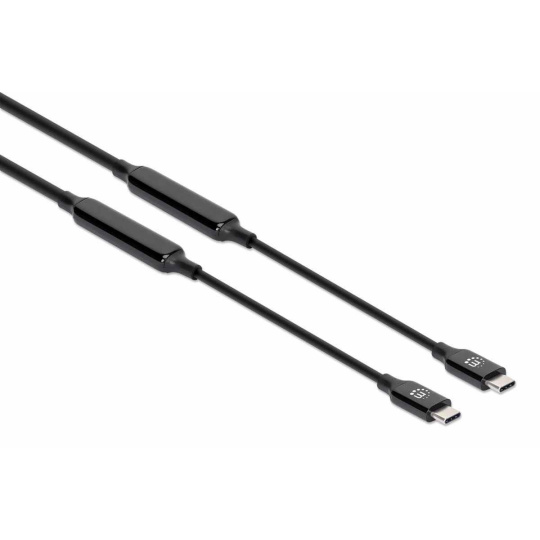

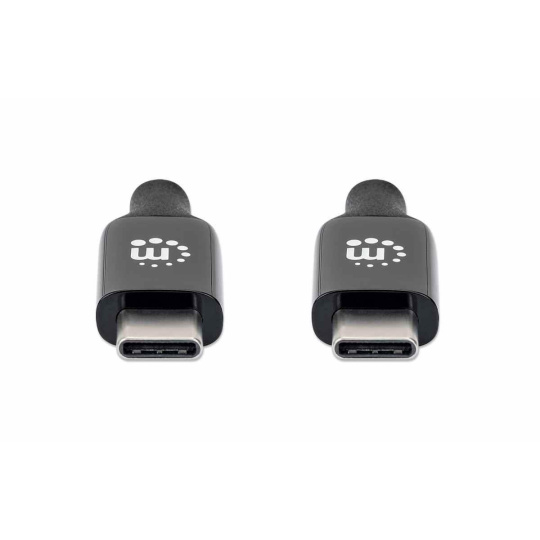

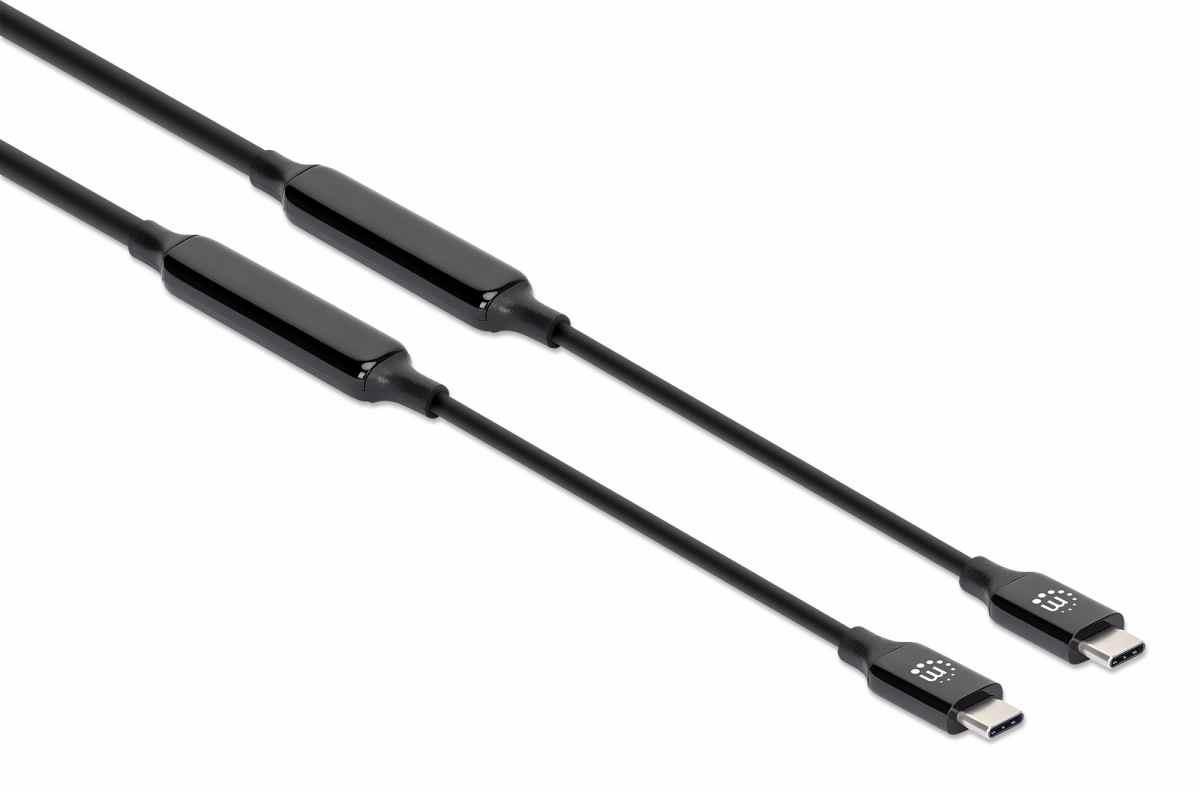

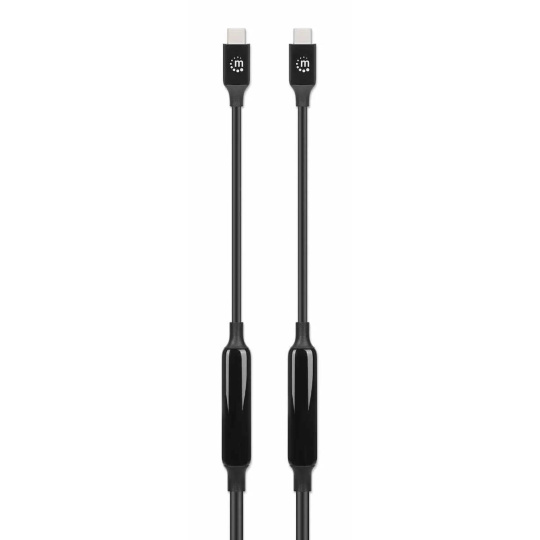

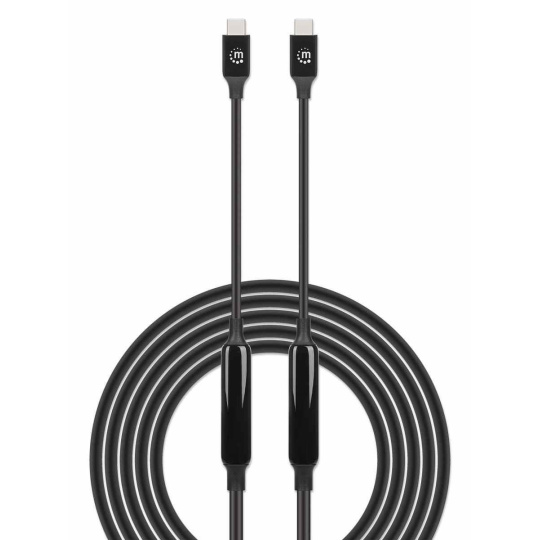

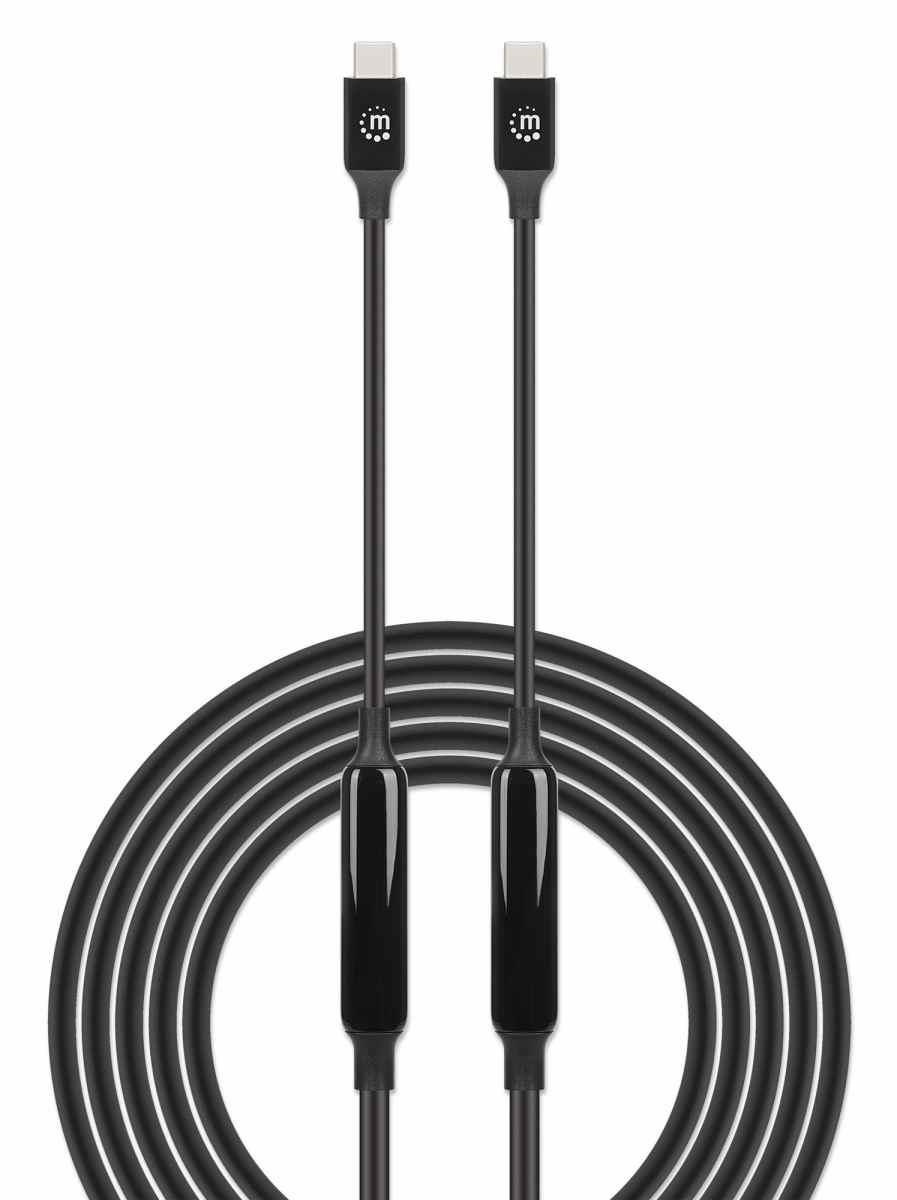

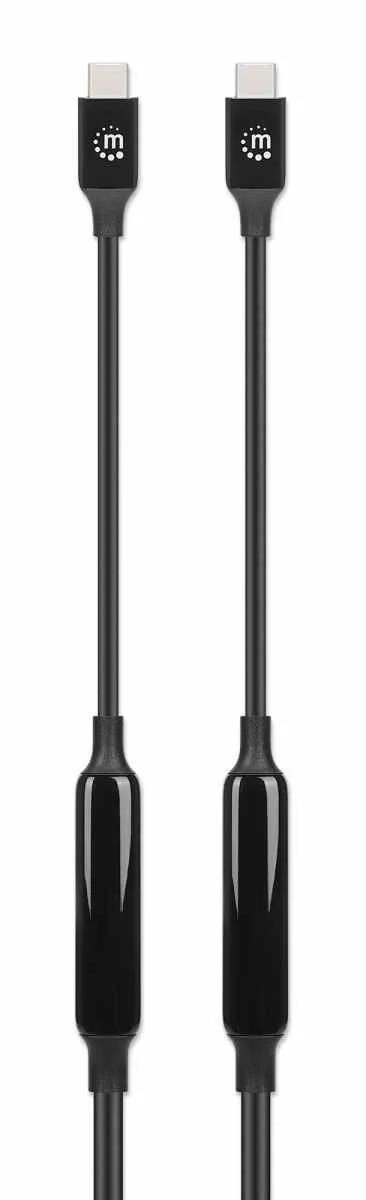

MANHATTAN Kabel USB-C Male to Male, USB 3.2 Gen 2 Type-C Active Device Cable, 5m, pozlacené koncovky, černá
Popis a parametre
MANHATTAN Kabel USB-C Male to Male, USB 3.2 Gen 2 Type-C Active Device Cable, 5m, pozlacené koncovky, černá
USB 3.2 Gen 2 Type-C Active Device Cable
USB-C Male to USB-C Male, 5 m (16 ft.), SuperSpeed+ USB, 10 Gbps, 60 W / 3 A, Gold-plated Contacts, Ideal for Docking Stations, Black
- USB-C male to USB-C male for connecting a USB-C device to a USB-C port
- USB 3.2 Gen 2 compliant with SuperSpeed+ transfer rates up to 10 Gbps; built-in retimer maintains full 10G up to 5 m (16 ft.)
- Overcomes the USB-C distance limitation for power, data and video at a range up to five times higher without signal loss
TECHNICAL SPECIFICATIONS
| Standards and Certifications | USB 3.2 Gen 2 CE RoHS FCC |
| General | Two USB-C 24-pin males Double shielding: aluminum foil and Mylar braid Gold-plated contacts Molded PVC boot with strain relief Thermal plastic casing 30/22 AWG |
| Outer diameter (OD) | 6.2 mm (0.24 in.) |
| Length | 5 m (16 ft.) |
| Weight | 286 g (10.09 oz.) |
| Package Contents | USB-C to USB-C Cable, USB 3.2 Gen 2 (10 Gbps) |
| Electrical | |
| Withstanding voltage | 300 VDC 10 ms |
| Insulation resistance | 10 MOhm min. |
| Contact resistance | 2 Ohm max. |
| Supported power throughput | 60 W / 3 A / 20 V |
| Operating Environment | |
| Operation temperature | 0 - 45°C (32 - 113°F) |
| Operating humidity (non-condensing) | 10 - 85% |
| Storage temperature | -10 - 70°C (14 - 158°F) |
| Storage humidity (non-condensing) | 5 - 90% |
.
