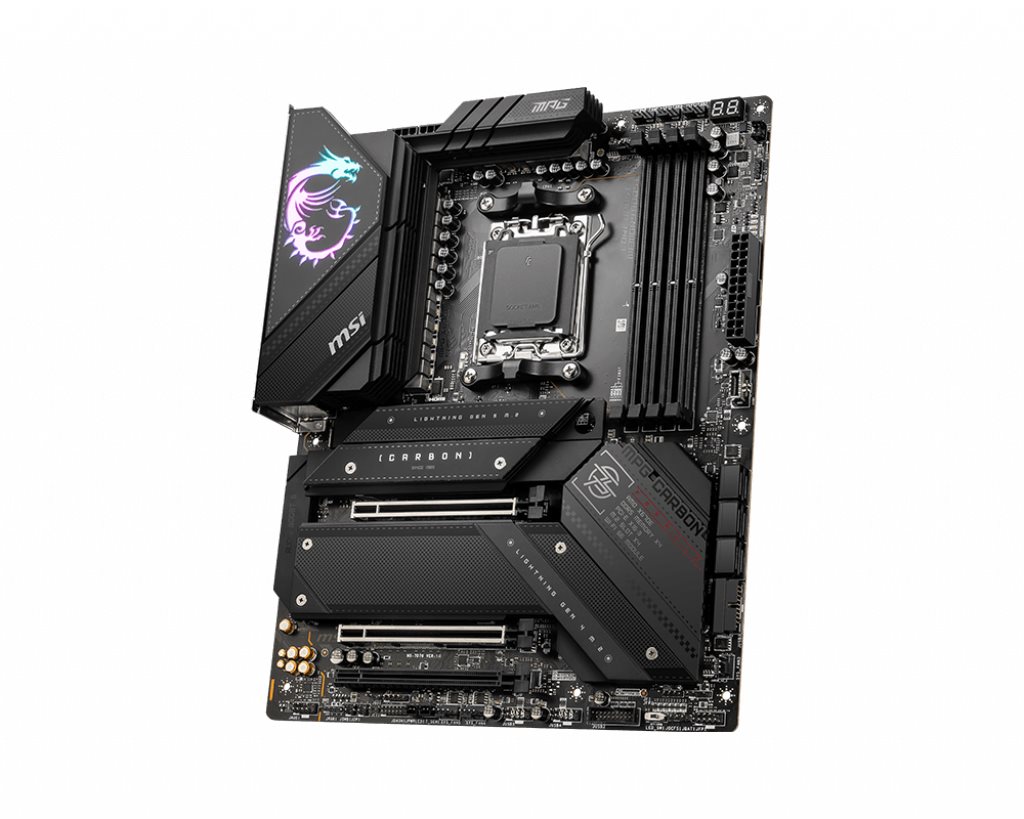

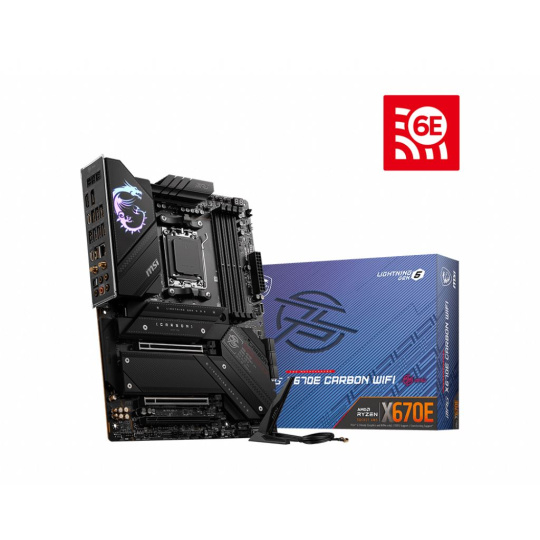

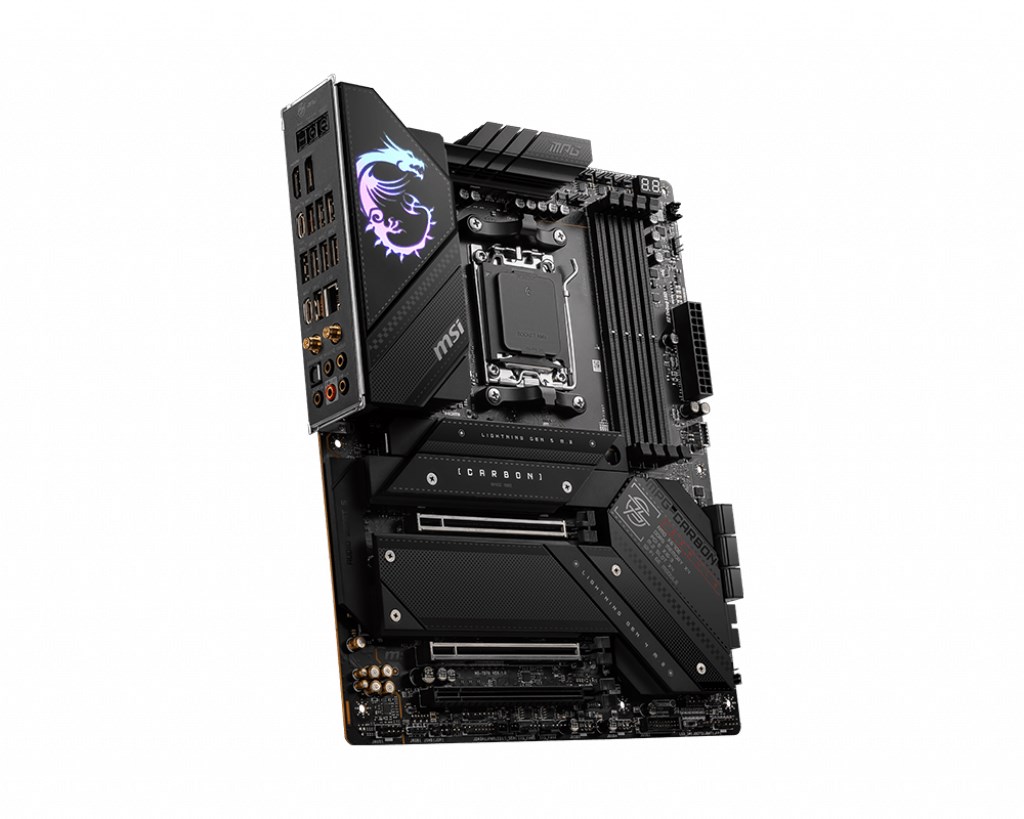

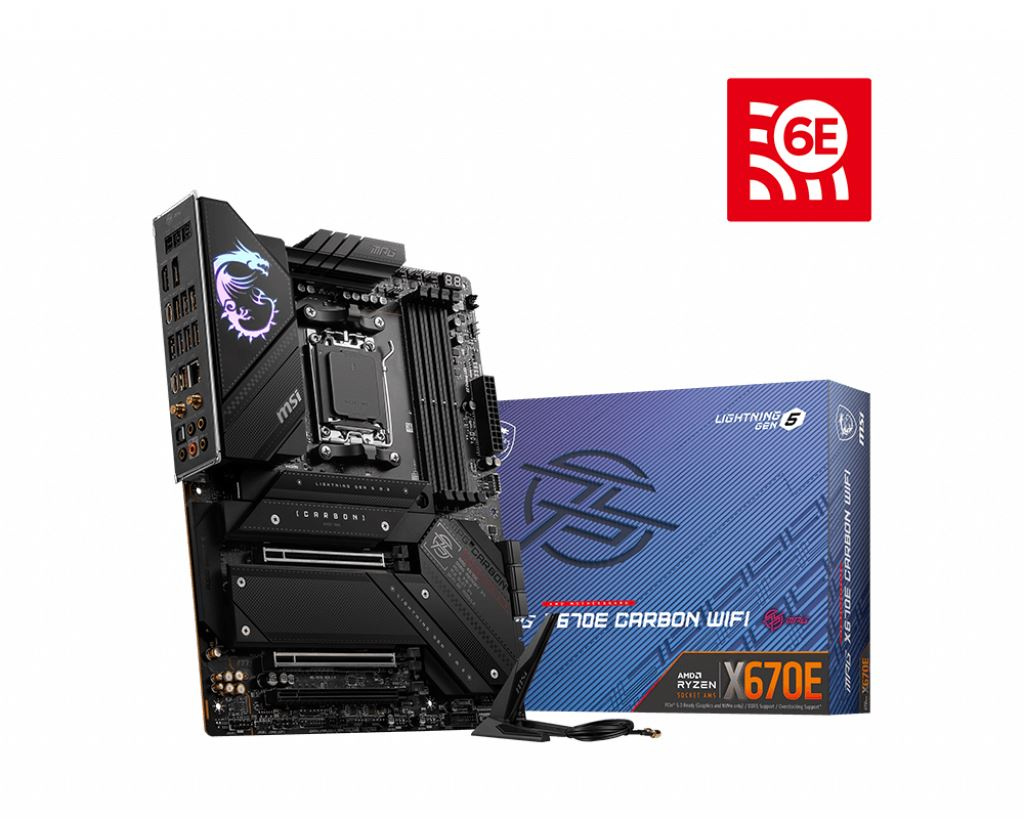

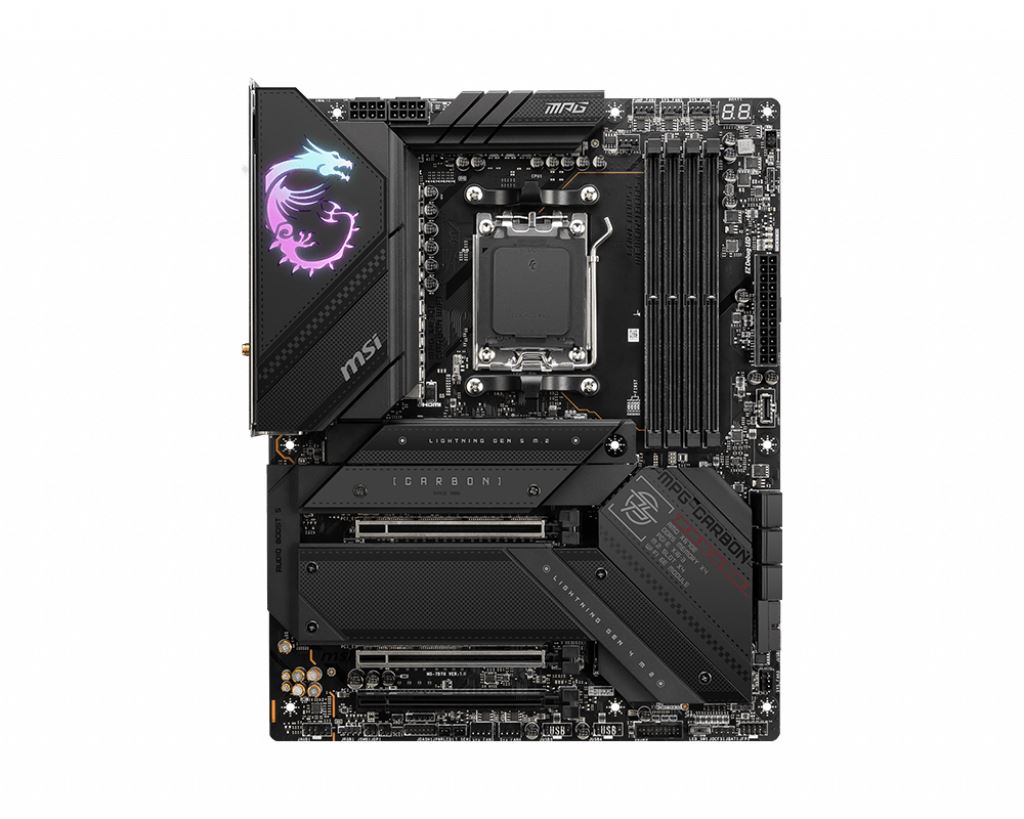

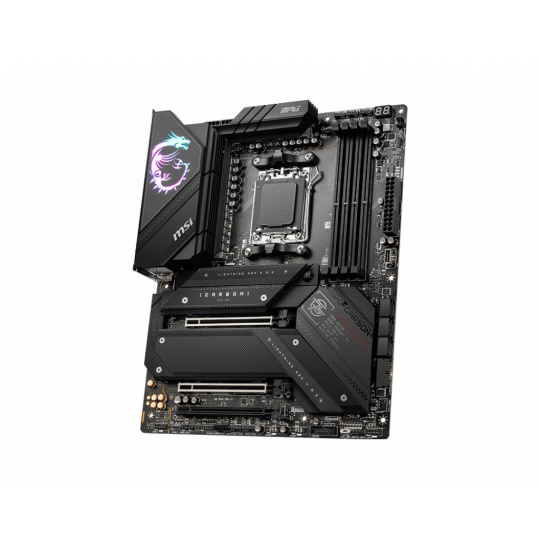

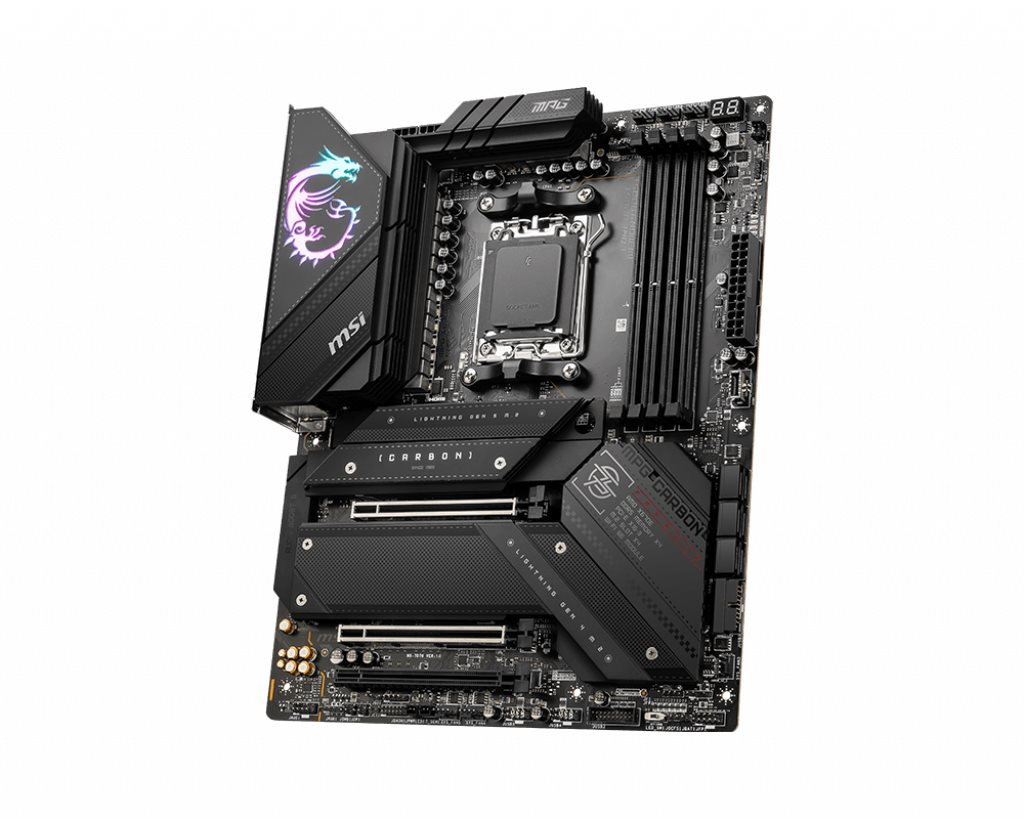

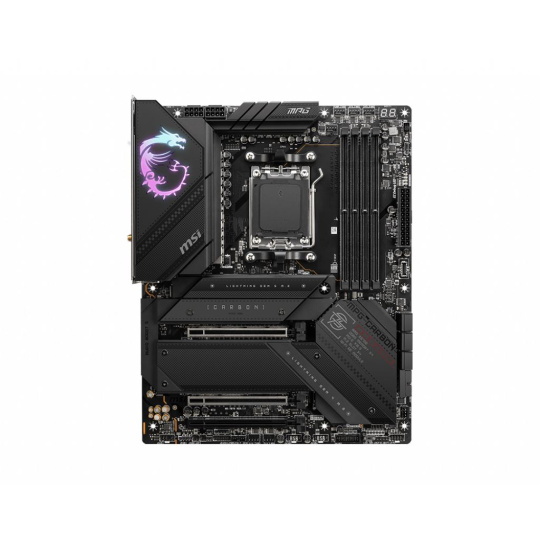

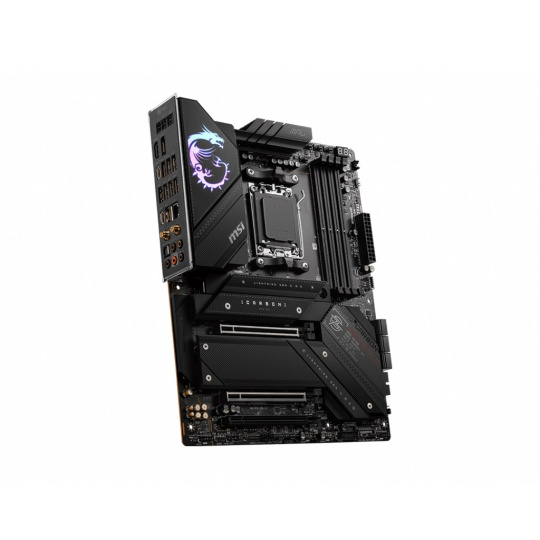

MPG X670E CARBON WIFI
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory
- Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
CHIPSET
AMD X670
CPU SUPPORT
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
MEMORY
4x DDR5, Maximum Memory Capacity 128GB
ONBOARD GRAPHICS
1x HDMI™
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x Display Port
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C Display port
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
MULTI-GPU
Supports AMD MULTI-GPU
STORAGE 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
LAN
Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
USB
2x USB 2.0 ports (Rear)
4x USB 2.0 ports (Front)
4x USB 3.2 Gen1 Type A ports (Front)
6x USB 3.2 Gen2 Type A ports (Rear)
1x USB 3.2 Gen2 Type C ports (Rear)
1x USB 3.2 Gen2 Type C ports (Front)
1x USB 3.2 Gen2x2 Type C ports (Rear)
AUDIO
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE
1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

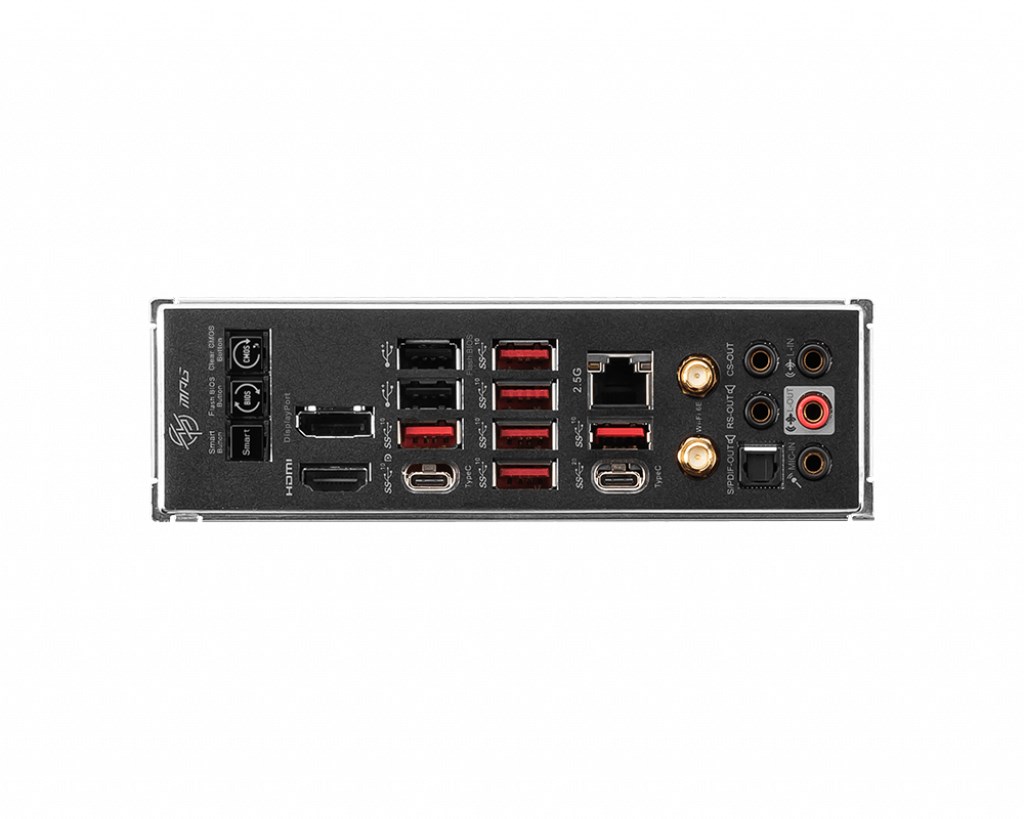

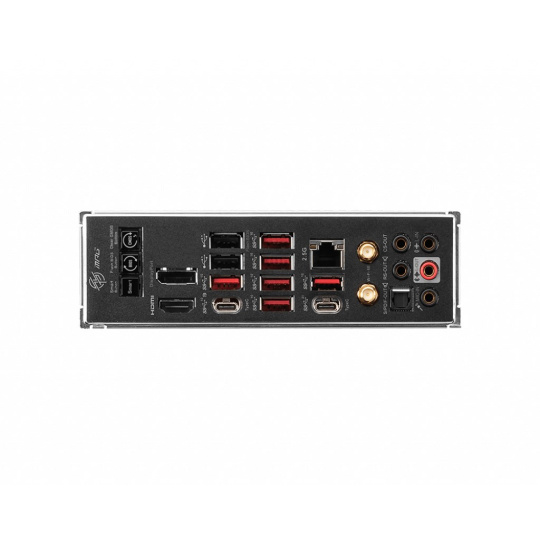

BACK PANEL PORTS
Clear CMOS Button
Flash BIOS Button
DisplayPort
USB 2.0
2.5G LAN
Audio Connectors
Smart Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Wireless / Bluetooth
S/PDIF-Out
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION
ATX
304.8mmx243.84mm
