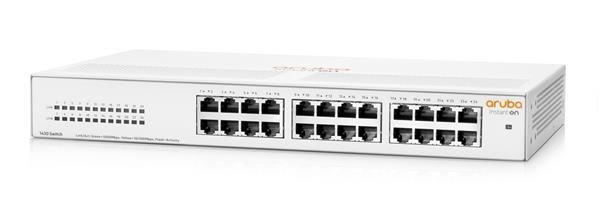

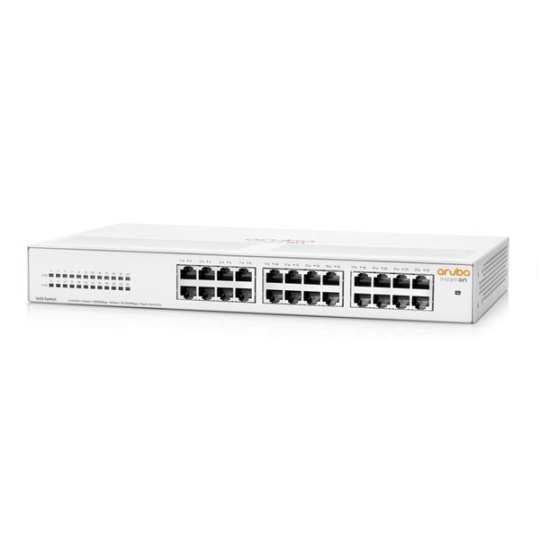

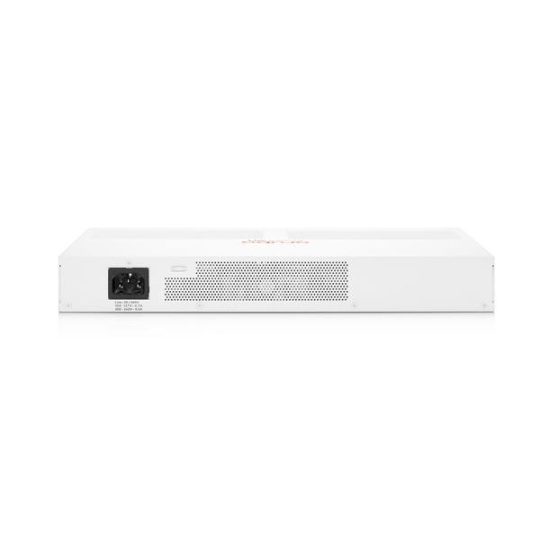

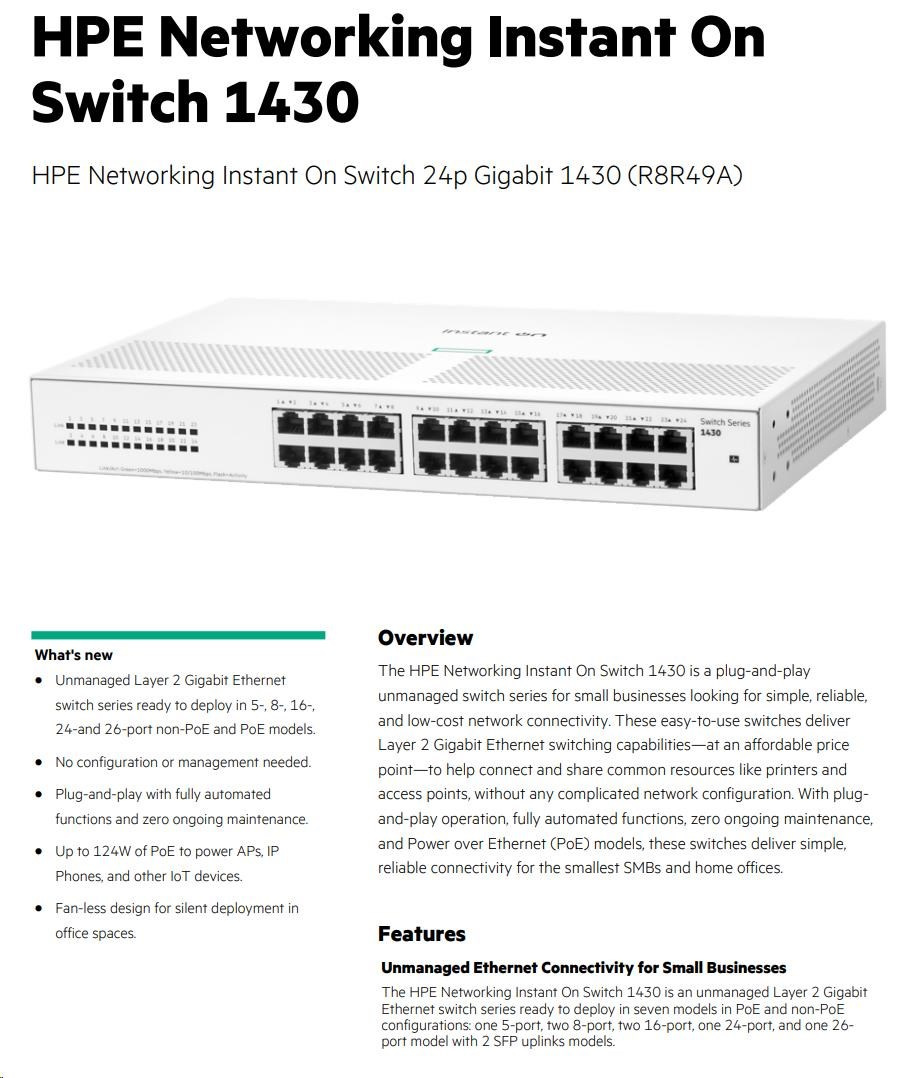

HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A
HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A
HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A

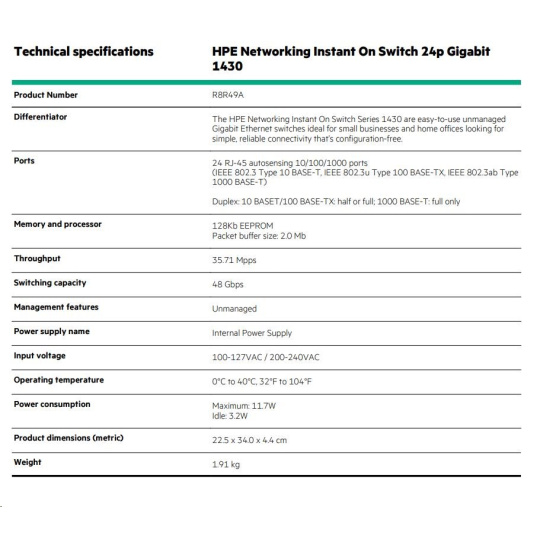

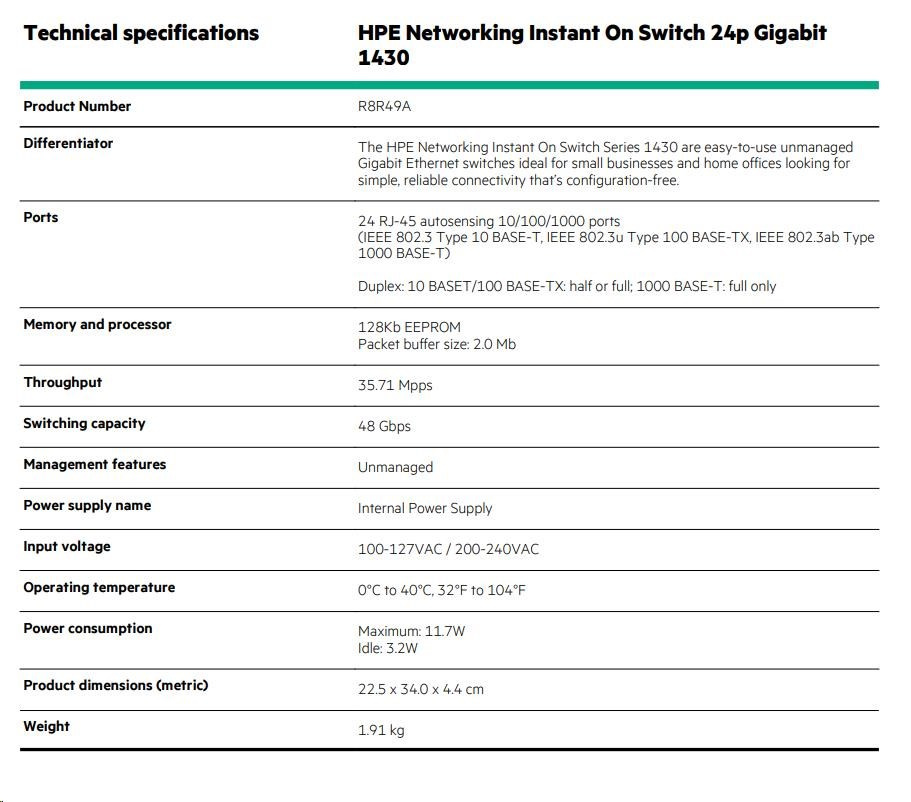

| Aruba Instant On 1430 24G Switch (R8R49A) | ||||
| I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only | |||
| Physical Characteristics | ||||
| Dimensions | 225(d) x 340(w) x 44(h) mm | |||
| Weight | 4.20 lb (1.91 kg) | |||
| Processor and Memory | 128Kb EEPROM; Packet buffer size: 2.0 Mb | |||
| Performance | ||||
| 100 Mb latency | < 2.7 µSec | |||
| 1000 Mb latency | < 1.80 µSec | |||
| Throughput (Mpps) | 35.71 Mpps | |||
| Capacity | 48 Gbps | |||
| MAC address table size | 8192 entries | |||
| Reliability MTBF (years) | 199.5 | |||
| Environment | ||||
| Operating temperature | 32°F to 104°F (0°C to 40°C) | |||
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing | |||
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft | |||
| Nonoperating/ storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing | |||
| Altitude | up to 10,000 ft (3 km) | |||
| Acoustics | Fanless | |||

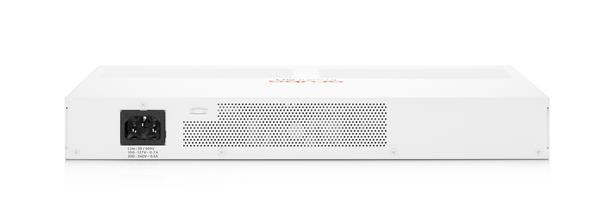

| Electrical Characteristics | ||||
| Frequency | 50Hz/60Hz | |||
| AC voltage | 100-127VAC / 200- 240VAC | |||
| Current | 0.3A / 0.2A | |||
| Maximum power rating | 11.7W | |||
| Idle power | 3.2W | |||
| PoE power | - | |||
| Power Supply | Internal Power Supply | |||
| Safety |
| |||
| Emissions |
| |||
| Immunity | BS/EN 55035, CISPR 35, KS C 9835 | |||
| Generic | EN 55035, CISPR 35 | |||
| EN | EN/IEC 61000-4-2 | |||
| ESD | EN/IEC 61000-4-3 | |||
| Radiated | EN/IEC 61000-4-4 | |||
| EFT/Burst | EN/IEC 61000-4-5 | |||
| Surge | EN/IEC 61000-4-6 | |||
| Conducted | EN/IEC 61000-4-8 | |||
| Power frequency magnetic field | EN/IEC 61000-4-11 | |||
| Voltage dips and interruptions | EN/IEC 61000-3-2 | |||
| Harmonics | EN /IEC 61000-3-3 | |||
| Device Management | Unmanaged | |||
| Mounting | ||||
| Mounting positions and supported racking |
| |||
| Transceivers | ||||
.
