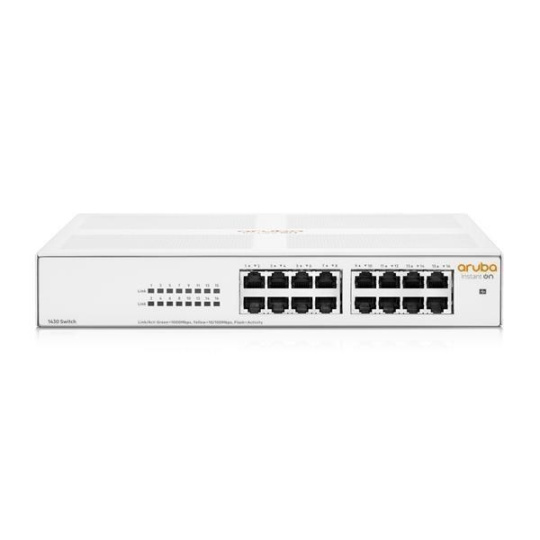

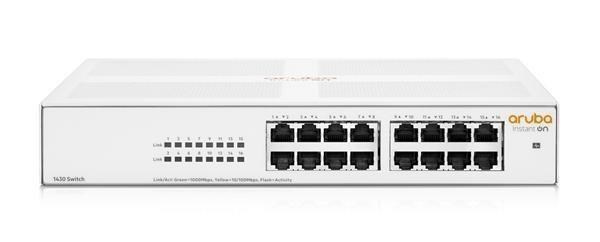

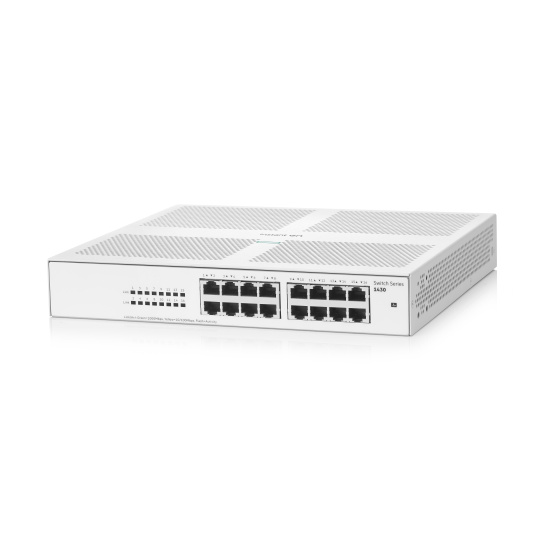

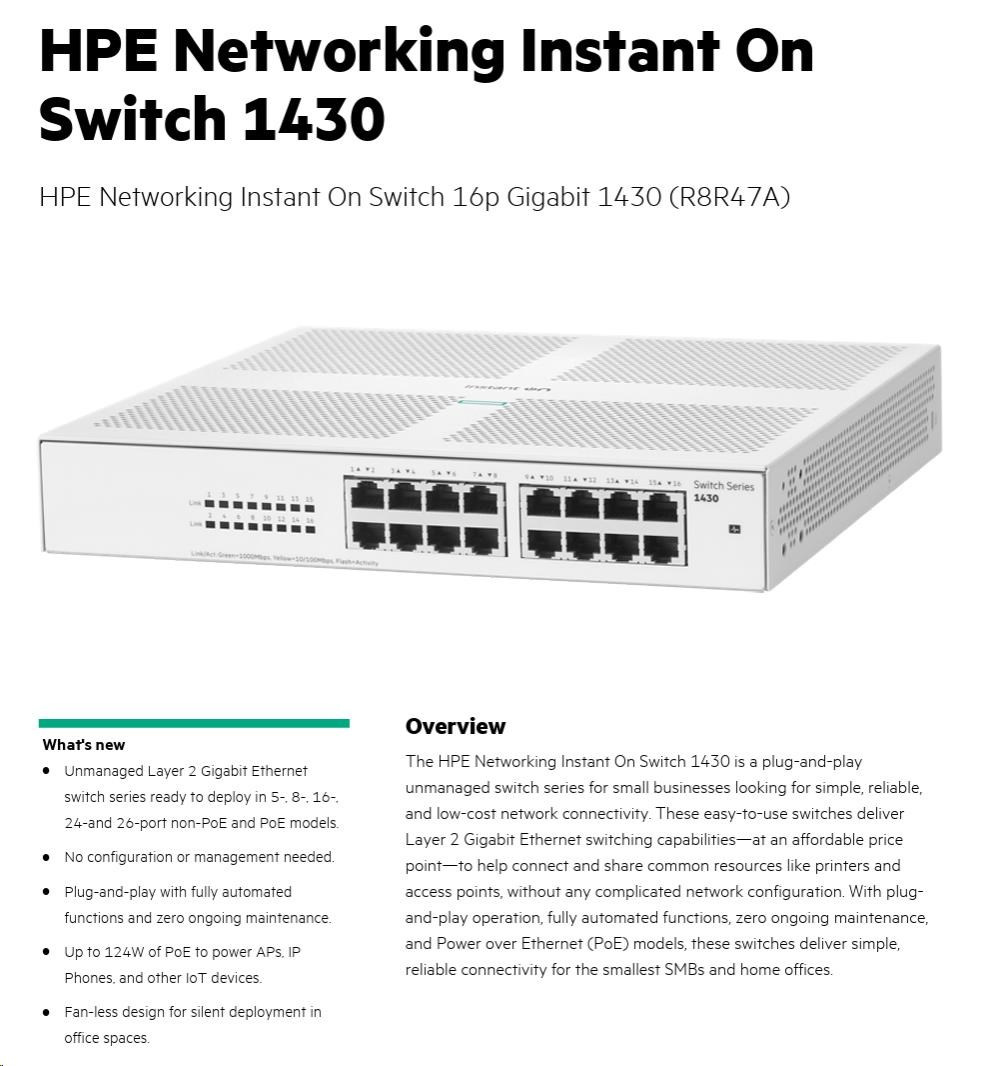

HPE Networking Instant On Switch 16p Gigabit 1430 (R8R47A)
HPE Networking Instant On Switch 16p Gigabit 1430 (R8R47A)
HPE Networking Instant On Switch 16p Gigabit 1430 (R8R47A)

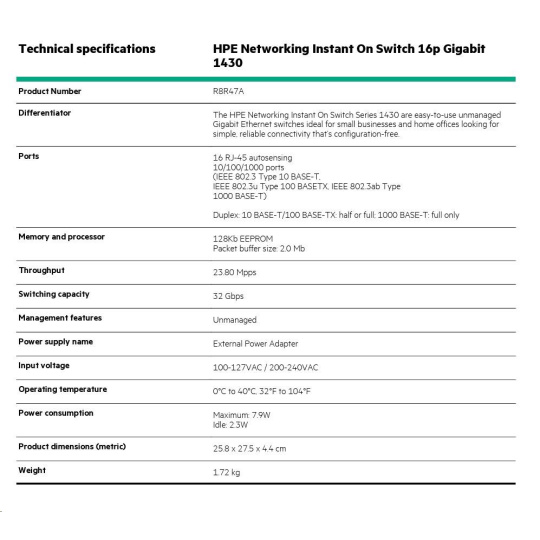

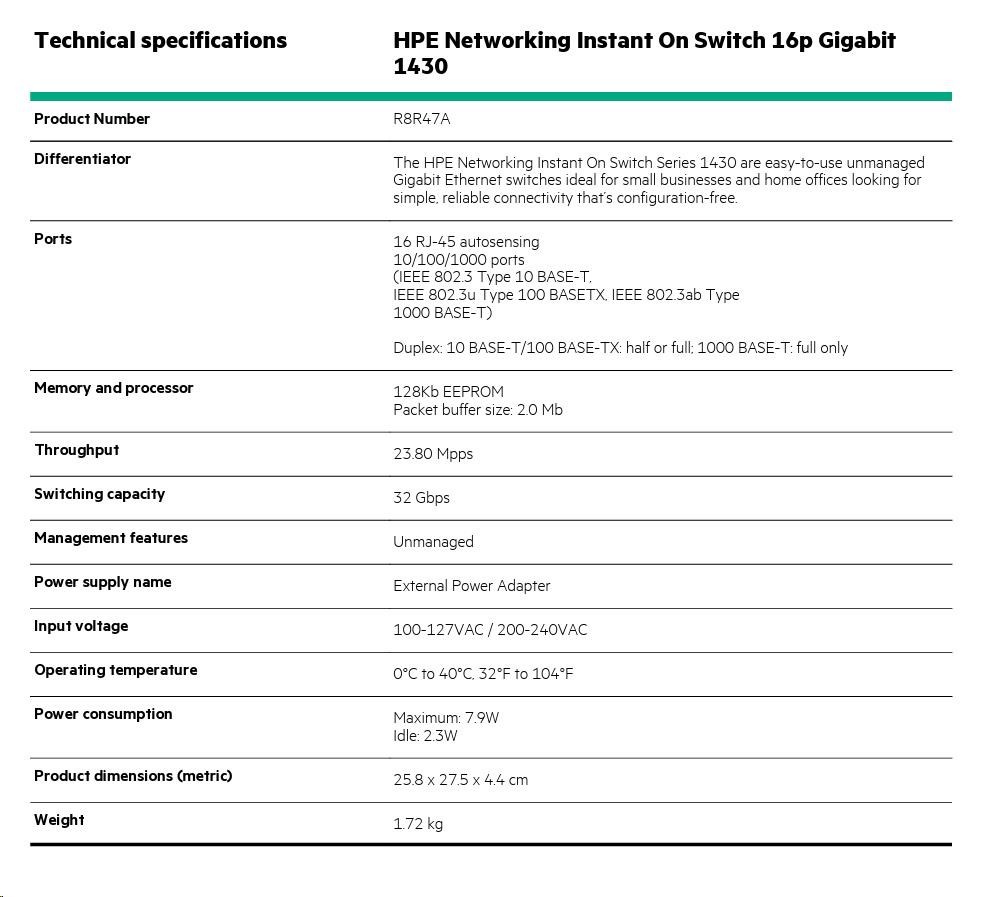

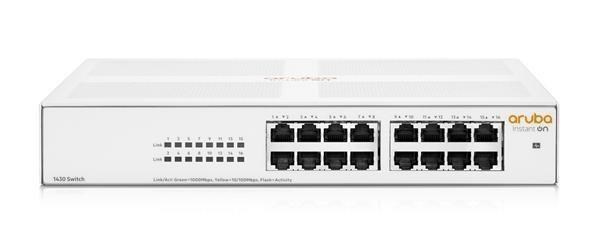

| Aruba Instant On 1430 16G Switch (R8R47A) |
| |

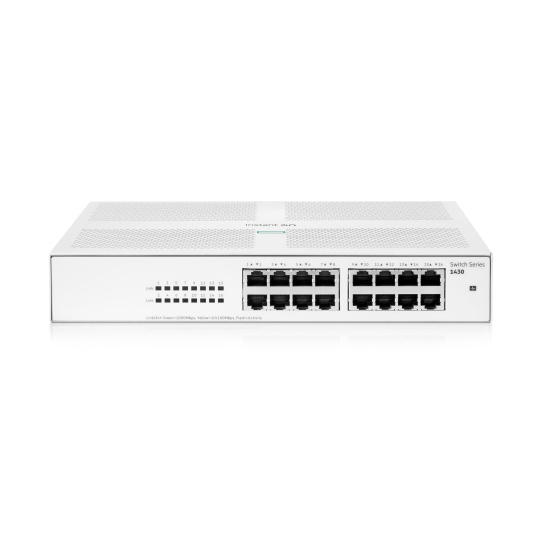

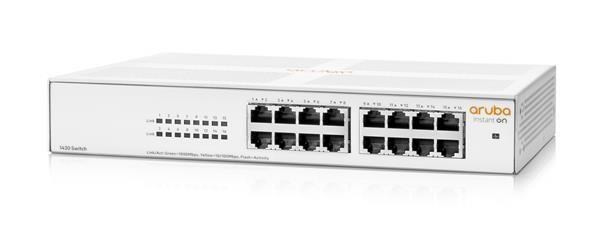

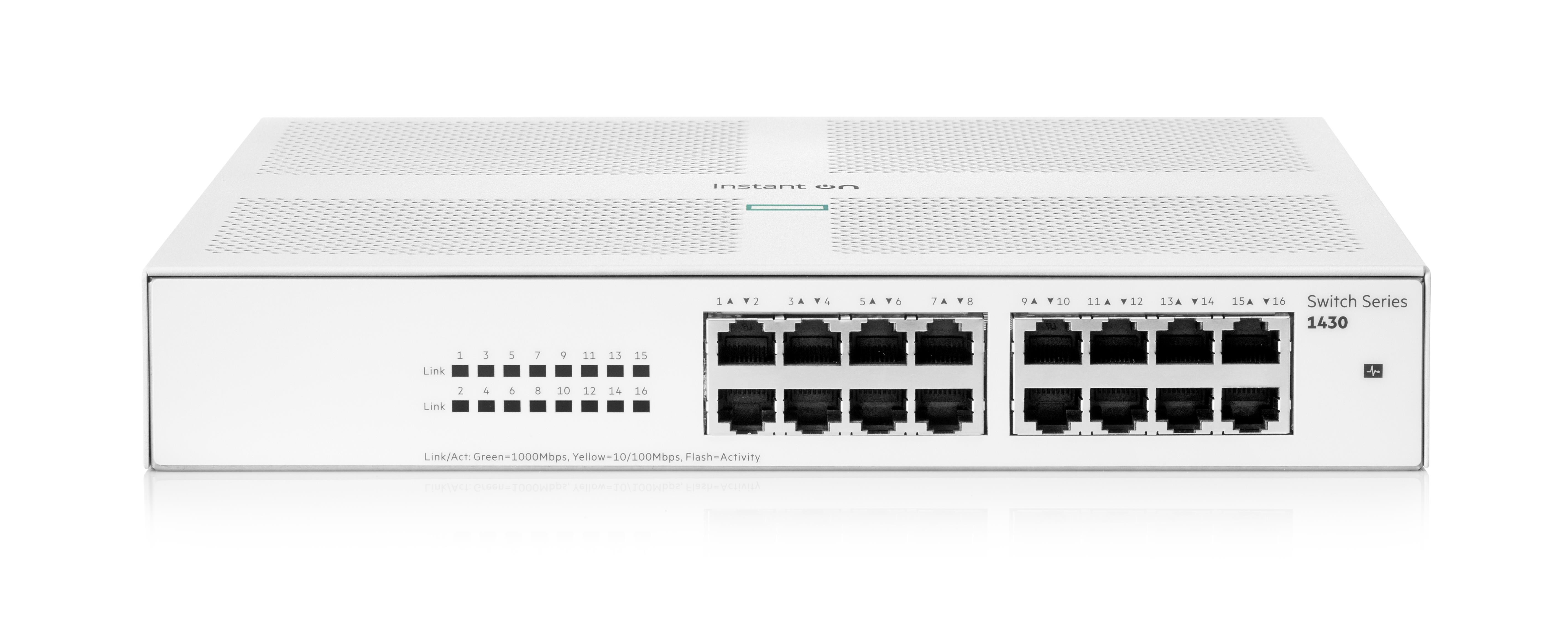

| I/O ports and slots | 16 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
| Physical Characteristics |
| |
| Dimensions | 258(d) x 275(w) x 44(h) mm |
|
| Weight | 3.80 lb (01.72 kg) |
|
| Processor and Memory | 128Kb EEPROM; Packet buffer size: 2.0 Mb |
|
| Performance |
| |
| 100 Mb latency | < 2.7 Î1Sec |
|
| 1000 Mb latency | < 1.80 Î1Sec |
|
| Throughput (Mpps) | 23.80 Mpps |
|
| Capacity | 32 Gbps |
|
| MAC address table size | 8192 entries |
|
| Reliability MTBF (years) | 269.8 |
|
| Environment |
| |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
|
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
|
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
|
| Nonoperating/ storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
|
| Altitude | up to 10,000 ft (3 km) |
|
| Acoustics | Fanless |
|
| Electrical Characteristics |
| |
| Frequency | 50Hz/60Hz |
|
| AC voltage | 100-127VAC / 200- 240VAC |
|
| Current | 0.2A/0.2A |
|
| Maximum power rating | 7.9W |
|
| Idle power | 2.3W |
|
| PoE power | - |
|

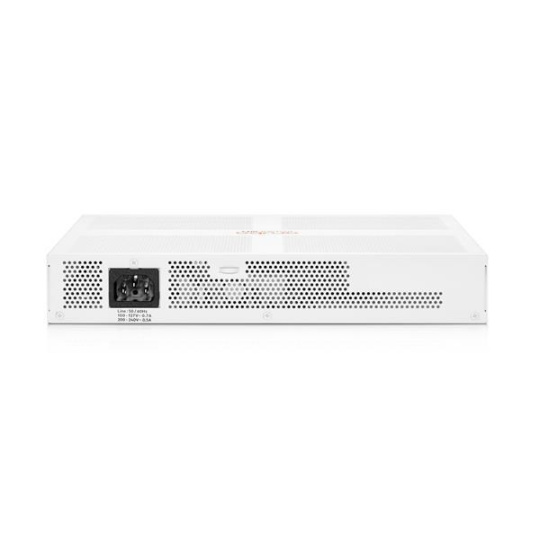

| Power Supply | Internal Power Supply |
|
| Safety |
|
|
| Emissions |
|
|
| Immunity | BS/EN 55035, CISPR 35, KS C 9835 |
|
| Generic | EN 55035, CISPR 35 |
|
| EN | EN/IEC 61000-4-2 |
|
| ESD | EN/IEC 61000-4-3 |
|
| Radiated | EN/IEC 61000-4-4 |
|
| EFT/Burst | EN/IEC 61000-4-5 |
|
| Surge | EN/IEC 61000-4-6 |
|
| Conducted | EN/IEC 61000-4-8 |
|
| Power frequency magnetic field | EN/IEC 61000-4-11 |
|
| Voltage dips and interruptions | EN/IEC 61000-3-2 |
|
| Harmonics | EN /IEC 61000-3-3 |
|
| Device Management | Unmanaged |
|
| Mounting |
| |
| Mounting positions and supported racking |
| |
.
