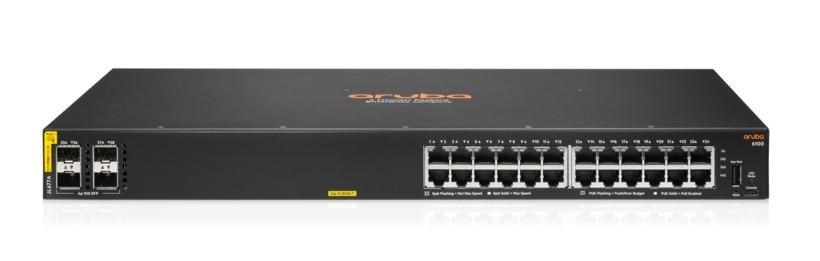

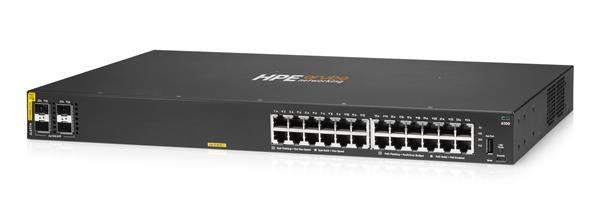

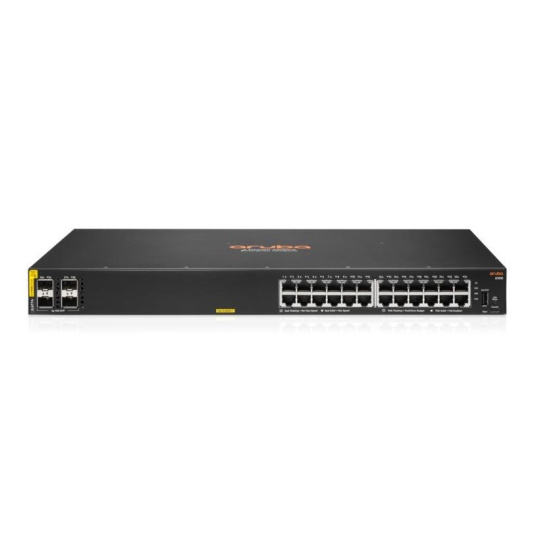

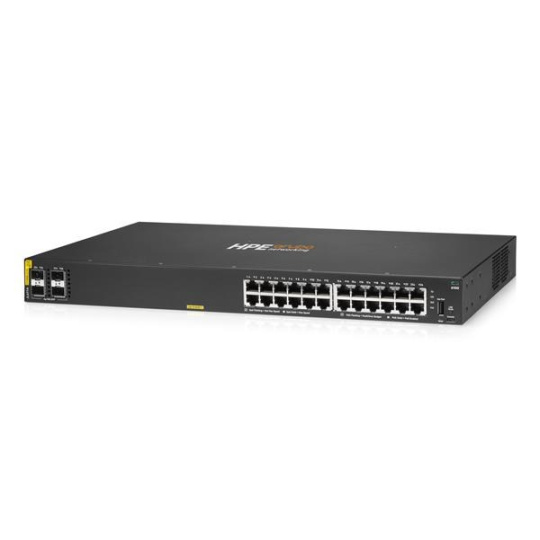

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch JL677AR RENEW
HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch JL677AR RENEW
Řada přepínačů Aruba CX 6100 je moderní rodina přístupových přepínačů základní úrovně ideální pro pobočky, střední podniky a sítě SMB. Přepínače Aruba CX 6100, navržené pro spolehlivý, jednoduchý a bezpečný přístup, poskytují pohodlné řešení kabelového přístupu pro podnikové sítě podporující IoT, mobilní a cloudové aplikace.
Technické parametry
- 24x 10/100/1000Base-T porty
- 4x 1/10G SFP porty
- 1x USB-C Console Port, 1x USB Type-A Host port
- Interní (pevný) napájecí zdroj (500 W), pevné ventilátory
- Maximální výkon: 32,7 W bez PoE, 455 W s PoE
- Vstupní napětí: 100-127 VAC / 200-240 VAC
- Přepínací kapacita: 128 Gb/s
- Propustnost: 95,2 Mpps
- Procesor: Dual Core ARM Cortex A9 @ 1016 Mhz
- Paměť a Flash: 4 GB DDR3, 16 GB eMMC
- Možnost PoE: Až 370W Class 4 PoE
- Rozměry: 4,39 x 44,2 x 26,82 cm
- Hmotnost: 4,2 kg
HPE Aruba Networking CX 6100 Switch Specifications
HPE Aruba Networking CX 6100 24G Class4 PoE4SFP+ 370W Switch
| Product Number | JL677A |
|---|---|
| Differentiator | 24x 10/100/1000BASE-T Ports 4x 1G/10G SFP+ Ports Supports IEEE 802.3af, 802.3at PoE Standards 1x USB-C Console Port 1x USB Type-A Host Port Fixed Power Supply (370W Class 4 PoE) Fixed Fans |
| Ports | 24x 10/100/1000BASE-T Ports 4x 1G/10G SFP+ Ports |
| Memory and Processor | Dual Core ARM Cortex A9 @ 1016 MHz 4 GB DDR3 RAM 16 GB eMMC Storage |
| Latency | 1 Gbps: 1.5 µs 10 Gbps: 1.8 µs |
| Throughput | 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| PoE Capability | 370W Class 4 PoE / PoE+ |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max Power (without PoE): 32.7W Max Power (with PoE): 455W |
| Product Dimensions | 4.4 x 44.2 x 26.8 cm |
| Weight | 4.2 kg |
| Specifications | Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) |
| Description | 24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply (500W) Up to 370W of Class 4 PoE Power |
| Fans | Fixed fans |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73" x 17.4" x 10.56") |
| Configuration Weight | 4.19kg (9.24 lbs) |
| Additional Specifications | |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3 16 GB eMMC |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) |
| Performance | |
| Model Switching Capacity | 128 Gbps |
| Model Throughput Capacity | 95.2 Mpps |
| Average Latency (LIFO-64- bytes packets) | 1 Gbps: 1.5 µSec , 10 Gbps: 1.8 µSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB |
| Primary Airflow | Side-to-side |
| Electrical Characteristics | |
| Frequency | 50 / 60 Hz |
| AC Voltage | 100-127 VAC / 200-240 VAC |
| Current | 4.6 A / 2.3 A |
| Power Consumption (230 VAC) | Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W |
| Safety | |
| UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 | |
| Emissions | |
| VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A | |
| Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) | |
| Lasers | |
| EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) | |
| Immunity | |
| Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / EN 55035:2017 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Mounting and Enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
| HPE Aruba Networking CX 6100 Switch Series |
| The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple, and secure access, the HPE Aruba Networking CX 6100 Switch series switches provide a convenient wired access solution for networks supporting IoT, mobile and cloud applications. CX 6100 Switch series is based on the HPE Aruba Networking ASIC architecture with the programmable AOS-CX operating system used across the entire HPE Aruba Networking CX portfolio for a more consistent, more efficient operator experience. This fully managed Layer 2 switch series has convenient built-in high-speed uplinks with up to 370W of PoE to support IoT devices, such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet workspaces. CX 6100 Switch series supports management choices that include Web GUI, CLI, cloud-based and on-premises HPE Aruba Networking Central, so you can choose the best fit for your needs today with flexibility to change without replacing hardware. With enhanced access security, traffic prioritization, and IPv6 support, the HPE Aruba Networking CX 6100 Switch series also simplifies ownership and brings peace of mind with switch software embedded with no subscription required to enable and a Limited Lifetime Warranty. |
| Key Features
|
Standard Features
| Product Differentiators AOS-CX - A modern software system The HPE Aruba Networking CX 6100 Switch Series is based on AOS-CX, a modern, database-driven operating system that is built on a modular Linux architecture. This operating system provides the following unique capabilities:
HPE Aruba Networking ASICs - Programmable innovation Based on over 30 years of continuous investment, HPE Aruba Networking's ASICs create the basis for innovative and agile software feature advancements, unparalleled performance, and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The HPE Aruba Networking CX 6100 Switch Series is based on the HPE Aruba Networking ASIC architecture. HPE Aruba Networking Central - Unified single pane of glass management Flexible cloud-based or on-premises management for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Designed to simplify day zero through day two operations with streamlined workflows. Switch management capabilities include configuration, onboarding, monitoring, troubleshooting, and reporting. HPE Aruba Networking NetEdit - Automated switch configuration and management The entire HPE Aruba Networking CX portfolio empowers IT teams to orchestrate multiple switch configuration changes for smooth end-to-end service rollouts. HPE Aruba Networking NetEdit introduces automation that allows for rapid network-wide changes and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features. Capabilities include:
Notes: A separate software license is required to use HPE Aruba Networking NetEdit. Mobility and IoT performance The HPE Aruba Networking CX 6100 Switch Series uses internally developed HPE Aruba Networking ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:
Simplify adds, moves and changes Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Instead of statically pre-configuring access ports to VLANs and maintaining the switch port to VLAN mapping, colorless ports can automatically apply the role/policy required. Enterprise-class access connectivity To address branch office and small enterprise environments, the HPE Aruba Networking CX 6100 Switch series family includes five fixed 1U models. Each switch includes built-in high speed uplinks that automatically detect the use of 1G or 10G transceivers to deliver non-blocking performance. Additional highlights:
Resiliency and availabilityTo support a highly-available Layer 2 access deployment, the HPE Aruba Networking CX 6100 Switch series supports the following features:
Quality of Service (QoS) featuresTo support congestion actions and traffic prioritization, the HPE Aruba Networking CX 6100 Switch series includes the following:
Simplified configuration and managementThe HPE Aruba Networking CX 6100 Switch series supports a choice of management interfaces including, easy to use Web GUI, industry standard. CLI, HPE Aruba Networking NetEdit, and HPE Aruba Networking Central for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Features include:
Layer 2 Switching The following Layer 2 services are supported:
Layer 3 ServicesThe following Layer 3 services are supported:
Layer 3 Routing The following Layer 3 routing services are supported:
Multicast
IPv6 capabilities
|
| Security
Convergence
|
