TP-Link CCTV switch TL-SG1210P (8xGbE, 1xGbE uplink, 1xSFP, 8xPoE+, 63W, fanless)
Popis a parametre
TP-Link CCTV switch TL-SG1210P (8xGbE, 1xGbE uplink, 1xSFP, 8xPoE+, 63W, fanless)
TP-Link switch TL-SG1210P
10portový gigabitový stolní switch s 8 porty PoE+

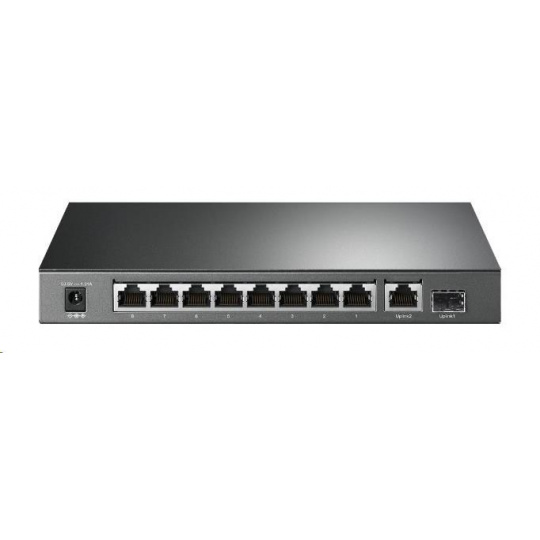

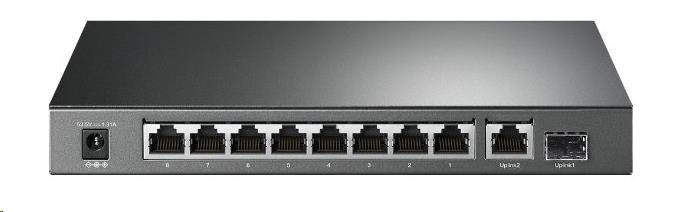

- 9 10/100/1000Mb/s RJ45 porty, 1 Gb SFP port
- Je vybaven 8 podporovanými porty PoE +, přenáší data a napájení přes jediný kabel
- Pracuje s IEEE 802.3af/at na kompatibilních zařízeních, rozšiřuje domácí a kancelářské sítě
- QoS 802.1p/DSCP umožňují plynulý přenos citlivý na latenci

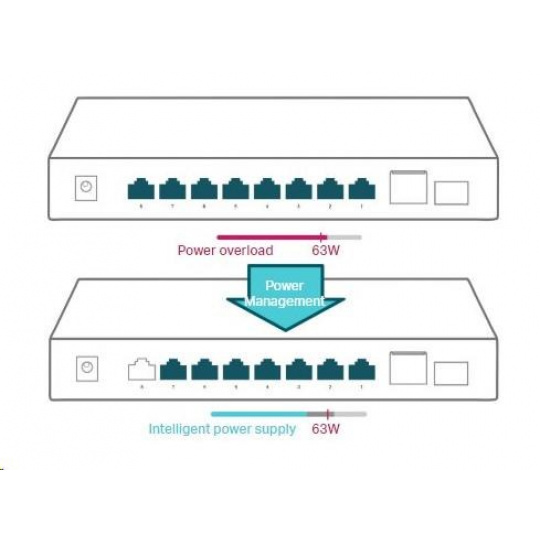

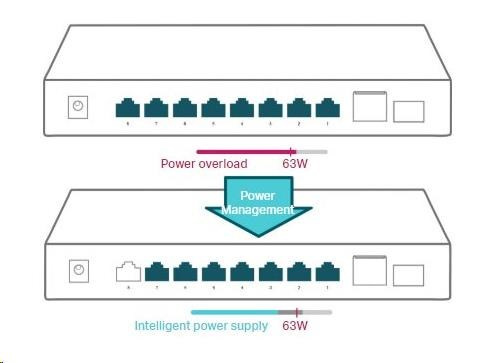

- Vysoký výkon PoE napájení, až 30 W pro každý PoE port a 63W pro všechny PoE porty
- Snadné použití bez nutnosti konfigurace a instalace
Stránky produktu: https://www.tp-link.com/cz/business-networking/unmanaged-switch/tl-sg1210p/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Backup Bandwidth | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
.
