TP-Link OMADA switch ES208GP (8xGbE,8xPoE+,64W, fanless)
Popis a parametre
TP-Link OMADA switch ES208GP (8xGbE,8xPoE+,64W, fanless)

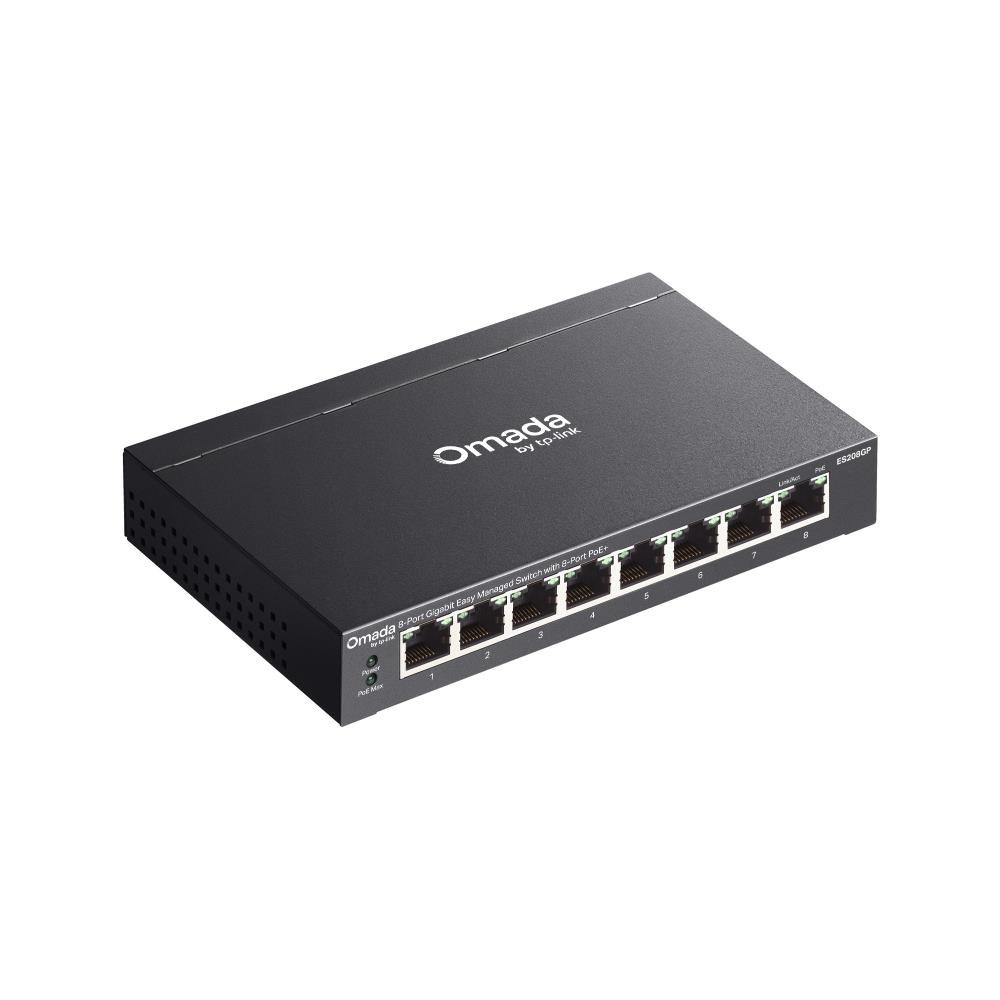

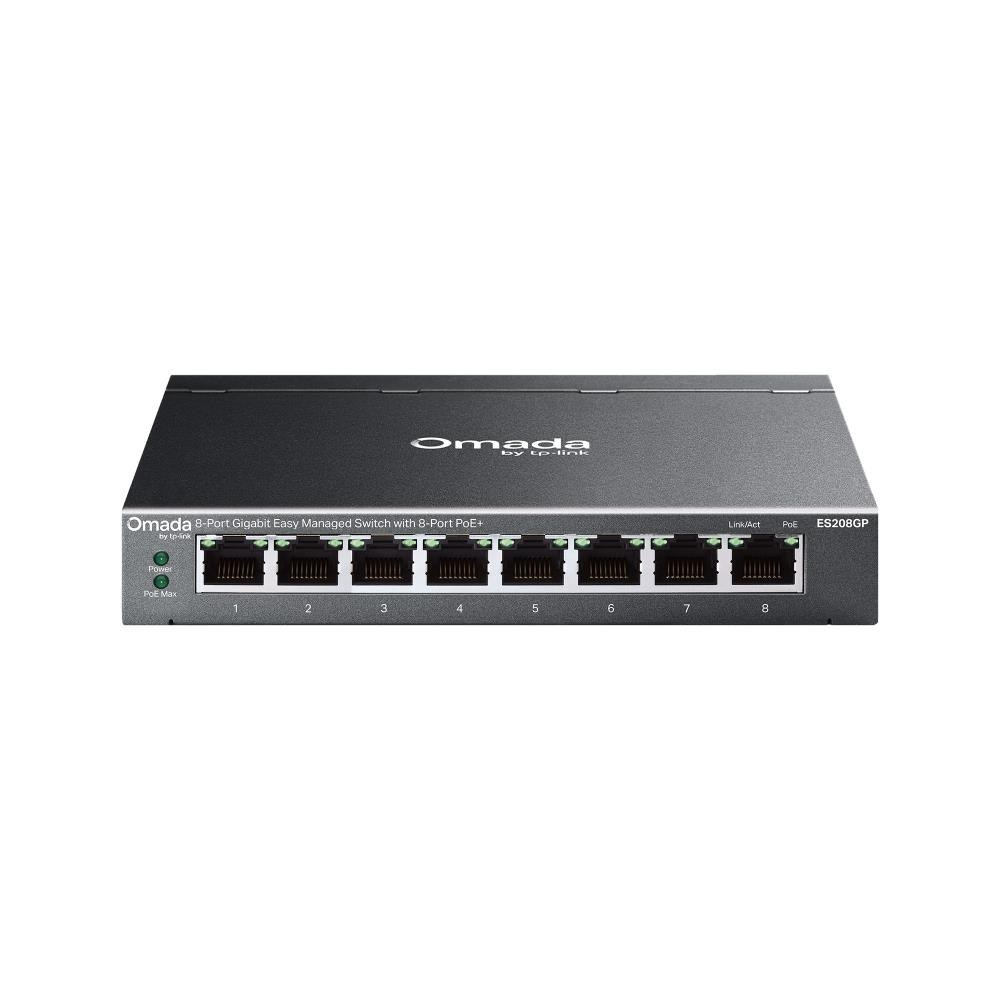

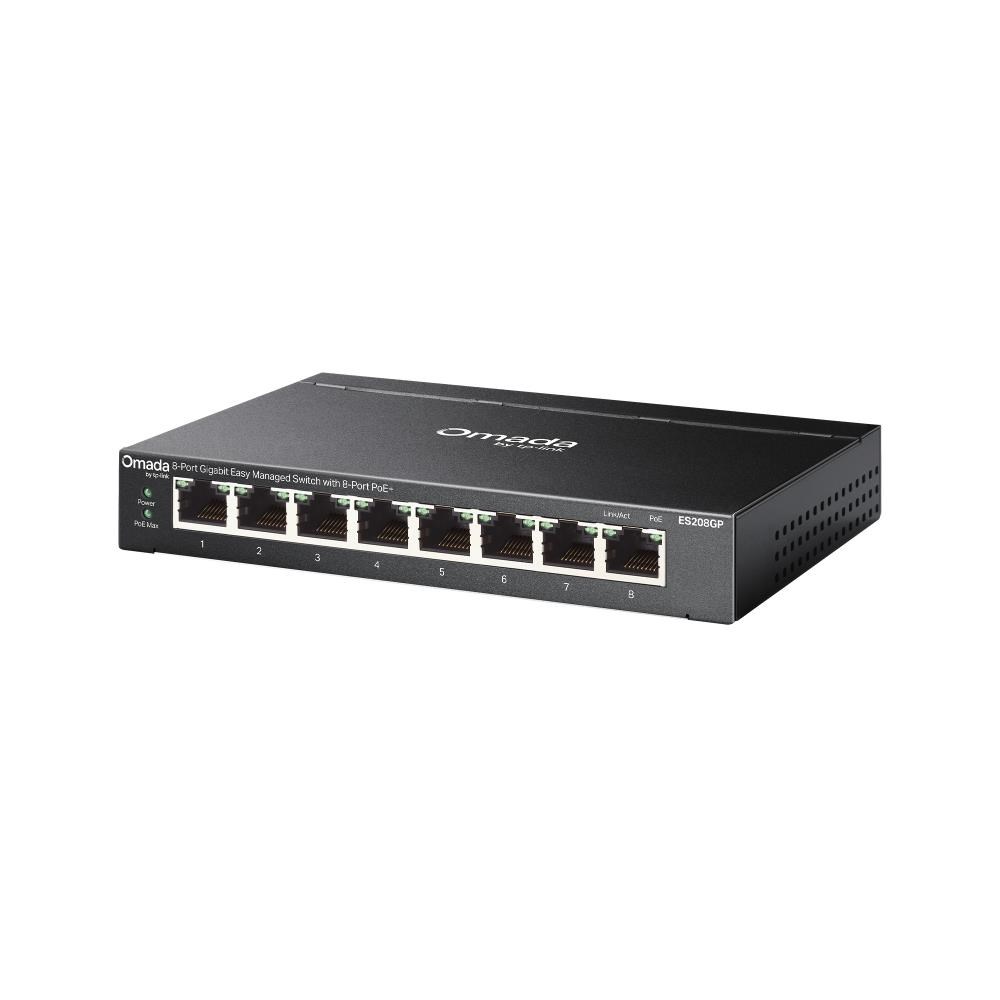

TP-Link OMADA switch ES208GP
Omada 8portový gigabitový Easy Managed switch s 8 porty PoE+
- 8 portů RJ45 10/100/1000 Mb/s (8 portů kompatibilních s PoE+ 802.3af/at)
- Celkový PoE výkon 64 W, až 30 W pro každý port PoE*
- Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
- Centralizovaná cloudová správa přes web nebo aplikaci Omada†
- Až 250 m PoE**, vzdálený restart kamery†, QoS a izolace portů pro spolehlivé sítě kamerových systémů
- Automatická prevence smyček, VLAN a IGMP Snooping
- Bezventilátorová konstrukce pro tichý provoz

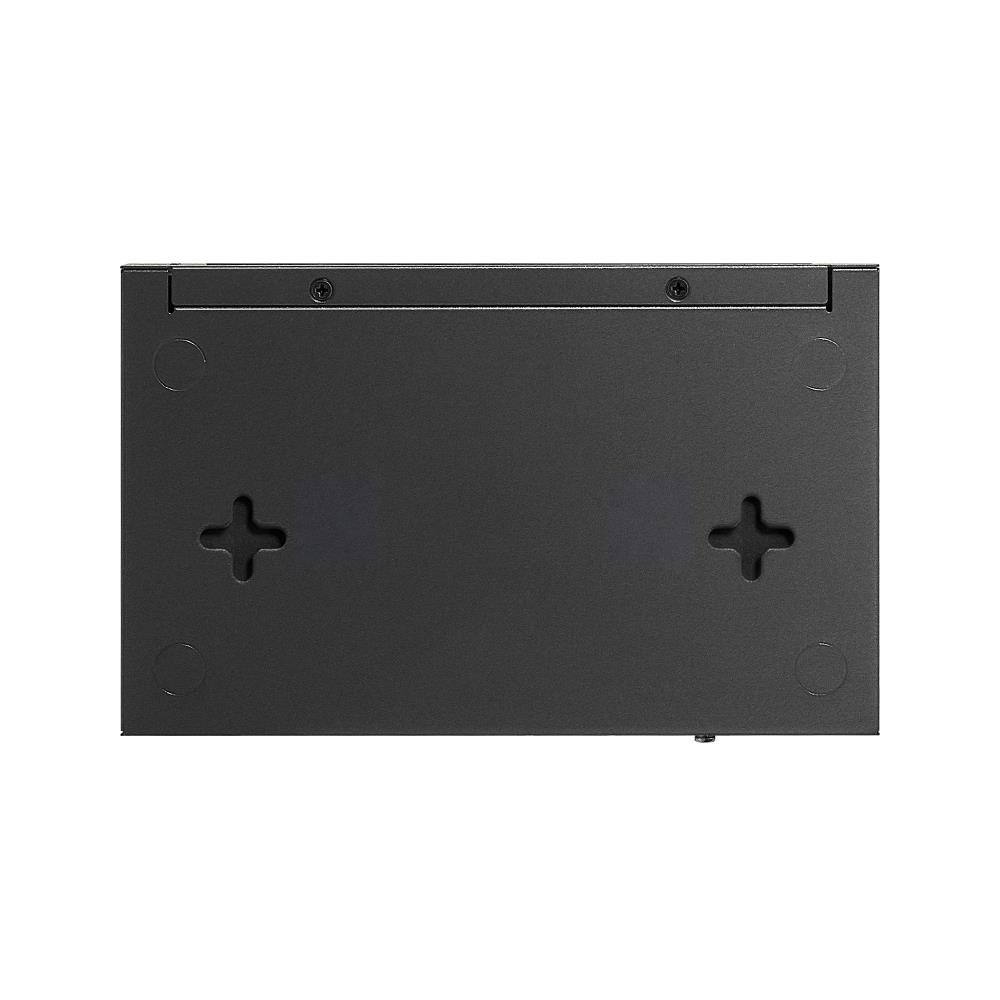

- Odolné kovové pouzdro a konstrukce pro montáž na stůl/na zeď
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-easy-managed/es208gp/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | ? |

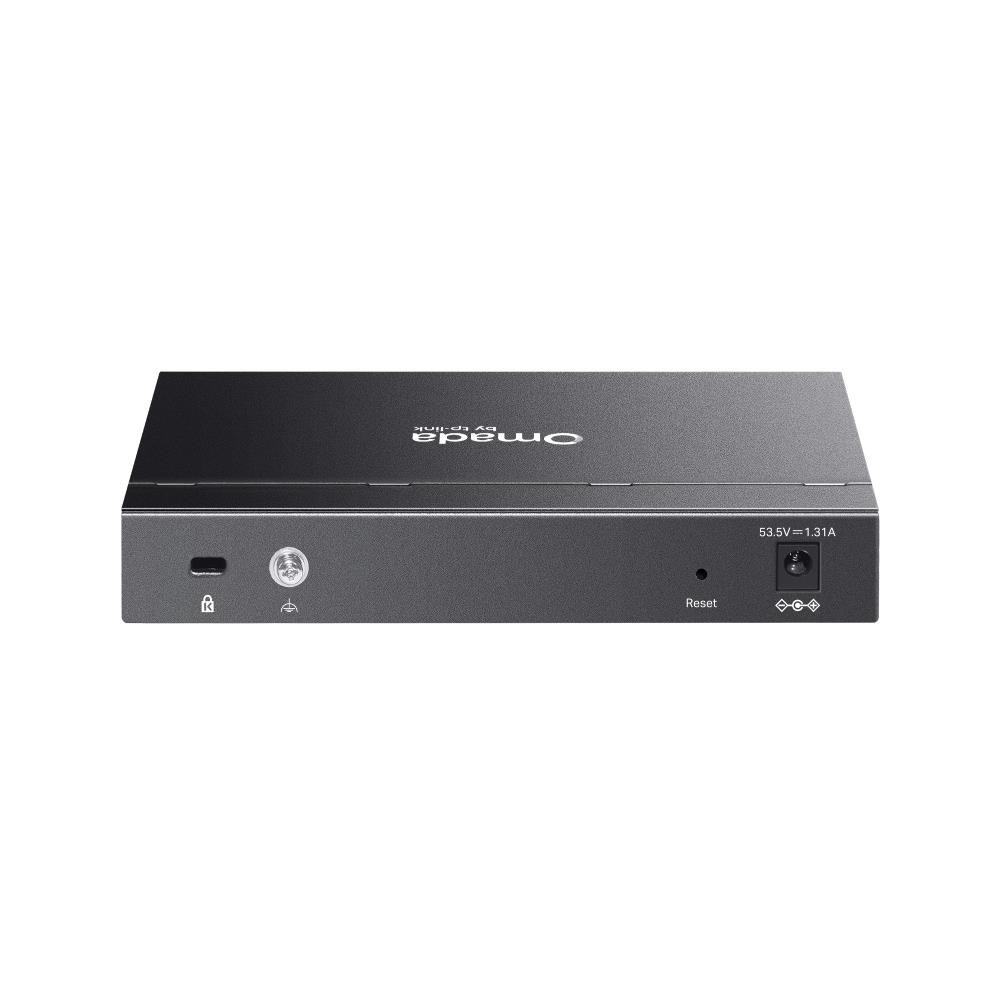

| Power Supply | DC Power Adapter (Output: 53.5V DC / 1.31A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 64W available for all PoE+ ports, 30W max per port • Remote Camera Reboot† • Up to 820ft (250m) PoE transmission distance** |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) |
| Surge Protection | Service port: ±6 kV |
| PERFORMANCE | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.904 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store and Forward |
| Management Features | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Content | • ES208GP • Power Adapter • Power Cord • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
