TP-Link OMADA switch SG2005P-PD (1xPoE++in, 4xPoE+out, 64W, fanless)
Popis a parametre
TP-Link OMADA switch SG2005P-PD (1xPoE++in, 4xPoE+out, 64W, fanless)
TP-Link switch SG2005P-PD
5portový gigabitový inteligentní switch Omada s 1 vstupním gigabitovým portem PoE++ a 4 výstupními porty PoE+
- Vzdálenost přenosu napájení PoE až 200 m: Standardní průchozí PoE zdvojnásobuje délku přenosové vzdálenosti mezi zdrojem napájení PoE a zařízeními ze 100 m na 200 m, aniž by docházelo ke ztrátě gigabitových rychlostí, a proto je skvělou volbou pro dohledové kamery a přístupové body instalované na velkou vzdálenost.

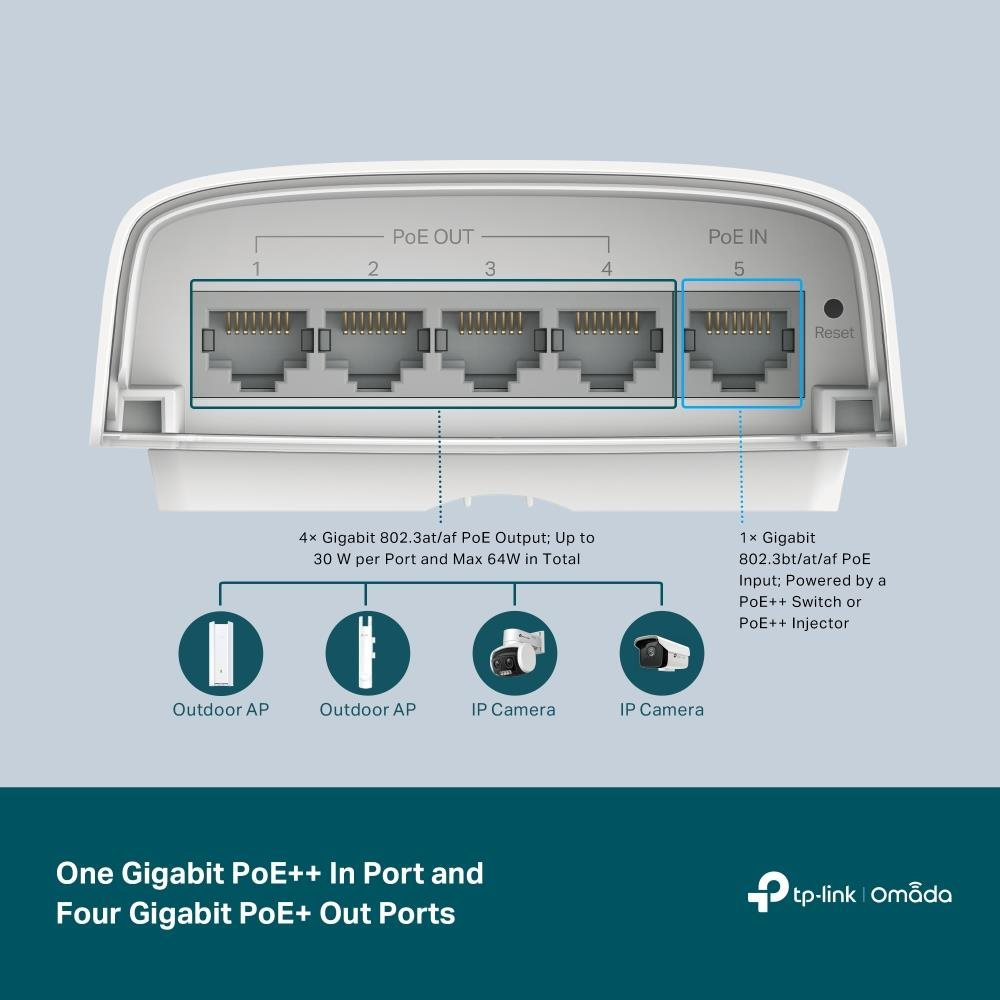

- 1 vstupní gigabitový port PoE++ a 4 výstupní porty PoE+: Podporuje rozpočet výstupního napájení PoE až 64 W / 44 W / 19 W/ 6 W při napájení 802.3bt Type 4 (90 W), respektive 802.3bt Type 3 (60 W), 802.3at a 802.3af PoE.**
- Odolnost proti povětrnostním vlivům: Pouzdro s krytím IP55 – vodotěsné, prachuvzdorné a odolné vůči UV záření. Provozní teploty od -40 do 60 °C a ochrana před bleskem 4 kV zajišťují stabilní provoz i za nepříznivých venkovních podmínkách.

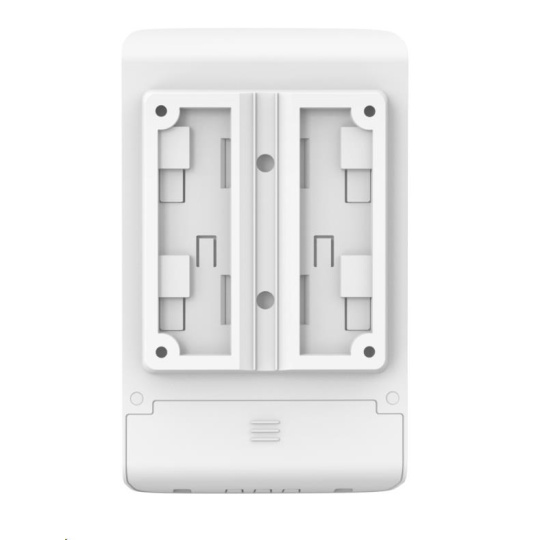

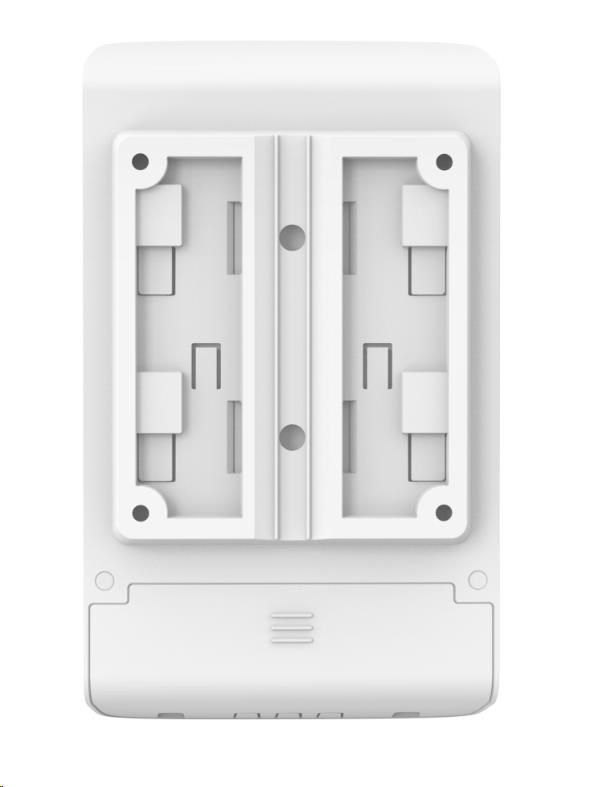

- Snadná instalace: Pomocí dodaných montážních sad zařízení snadno připevníte na stěnu nebo na stožár tak, aby dané místo vyhovovalo vašim potřebám.
- Centralizovaná cloudová správa: Integrace s platformou Omada SDN umožňuje cloudový přístup, vzdálenou správu a správu několika lokalit.
- Funkce s přidanou hodnotou usnadňují používání v místech instalace: statické směrování, seznam řízení přístupu (ACL), QoS a VLAN.
Více informací o technologii TP-Link PoE >
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/smart-switch/sg2005p-pd/
Technické specifikace
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt) • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | Obtain Power from 802.3af/at/bt PoE Source |
| PoE Ports (RJ45) | • PoE In Port: Port 5, Compliance with 802.3af/at/bt • PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE • PoE Power Budget: -64 W when powered by 802.3bt Type 4 (90 W) -44 W when powered by 802.3bt Type 3 (60 W) -19 W when powered by 802.3at -6 W when powered by 802.3af |
| Dimensions ( W x D x H ) | 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm) |
| Max Power Consumption | 71.5 W (when powered by 802.3bt Type 4 (90 W)) |
| Max Heat Dissipation | 243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W)) |
| PERFORMANCE | |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow-based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - Static Group Config • Multicast VLAN Registration (MVR) • Multicast Filtering • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| IPv6 Support | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 12 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Security | • AAA • 802.1X - Port-based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
| Omada App | Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • SG2005P-PD • Mounting Kits • Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -40 to 60 °C (-40 to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
