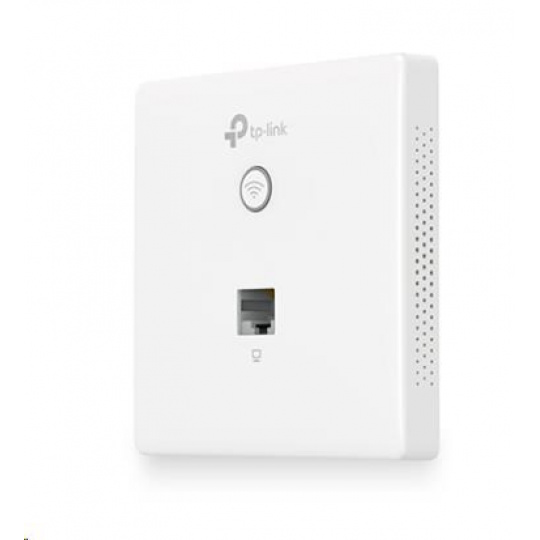

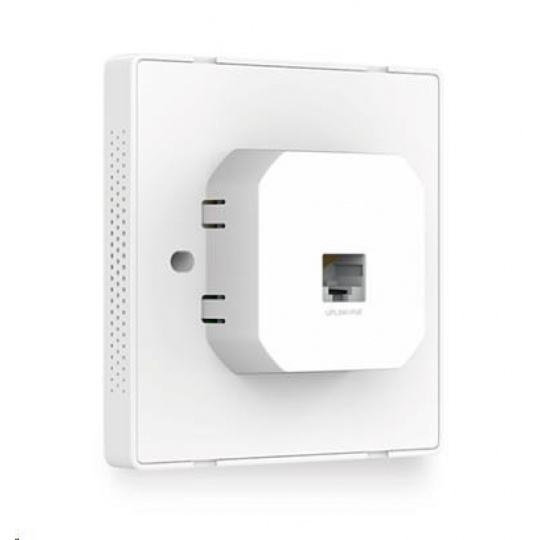

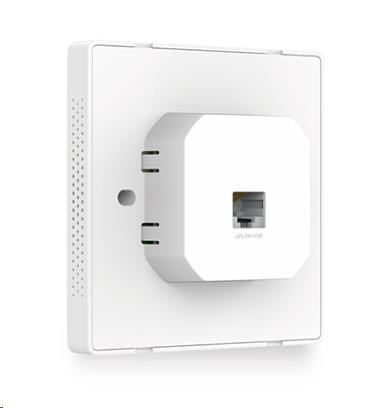

TP-Link EAP115-Wall OMADA WiFi4 AP (N300,2,4GHz,2x100Mb/s LAN,1xPoE-in)
Popis a parametre
TP-Link EAP115-Wall OMADA WiFi4 AP (N300,2,4GHz,2x100Mb/s LAN,1xPoE-in)
TP-Link EAP115-Wall
300Mbit/s bezdrátový nástěnný N access point
- Rychlá Wi-Fi: 300 Mb/s v pásmu 2,4 GHz.
- Dva porty: 2x 10/100M Ethernet porty (1× uplink + 1× downlink).
- Integrace do Omada SDN: Centralizovaná cloudová správa a inteligentní monitoring.
- Centralizovaná správa: Cloudový přístup a aplikace Omada pro pohodlnou a jednoduchou správu odkudkoliv.

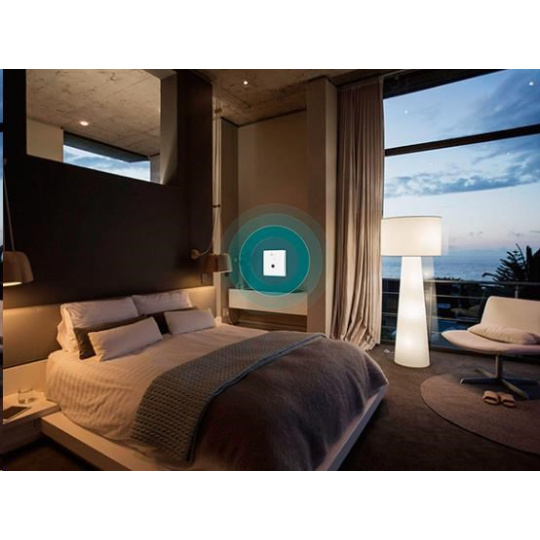

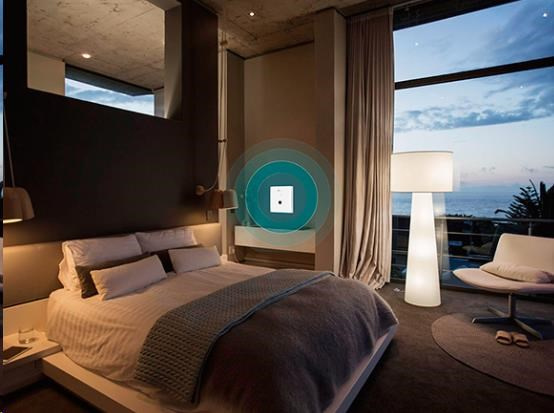

- Elegantní vzhled: Tenký design s tloušťkou pouhých 11 mm, stejnou velikostí a tvarem jako čelní panel vypínače nebo zásuvky, který se perfektně hodí do každé místnosti.
- Jednoduchá instalace a podpora PoE: Konstrukce s jednoduchou instalací, kompatibilní s 86 mm & standardní elektroinstalační krabicí, podpora 802.3af PoE napájení.
- Bezpečná síť pro hosty: Včetně několika možností ověřování (SMS / Voucher atd.) a řady technologií pro zabezpečení bezdrátové sítě.
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-access-point/eap115-wall/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • Uplink: 1× 10/100 Mbps Ethernet Port • Downlink: 1× 10/100 Mbps Ethernet Port |
| Physical Security Lock | No |
| Button | • LED/Wi-Fi Button • RESET |
| Power Supply | PoE (IEEE 802.3af) |
| Power Consumption | 2.8 W |
| Dimensions ( W x D x H ) | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
| Antenna Type | Internal 2× 1.8 dBi Omni |
| Mounting | Wall Plate Mounting |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4 GHz |
| Signal Rate | • 11n: Up to 300 Mbps (dynamic) • 11g: Up to 54 Mbps (dynamic) • 11b: Up to 11 Mbps (dynamic) |
| Transmit Power | CE: ?20 dBm (2.4 GHz) |
| Wireless Functions | • Multiple SSIDs (Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | • 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall • Installation Guide • Mounting Screw |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
