TP-Link EAP110 OMADA WiFi4 AP (N300,2,4GHz,1x100Mb/s LAN,1xPoE-in)
Popis a parametre
TP-Link EAP110 OMADA WiFi4 AP (N300,2,4GHz,1x100Mb/s LAN,1xPoE-in)
TP-Link EAP110
Bezdrátový access point 300 Mb/s standardu N pro montáž na strop
- Řídicí software EAP umožňuje správcům snadno spravovat stovky access pointů EAP
- Podpora pasivního napájení přes ethernet (PoE) pro pohodlnou instalaci až do vzdálenosti 100 metrů
- Konstrukce pro snadné uchycení umožňují snadnou instalaci na každou stěnu nebo strop
- Kaptivní portál poskytuje pohodlný způsob autentizace hostů bezdrátové sítě
- Funkce Multi-SSID rozděluje bezdrátovou síť na několik sítí pro několik uživatelů
- Zabezpečení Wi-Fi na podnikové úrovni přispívá ke snížení bezpečnostních hrozeb.
- Podporuje VLAN pro lepší správu sítě
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-sdn-access-point/eap110/
Technické specifikace| HARDWARE FEATURES | |

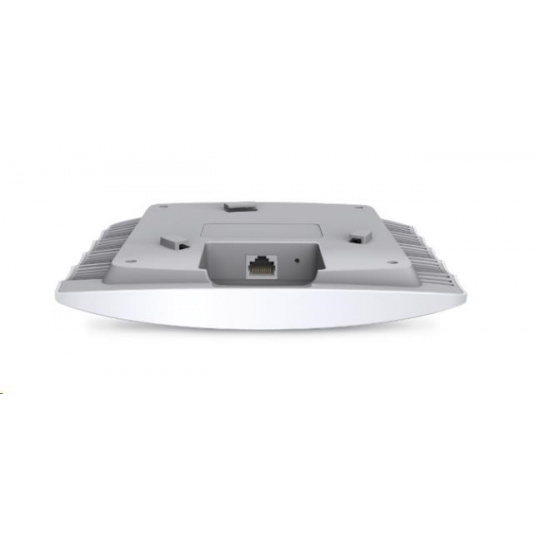

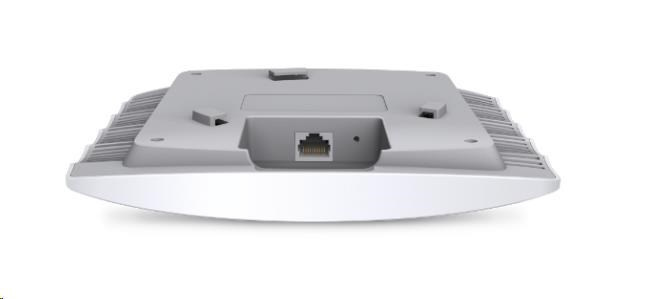

| Interface | Fast Ethernet (RJ-45) Port *1(Support Passive PoE) |
| Button | Reset |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 2.8W |
| Dimensions ( W x D x H ) | 7.5×6.8×1.2 in (189.4×172.3×29.5mm) |
| Dimensions | 7.5×6.8×1.2 in. (189.4×172.3×29.5mm) |
| Antenna Type | Internal 2* 4dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | CE: ?19dBm(EIRP) FCC: ?21dBm |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Omada Controller Software | Yes |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Installation Guide |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
