GIGABYTE MB Sc LGA1700 H610M H DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX

Socket (pätica):Socket 1700; Chipset:Intel H610; Typ pamäťového modulu:DDR4; Formát:micro ATX; Podpora RAID:Bez RAID podpory; PCI express 16x:1; Integrovaná grafická karta:Ano (CPU); Integrovaná LAN karta:1; Ďalšie rozhranie:M.2.... viac
Technologie paměti RAM
DDR4
Socket (patice)
Socket 1700
Formát
micro ATX
Integrovaná grafická karta
Ano (CPU)
Chipset
Intel H610
PCI express 16x
1
Integrovaná LAN karta
1
Podpora RAID
Bez RAID podpory
Další rozhraní
M.2
Bežná cena: 100  (-8%)
76.67 € bez DPH
Na dotaz
92 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 524521
Kód dod.: H610M H DDR4
Záruka: 36 Měsíc(ů)
Výrobca: Gigabyte
Popis a parametre

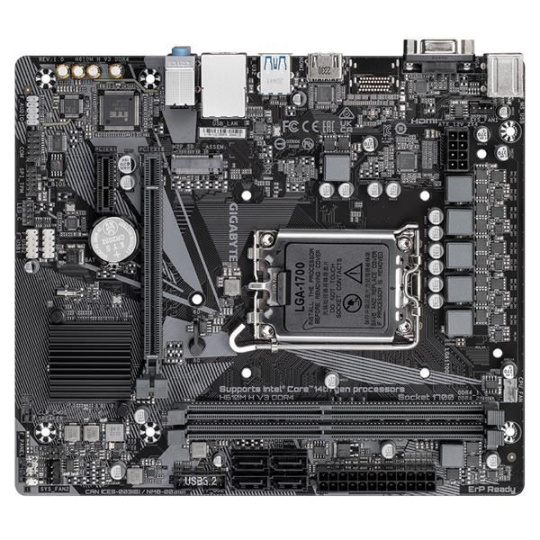

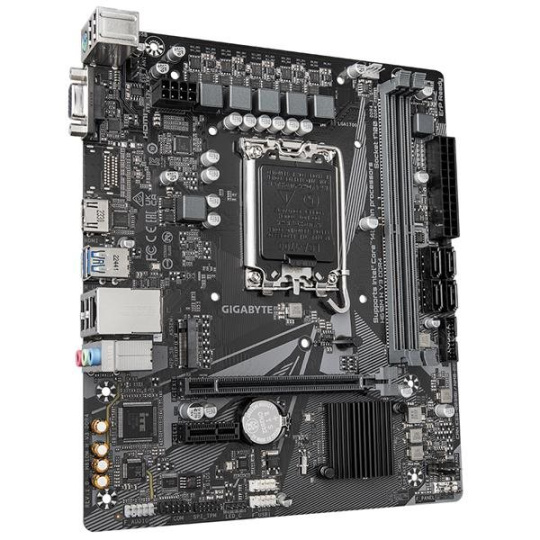

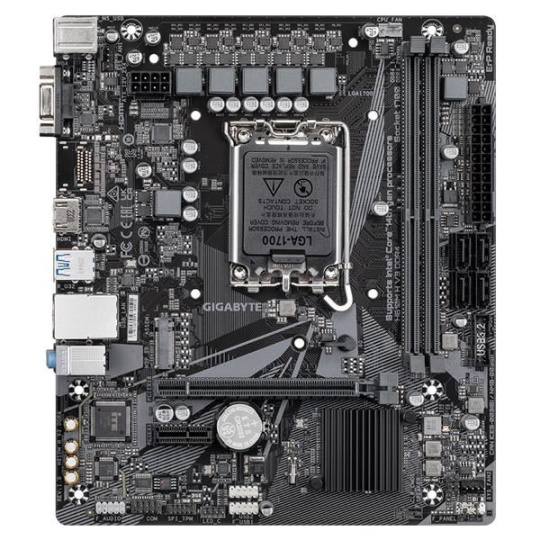

GIGABYTE MB Sc LGA1700 H610M H DDR4, Intel H610, 2xDDR4, 1xHDMI, 1xVGA, mATX

H610M H DDR4

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed , Anti-Sulfur Resistor, Smart Fan 6

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 6+1+1 Hybrid Digital VRM Design
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
  • * Actual support may vary by CPU.

CPU

LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Chipset

Intel® H610 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

Intel® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage Interface

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

USB

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

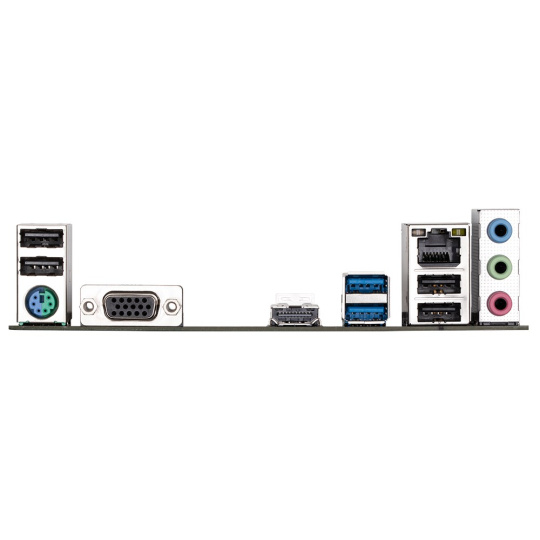

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 23.0cm x 21.5cm

.
