FRACTAL DESIGN skříň Meshify 2 Black TG Light Tint, USB 3.1 Type-C, 2x USB 3.0, bez zdroje, E-ATX

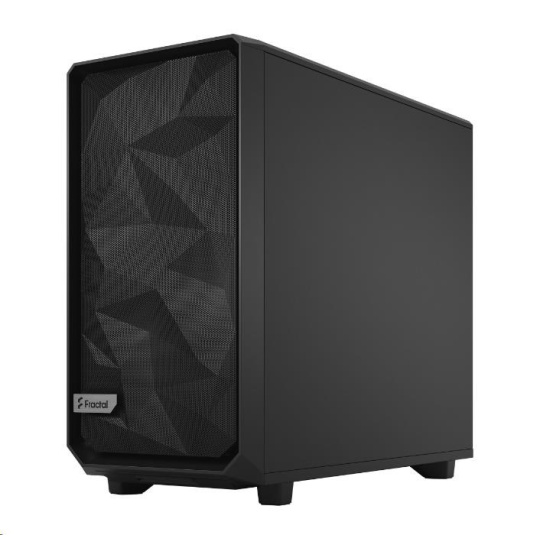

Meshify 2
The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

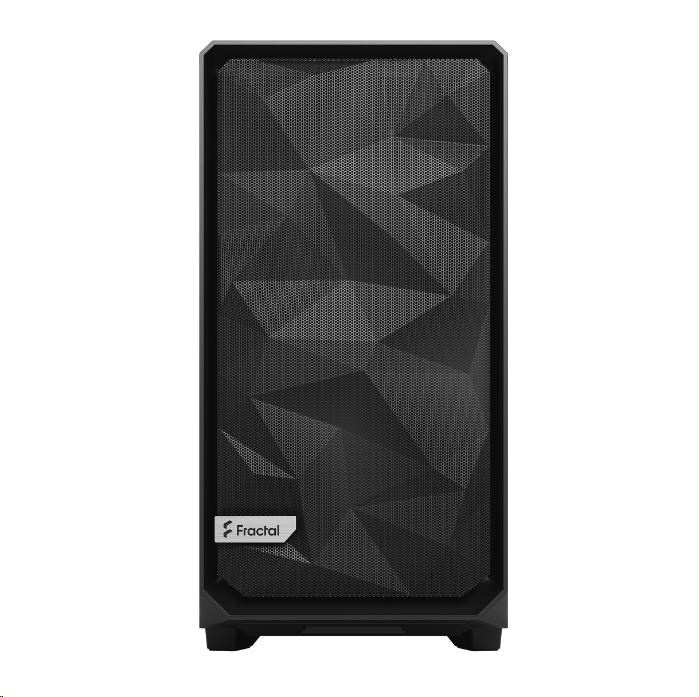

- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
TECHNICAL SPECIFICATIONS
3.5"/2.5" Universal drive mounts | 6 included, 14 positions total + 1 Multibracket |
Dedicated 2.5" drive mounts | 2 included, 4 positions total |
Expansion slots | 7+2 |

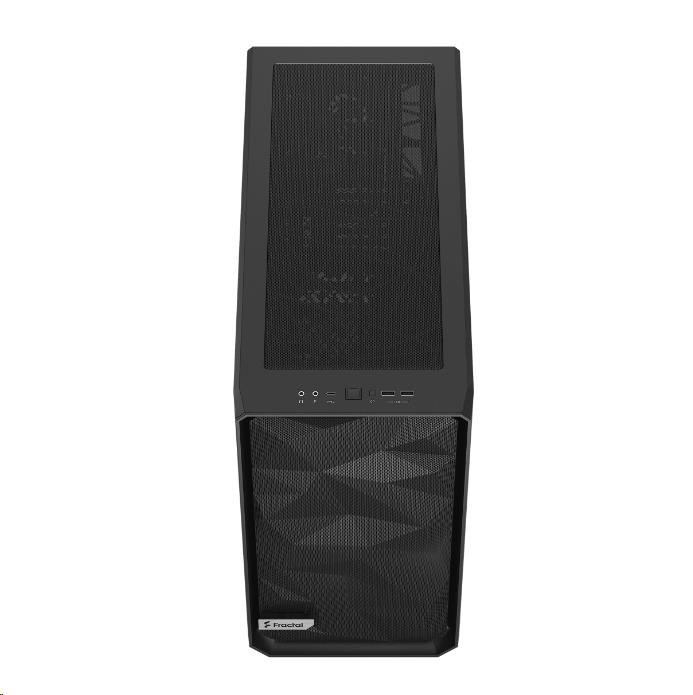

Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts | 9x 120/140 mm |
Front fan | 3x 120/140 mm (2x Dynamic X2 GP-14 included) |
Top fan | 3x 120/140 mm |
Rear fan | 1x 120/140 mm (1x Dynamic X2 GP-14 included) |
Bottom fan | 2x 120/140 mm |
Dust filters | Top, front and bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD, SSD and PSU brackets |
Left side panel | Steel |
Right side panel | Steel |
Compatibility | |
Motherboard compatibility | E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
Power supply type | ATX |
Front radiator | Up to 360/280 mm |
Top radiator | Up to 360/420 mm |
Rear radiator | 120 mm |
Bottom radiator | Up to 240/280 mm |
PSU max length | 250 mm (with HDD cage installed) |
GPU max length | Storage layout: 290 mm - Open layout: 470 mm (445 mm w/ front fan) |
CPU cooler max height | 185 mm |

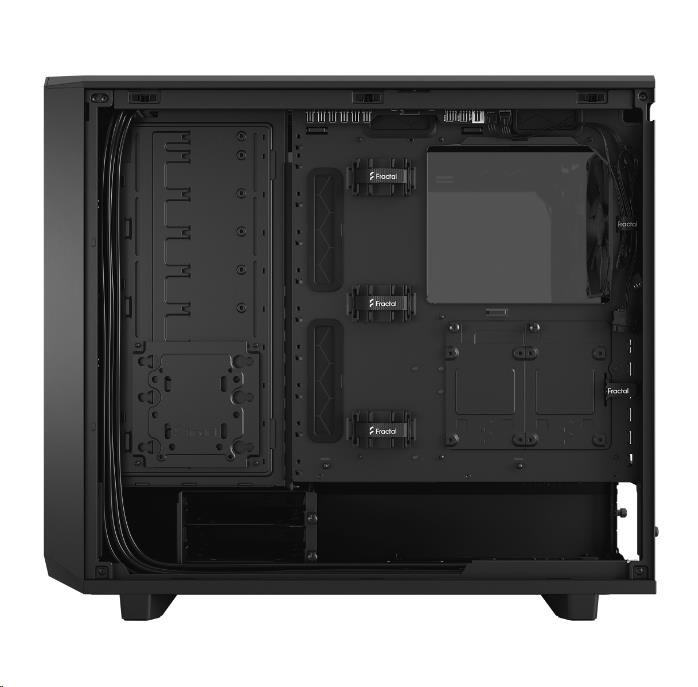

Cable routing space | 30 mm |
Dimensions | |
Case dimensions (L x W x H) | 542 x 240 x 474 mm |
Case dimensions w/o feet/protrusions/screws | 541 x 240 x 454 mm |
Net weight | Solid: 10.1 kg TG: 10.5 kg |
Package dimensions (L x W x H) | 634 x 542 x 324 mm |
Gross weight | Solid: 12.8 kg TG: 13.2 kg |
Volume | 58.95 liters |
.
