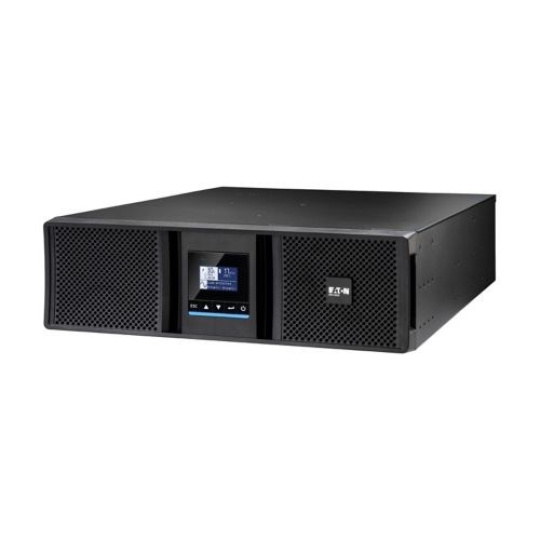

Eaton 9SX 8000i RT4U G2

Name: Eaton 9SX 8000i RT4U G2
Brand: Eaton
SKU: 149593
Price: 5540 EUR
Availability: OutOfStock

zadarmo

-2%

Kód: 149593

Kód dod.: 9SX8KIRT4UG2

EAN: 3553340710681

Záruka: 24 Měsíc(ů)

Výrobca: Eaton

Pridať do obľúbených Pridať do porovnania Otázka pre predajcu Stráženie produktu

Popis a parametre

Eaton 9SX 8000i RT4U G2

General specifications

Product Name	Eaton 9SX Gen2 UPS
Catalog Number	9SX8KIRT4UG2
EAN	3553340710681
Product Length/Depth	725 mm
Product Height	174 mm
Product Width	440 mm
Product Weight	78.8 kg
Warranty	2 year
Compliances	LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM KCC BSMI
Model Code	Eaton 9SX 8000i RT4U G2

Technické údaje produktu

Special features	Double conversion topology Constantly regulates voltage and frequency Up to 97.2% Energy efficient, Energy Star qualified, reduce energy and cooling costs 4U form factor Provides more real power (watts) to protect more equipment with a unity power factor Internal bypass allows service continuity in case of UPS fault Graphical LCD display Rackmounting kit delivered as standard Hot swappable batteries
Topology	Online/Double-conversion
Form factor	Rack/tower
Rack size	4U
Construction type	482.6 mm (19 inch) device
Color	Black
VA rating	8 kVA
Wattage	8 kW
Rack mounting kit	Yes
Package contents	UPS (3) cable glands (2) IEC-IEC output cables (1,2m) USB cable (1,8m) Supports for tower mounting Rack-mounting kit with brackets and slides for UPS Safety instructions Quickstart guide
Internal bypass	Yes
Hot swap power	No
Auto shutdown function	Yes
Primary frequency - max	70 Hz
Primary frequency - min	40 Hz
Input connection	Hardwired/fixed connection
Input nominal voltage	230V default (200/208/220/230/240V)
Nominal frequency	50/60 Hz
Input frequency range	40-70 Hz
Input power factor	>.99

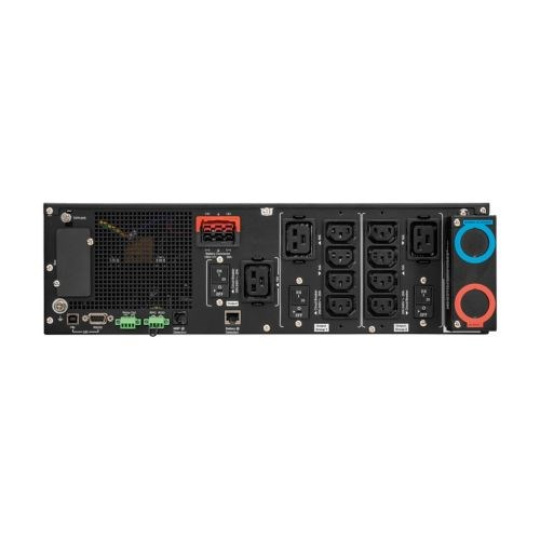

Receptacle	(8) C13, (4) C19, Hardwired
Number of Outputs C13	8
Number of Outputs C19	4
Number of outputs hardwired	1
Output waveform	Sine wave
Voltage	230V
Output nominal voltage	230V default (200/208/220/230/240V)
Feed type	1
Voltage type	AC

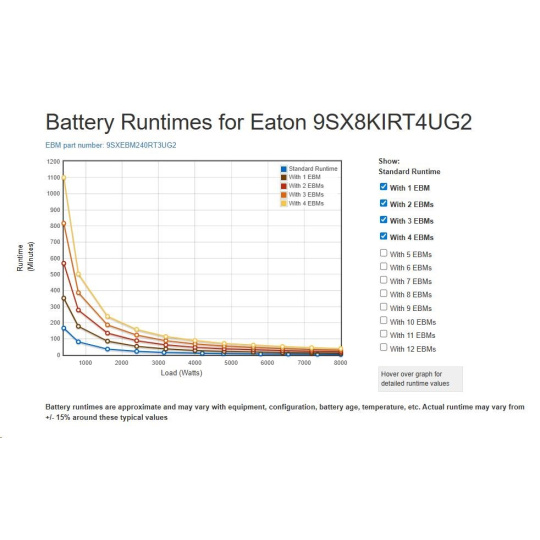

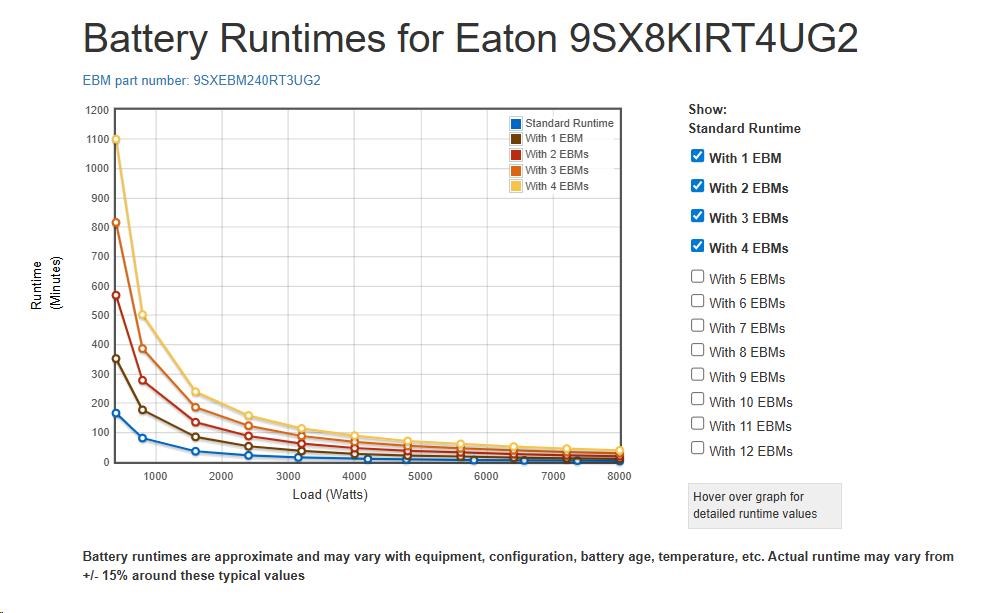

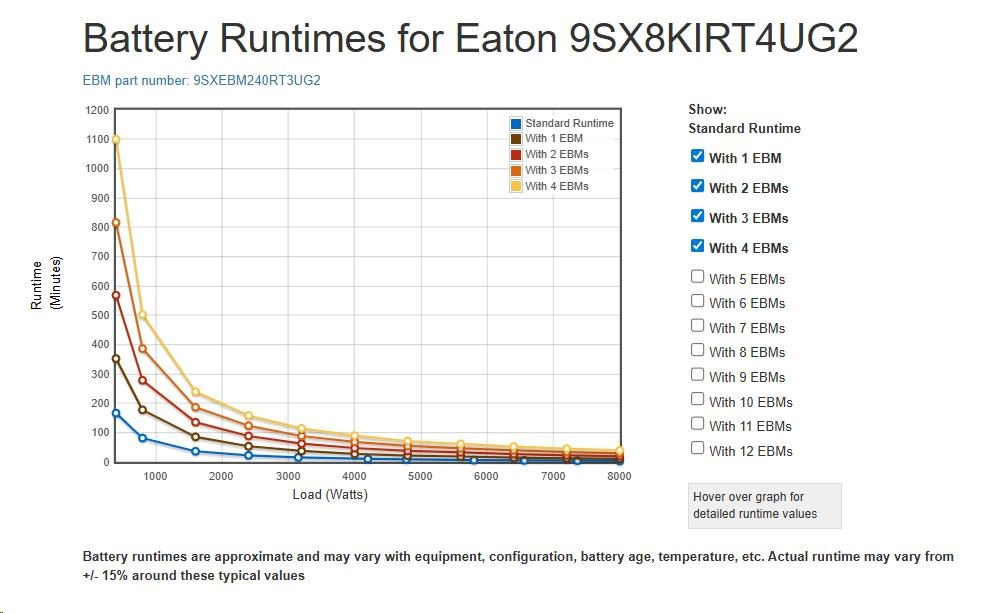

Runtime graph
Battery management	ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units
Battery replacement	Hot-swappable internal batteries and extended battery modules (EBMs)
Battery rating	12 V / 7 Ah
Battery type	Sealed, lead-acid
Extended battery capability	Yes
Runtime at half load	10.6 min
Communication	USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Mini-terminal block for dry contacts outputs (2 contacts)
Expansion slots	One slot
Ethernet interface	No
Includes network card	No
Software compatibility	Eaton Brlightlayer Software suite
User interface	Multilingual graphical LCD display
Type of interface	Other
Potential free switch contact	Yes
Altitude	3000 m
BTU Rating	Online: 728 BTU/hr
Noise level	<37 dB at 1 meter
Relative humidity	0-95% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
Input voltage - max	276 V
Input voltage - min	100 V
Output voltage - max	240 V
Output voltage - min	200 V
Secondary frequency - max	60 Hz
Secondary frequency - min	50 Hz
Battery quantity	20
Efficiency at max. load	97.3
Efficiency (eco-mode)	99.5
Input voltage range	176-276 V (100-276 V with derating)
Max number of battery packs	12
Output frequency	50/60 Hz
Output power factor	1
Output voltage range	200/208/220/230/240 V +/- 1%
Phase (input)	1
Phase (output)	1
Runtime at full load	3.5 min
Voltage distortion output (linear load) - max	1
Communication interface	USB RS232
Power consumption	214 W
