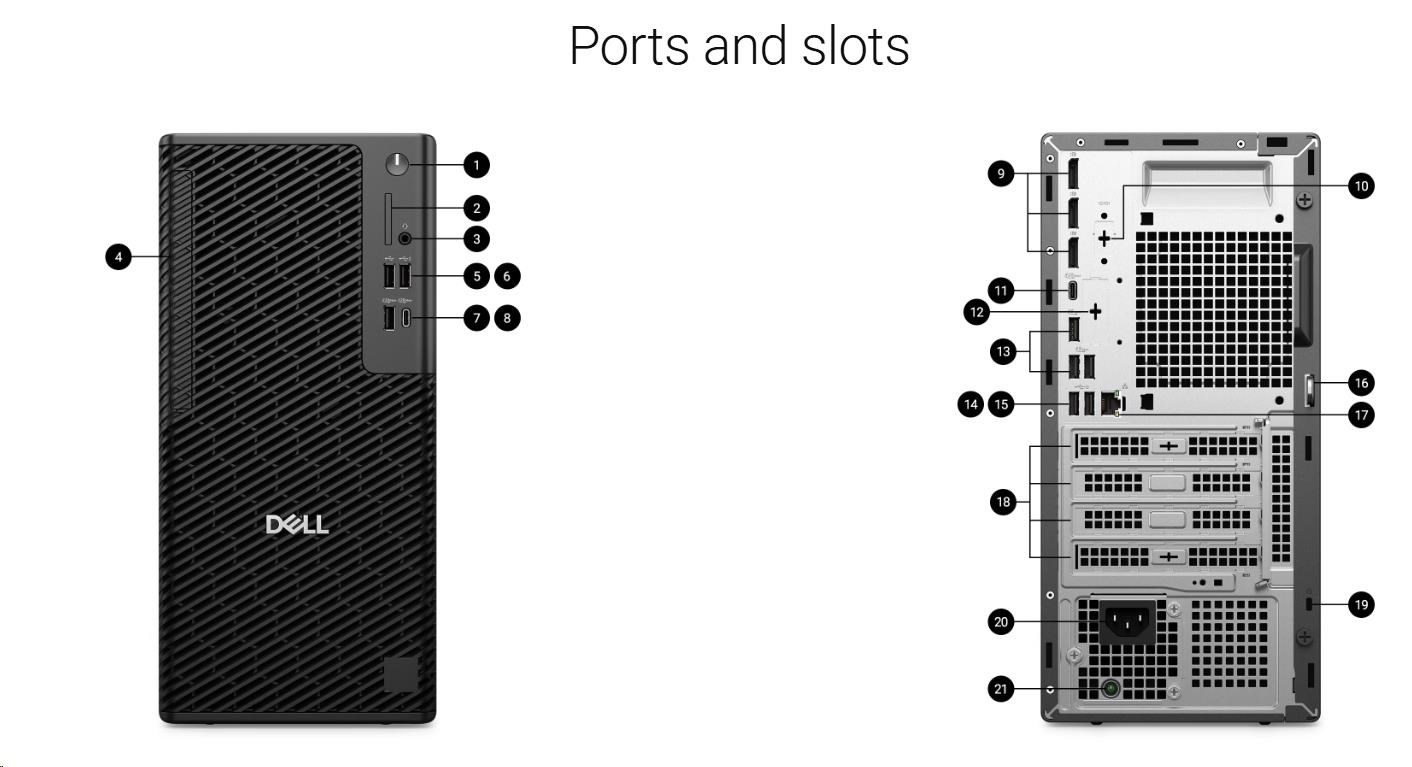

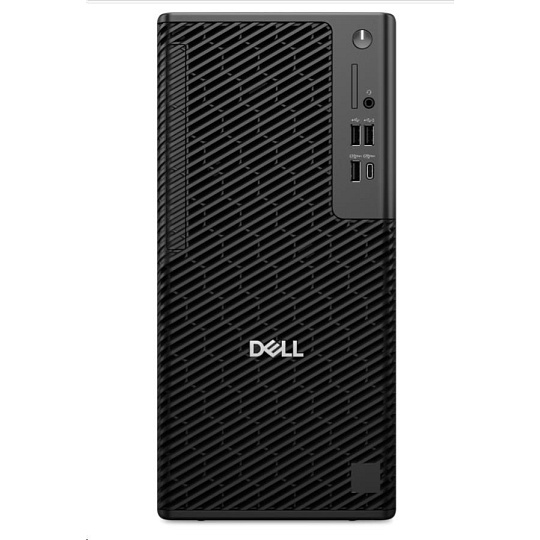

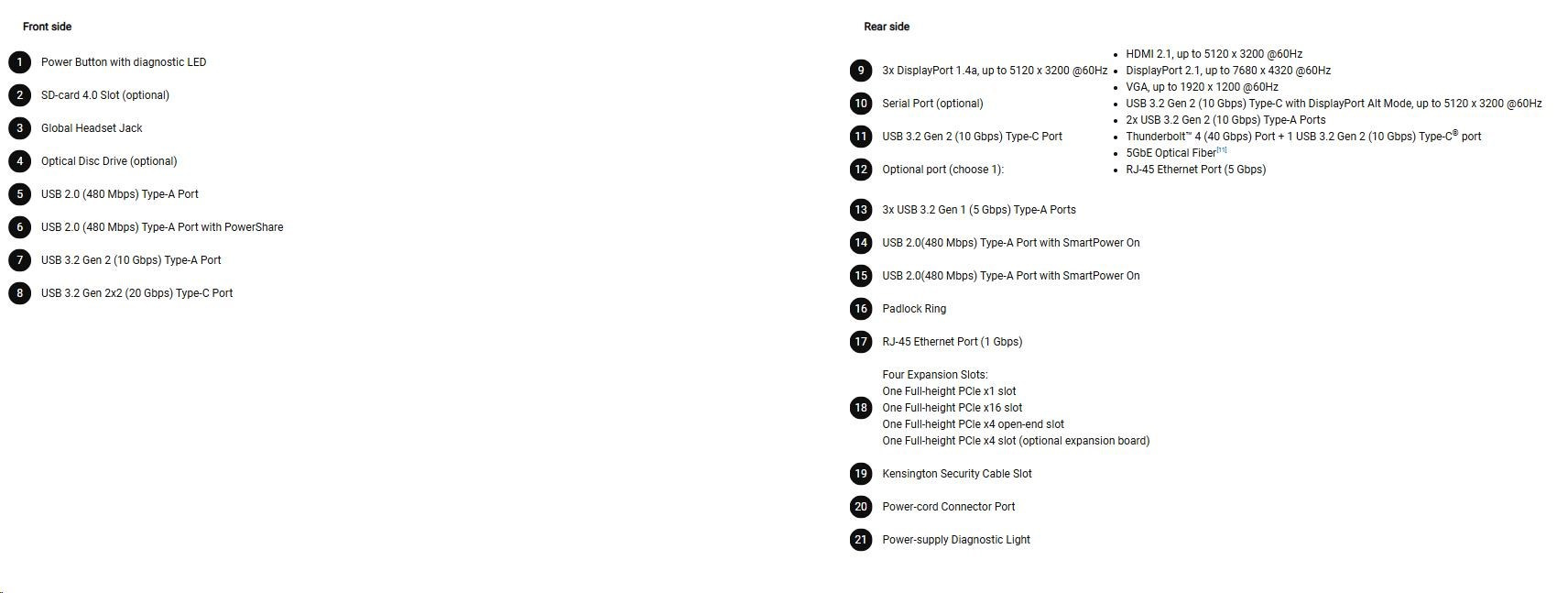

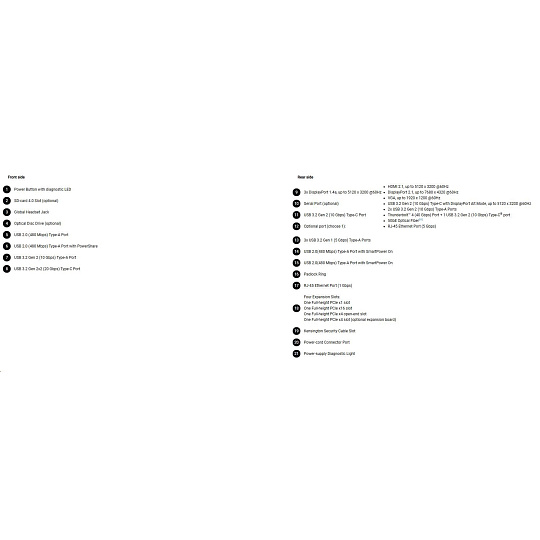

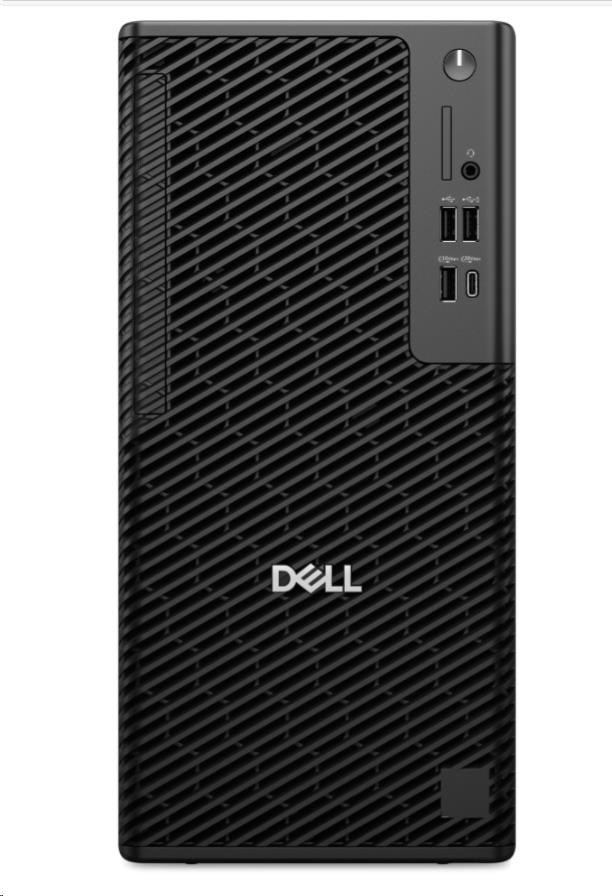

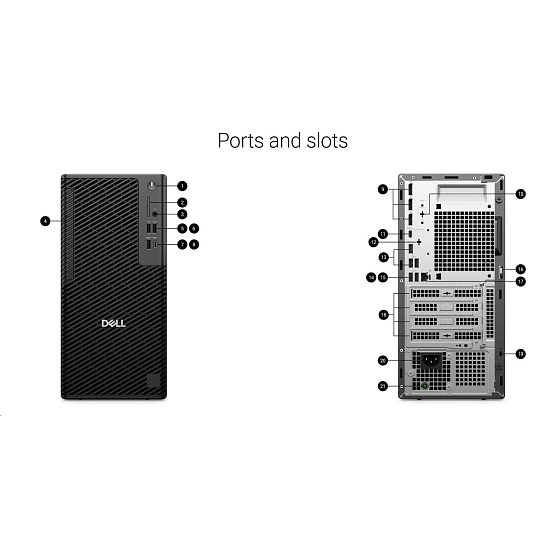

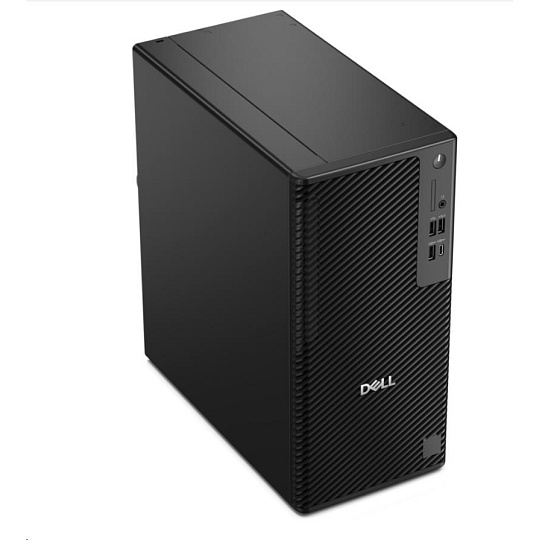

Front side

• Power Button with diagnostic LED
• SD-card 4.0 Slot (optional)
• Global Headset Jack
• Optical Disc Drive (optional)
• USB 2.0 (480 Mbps) Type-A Port
• USB 2.0 (480 Mbps) Type-A Port with PowerShare
• USB 3.2 Gen 2 (10 Gbps) Type-A Port
• USB 3.2 Gen 2x2 (20 Gbps) Type-C Port

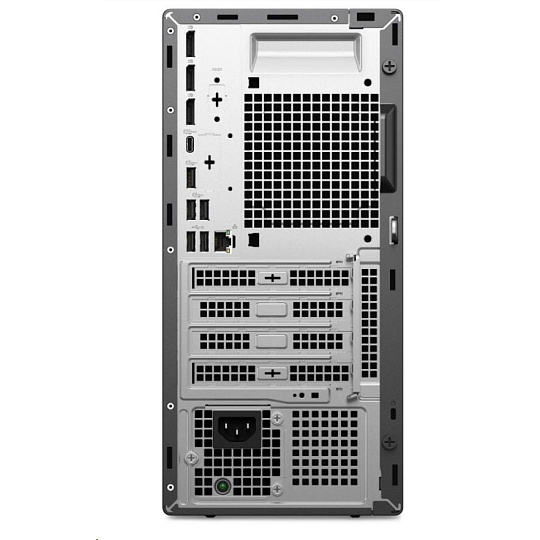

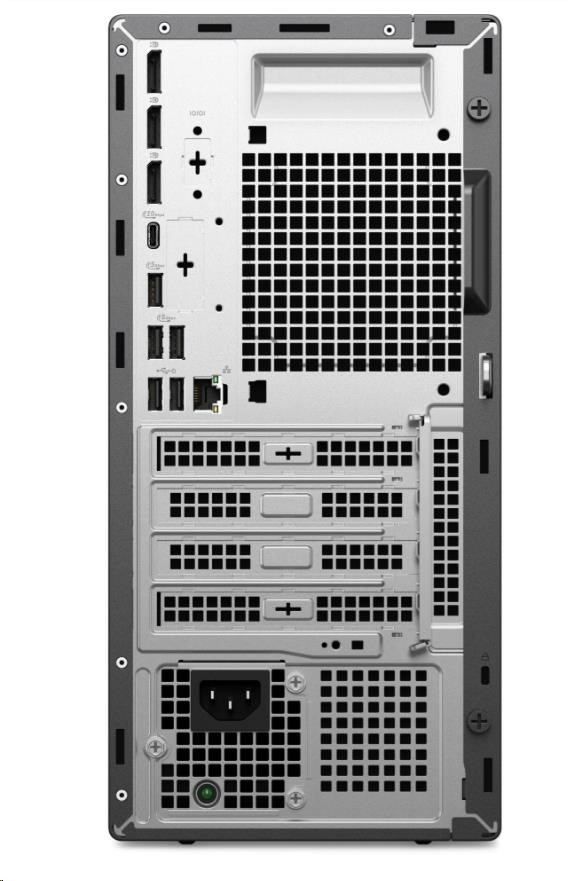

Rear side

• 3x DisplayPort 1.4a, up to 5120 x 3200 @60Hz
• Serial Port (optional)
• USB 3.2 Gen 2 (10 Gbps) Type-C Port
• Optional port (choose 1):
• HDMI 2.1, up to 5120 x 3200 @60Hz
• DisplayPort 2.1, up to 7680 x 4320 @60Hz
• VGA, up to 1920 x 1200 @60Hz
• USB 3.2 Gen 2 (10 Gbps) Type-C with DisplayPort Alt Mode, up to 5120 x 3200 @60Hz
• 2x USB 3.2 Gen 2 (10 Gbps) Type-A Ports
• Thunderbolt™ 4 (40 Gbps) Port + 1 USB 3.2 Gen 2 (10 Gbps) Type-C^® port
  5GbE Optical Fiber
• RJ-45 Ethernet Port (5 Gbps)
• 3x USB 3.2 Gen 1 (5 Gbps) Type-A Ports
• USB 2.0(480 Mbps) Type-A Port with SmartPower On
• USB 2.0(480 Mbps) Type-A Port with SmartPower On
• Padlock Ring
• RJ-45 Ethernet Port (1 Gbps)
• Four Expansion Slots:
  One Full-height PCle x1 slot
  One Full-height PCle x16 slot
  One Full-height PCle x4 open-end slot
  One Full-height PCle x4 slot (optional expansion board)
• Kensington Security Cable Slot
• Power-cord Connector Port
• Power-supply Diagnostic Light

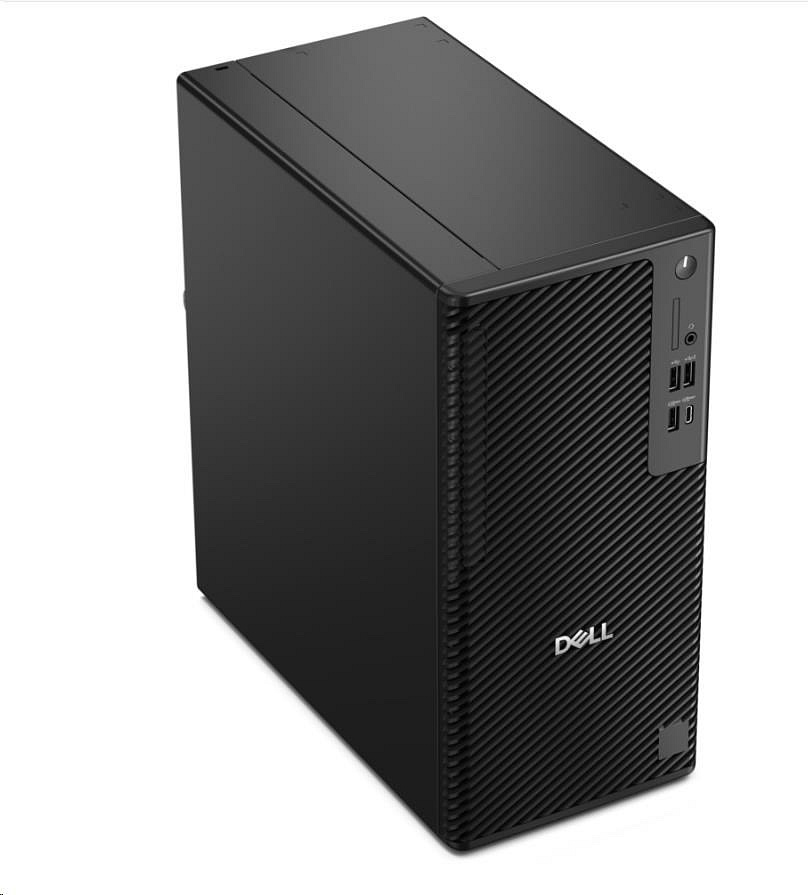

• Height: 12.77 in. (324.3 mm)
• Width: 6.06 in. (154 mm)
• Depth: 11.54 in. (293 mm)

Starting weight: 10.16 lb (4.61 kg)
