Club3D cestovní nabíječka 100W GAN technologie, 2xUSB-A a 2xUSB-C, PD 3.0 Support

Name: Club3D cestovní nabíječka 100W GAN technologie, 2xUSB-A a 2xUSB-C, PD 3.0 Support
Brand: Club 3D
SKU: 795221
Price: 90 EUR
Availability: InStock

-13%

Kód: 795221

Kód dod.: CAC-1912EU

EAN: 8719214472542

Záruka: 24 Měsíc(ů)

Výrobca: Club 3D

Pridať do obľúbených Pridať do porovnania Otázka pre predajcu Stráženie produktu

Popis a parametre

Club3D cestovní nabíječka 100W GAN technologie, 2xUSB-A a 2xUSB-C, PD 3.0 Support

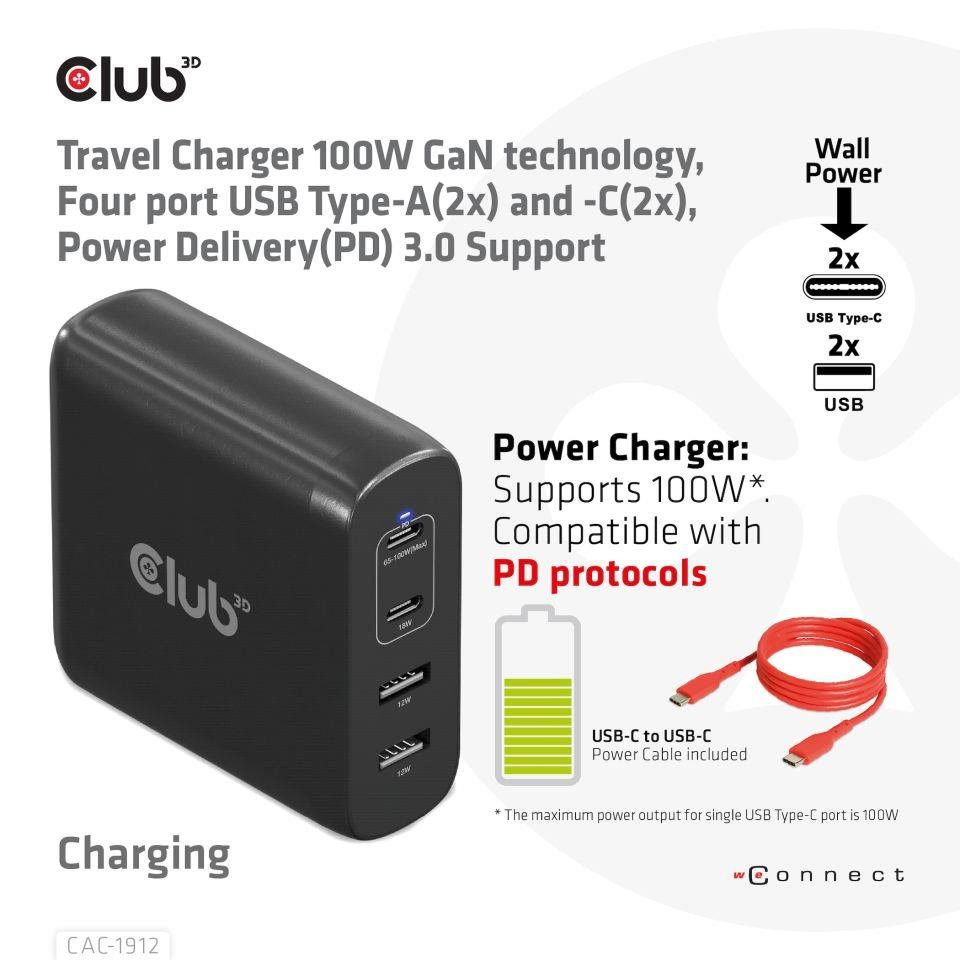

Travel Charger 100W GaN technology, Four port USB Type-A(2x) and -C(2x), Power Delivery(PD) 3.0 Support

The Club 3D CAC-1912 Travel Charger 100W GaN technology, Four port USB Type-A(2x) and -C(2x), Power Delivery(PD) 3.0 Support is a high-performance and fashionable design travel charger. It is equipped with four USB connectors that are for output interfaces, this product allows four devices to be charged at the same time. And the two USB Type-A ports can convey 2.4A each to total 3.4A. The USB Type-C port is specially designed for notebooks with a USB Type-C Host connection for a total 18W (5V/3A,9V/2A) output. The top USB Type-C port is specially designed for the USB Type-C notebooks with total 65W-100W (5~15V/3A,20V/3.25A,20V/5A) output. The maximum power output for single USB Type-C port is 100W. It is suitable to charge mobile phones, tablets and laptops. The unique design makes your life simpler and easier.

Charging: By adopting PD 3.0 Charging technology and charging function through USBType-C interface the Club3D Power Charger offers versatile and unique functionality. It will charge your devices up to 100 Watts. Built-in safeguards protect your devices against excessive current, overcharging and overheating(OCP-OTP-SCP-OVP).

Internal chip allows an input voltage of 100-240VAC 50/60Hz
GaN technology

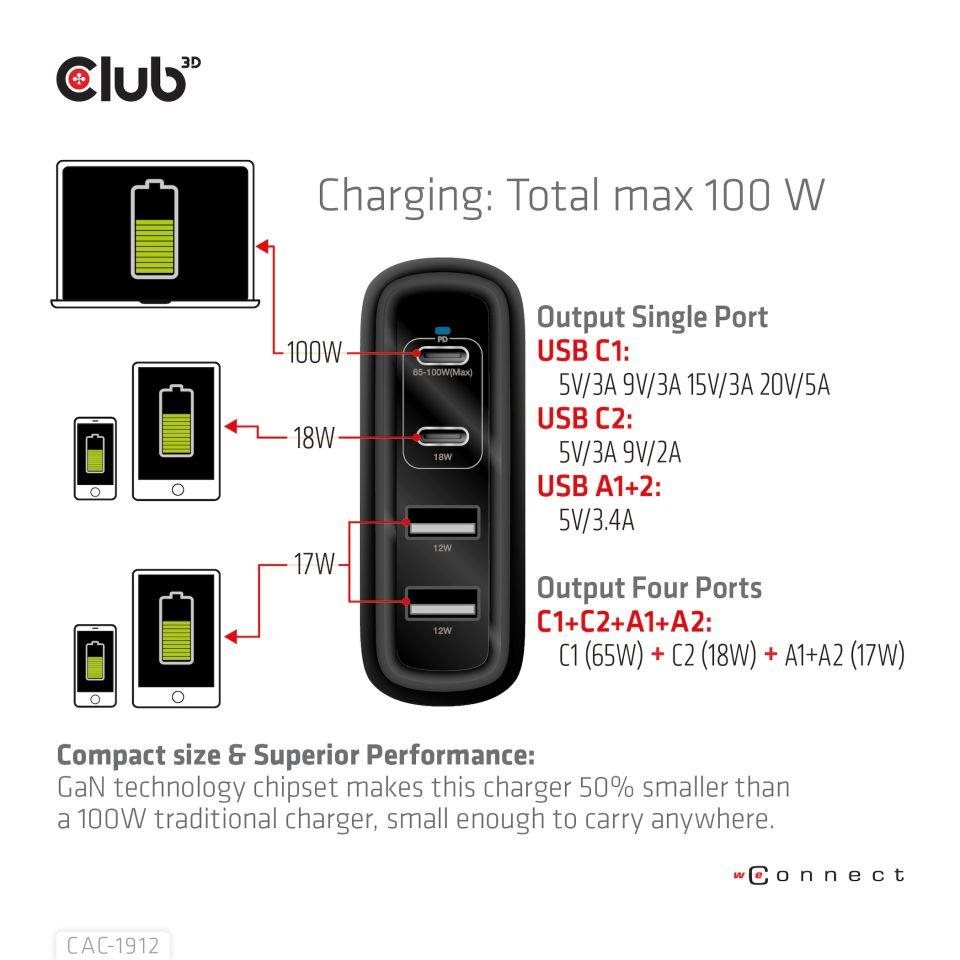

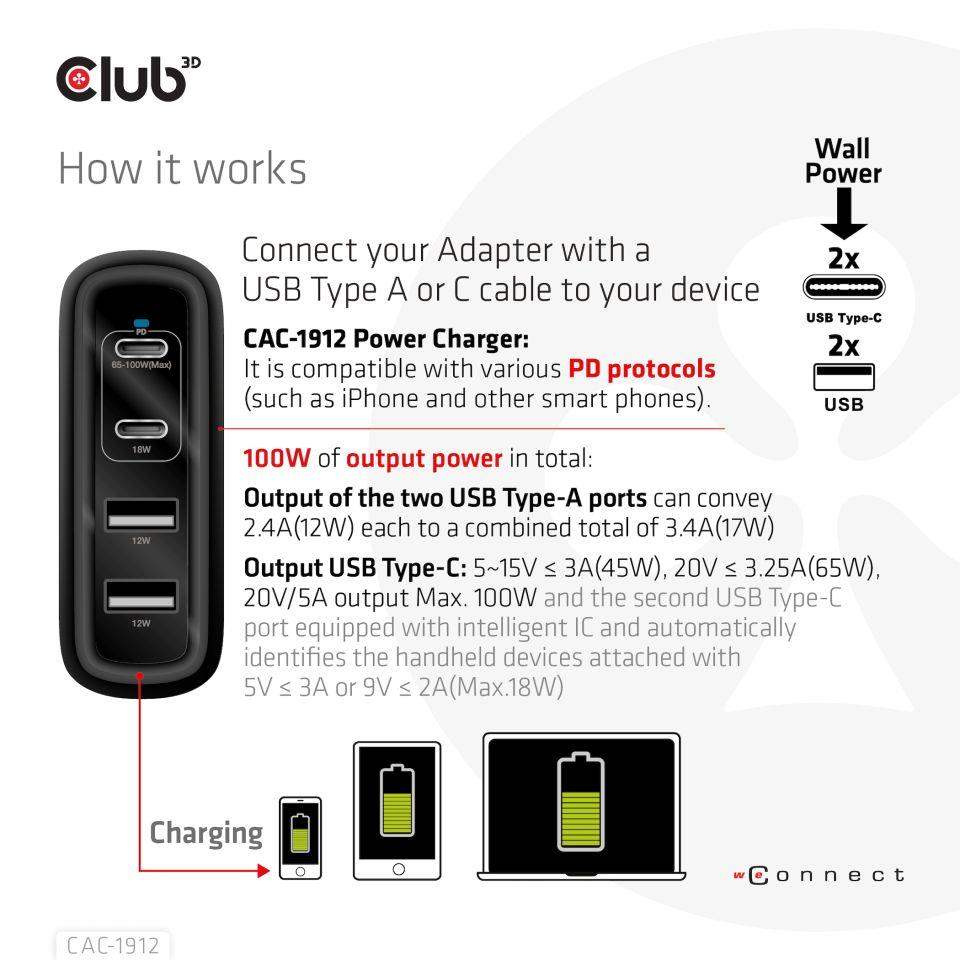

100W of output power in total:
- Output of the two USB Type-A ports can convey 2.4A(12W) each to a combined total of 3.4A(17W)
- Output USB Type-C: 5~15V ? 3A(45W), 20V ? 3.25A(65W), 20V/5A output Max. 100W and the second USB Type-C port equipped with intelligent IC and automatically identifies the handheld devices attached with 5V ? 3A or 9V ? 2A(Max.18W)

The maximum power output for single USB Type-C port is 100W
Power Delivery(PD) 3.0Support

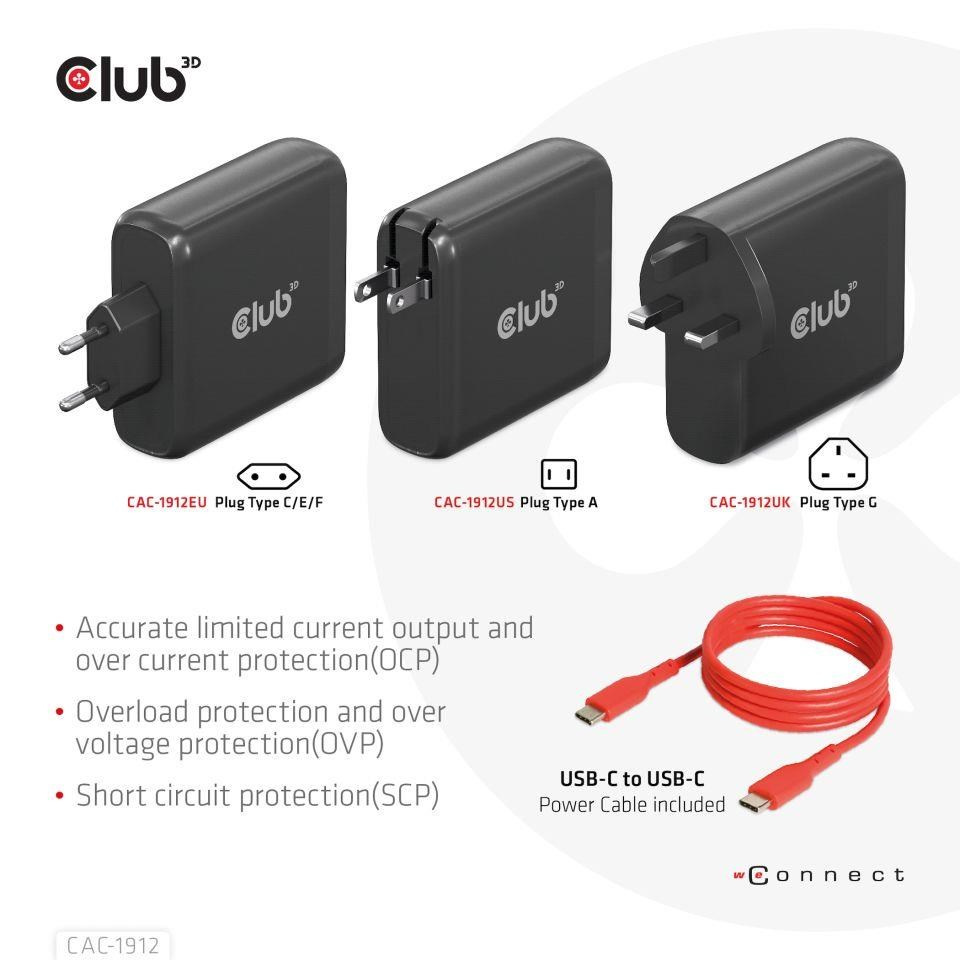

Accurate limited current output and over current protection(OCP)
Overload protection and over voltage protection(OVP)
Short circuit protection(SCP)

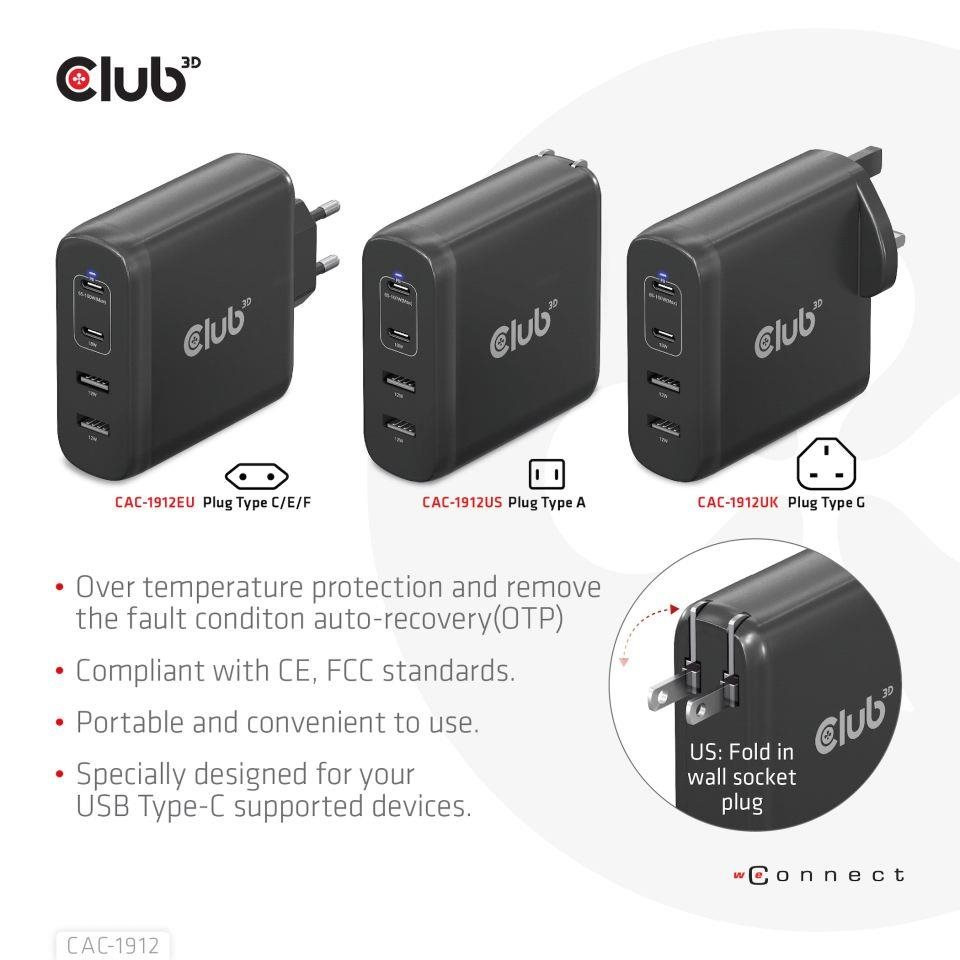

Over temperature protection and remove the fault conditon auto-recovery(OTP)
Compliant with CE, FCC standards.
Portable and convenient to use.
Specially designed for your USB Type-C supported devices.

TECHNICAL SPECIFICATIONS

OS Support	All
In the box	• CAC-1912 Travel Charger 100W GaN technology, Four port USB Type-A(2x) and -C(2x), Power Delivery(PD) 3.0 Support - Mains connector (Specify on Order) • 1x RED (Power ONLY) USB Type-C cable(1 m / 3.28 ft) for connecting to Host
Available Interfaces	Input: • 1x Mains connector (Specify on Order) Output: • USB Type-A Female(2x) • USB Type-C Female(2x)

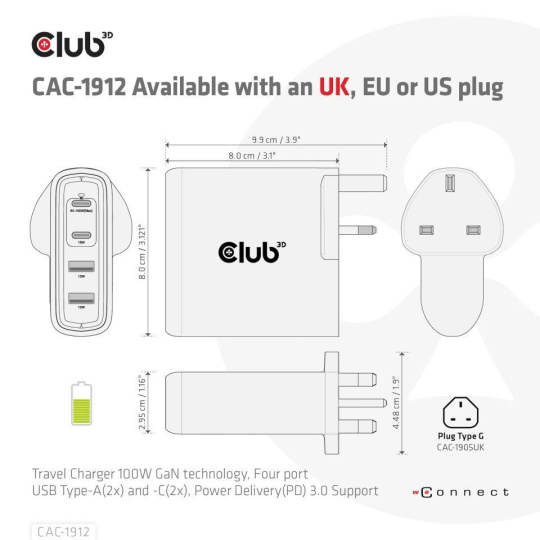

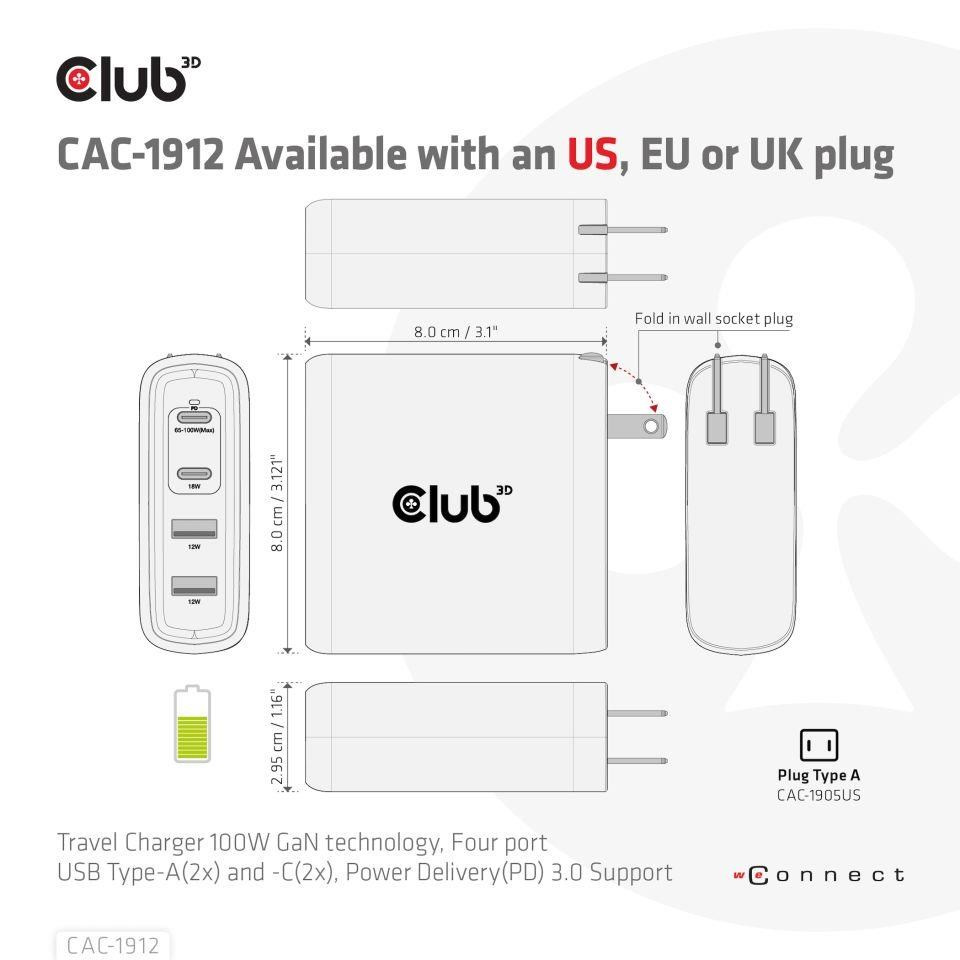

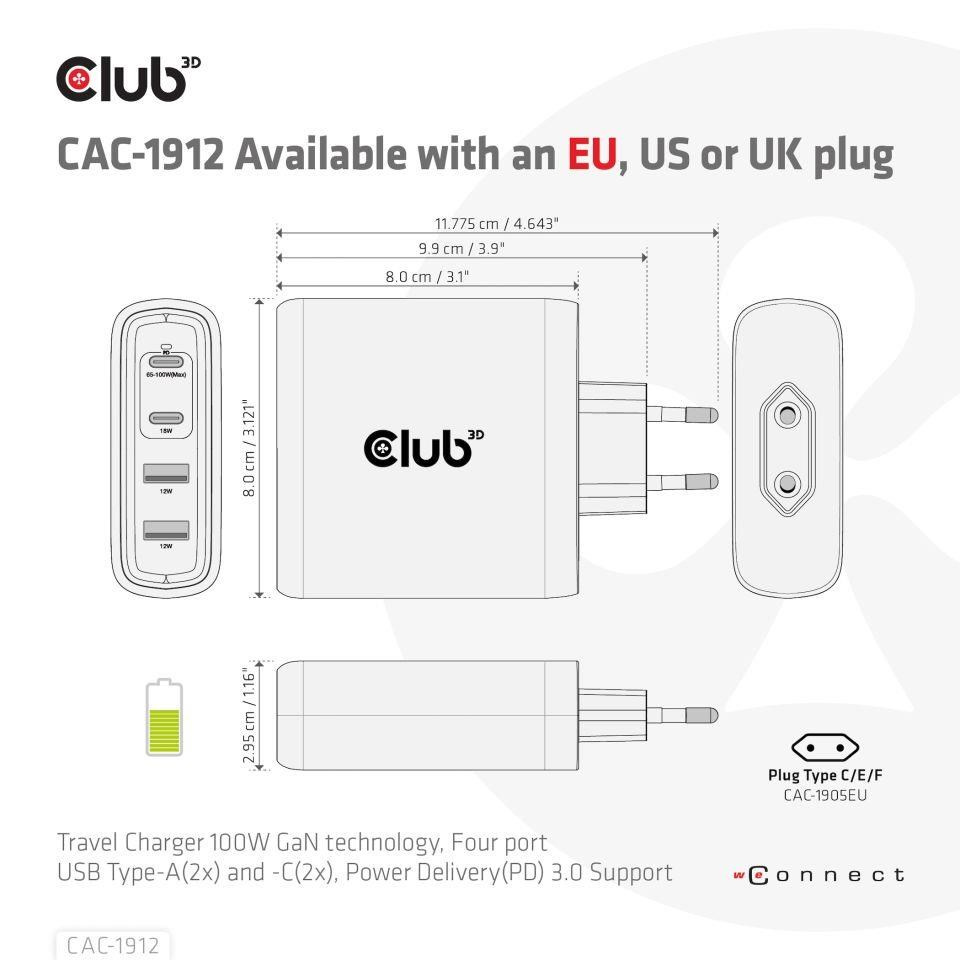

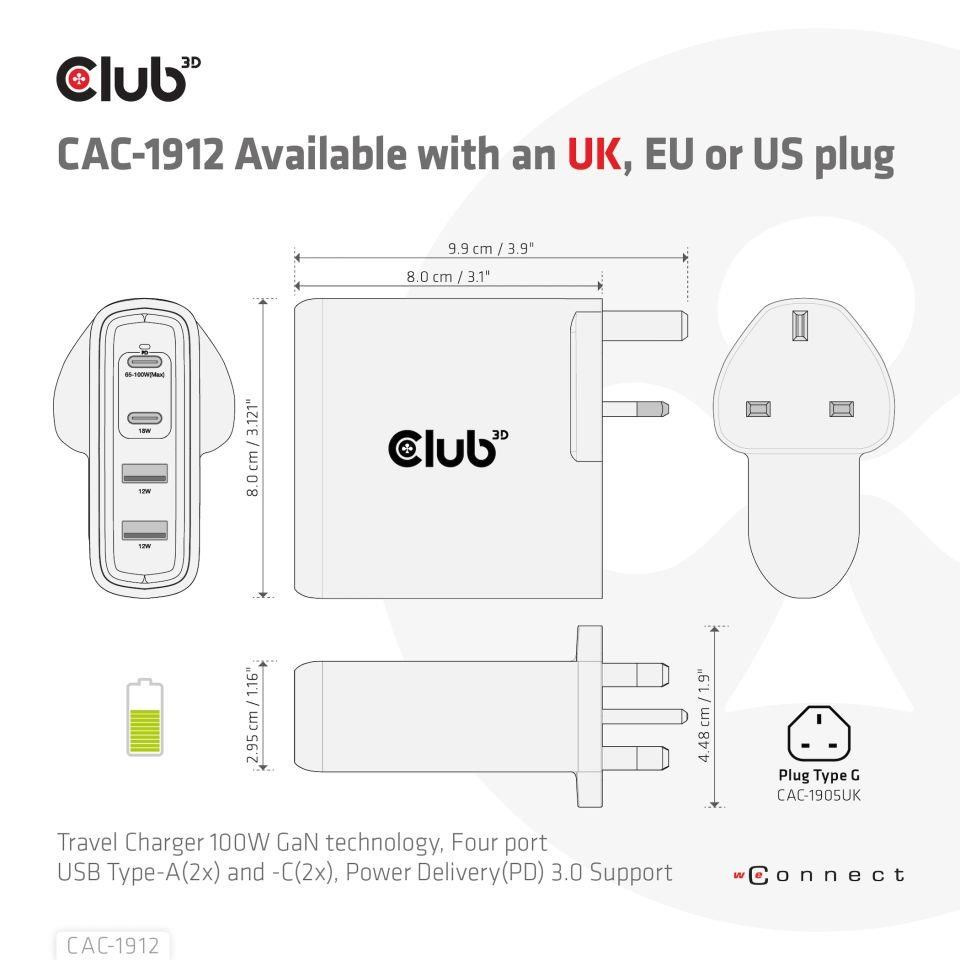

Other info	• Box size: 11 x 13 x 5.5cm / 4.33 x 5.12 x 2.16" • Device size: 8.05 x 8 x 2.95 cm / 3.17 x 3.15 x 1.16" • USB (Power) Cable length approx.: 1 m / 3.28 ft • Device Weight(Depending on mains connector): approx. 284 gr / 10.07 oz • USB Cable Weight: 35 gr / 1.2 oz • Box Weight: 40 gr / 1.41 oz • LDPE Bag Weight: 9 gr / 0.3 oz • Total Weight(depending on mains connector) approx.: 368 gr / 12.98 oz • Meets ROHS, FCC, and CE EMI requirements

In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
