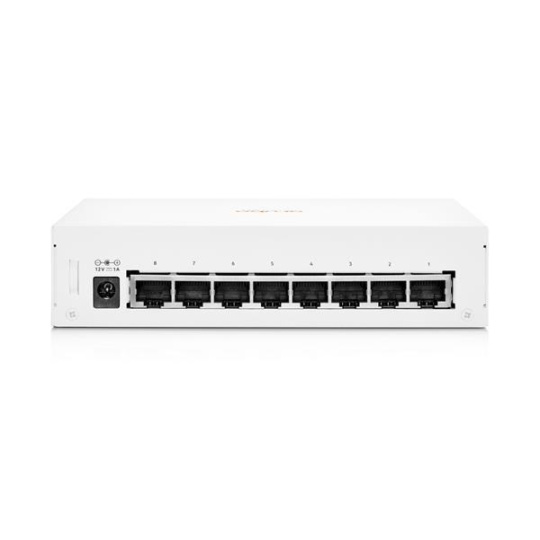

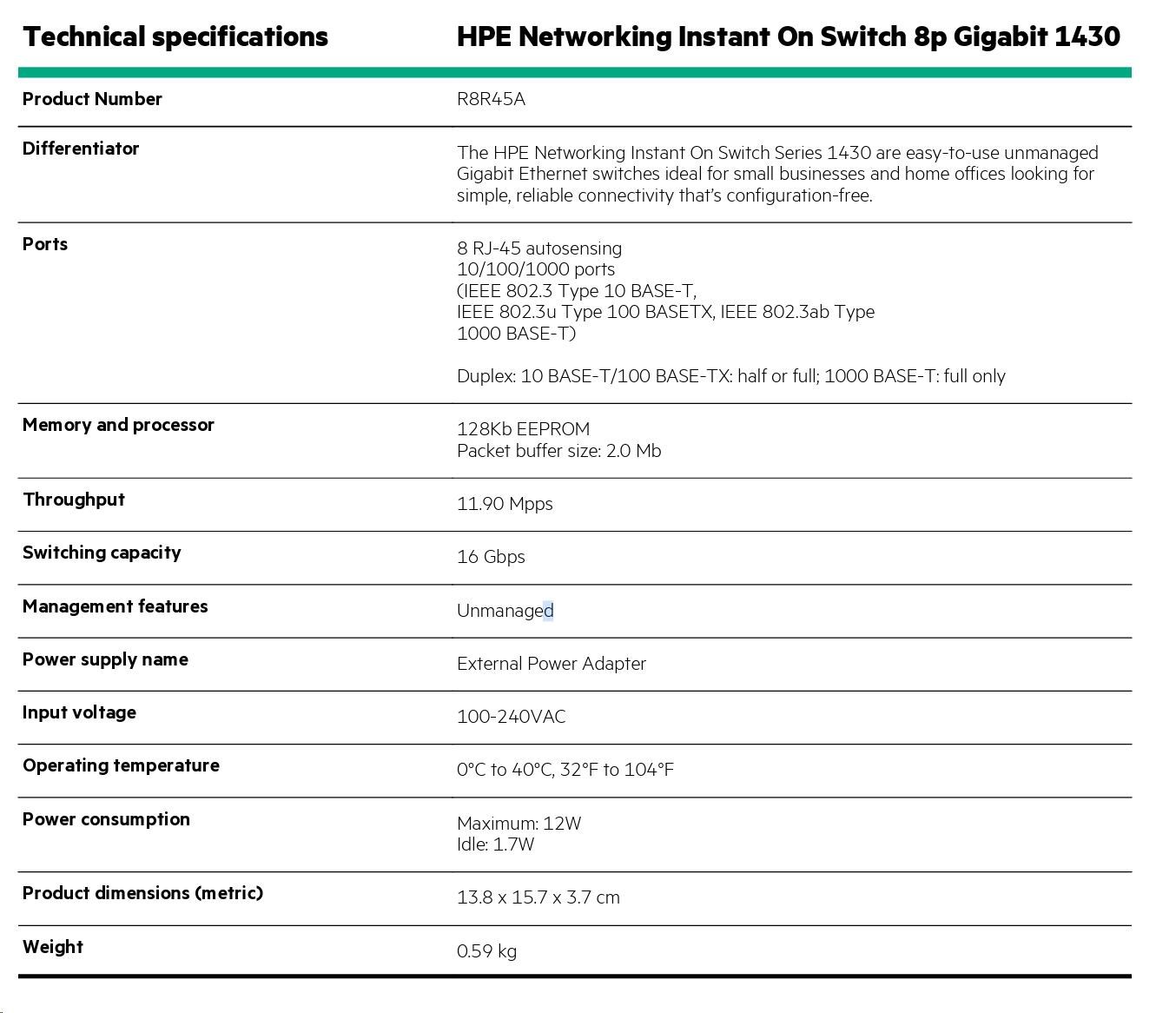

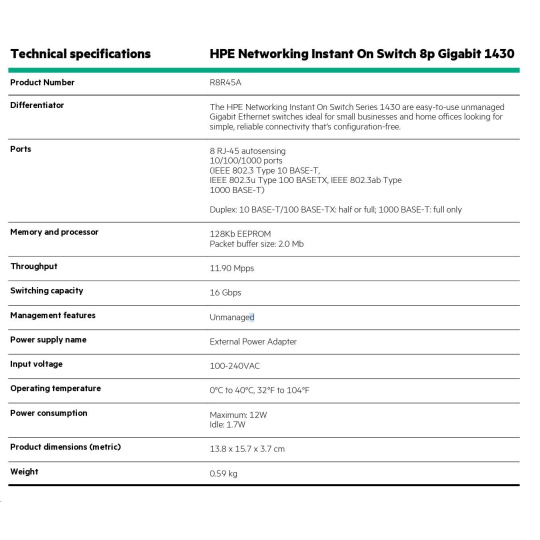

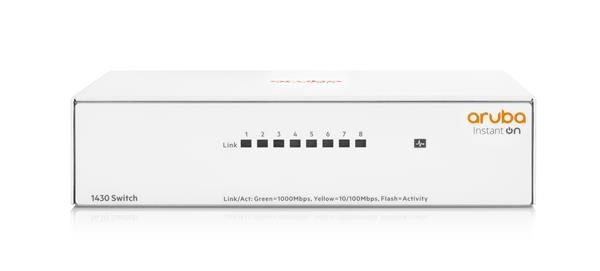

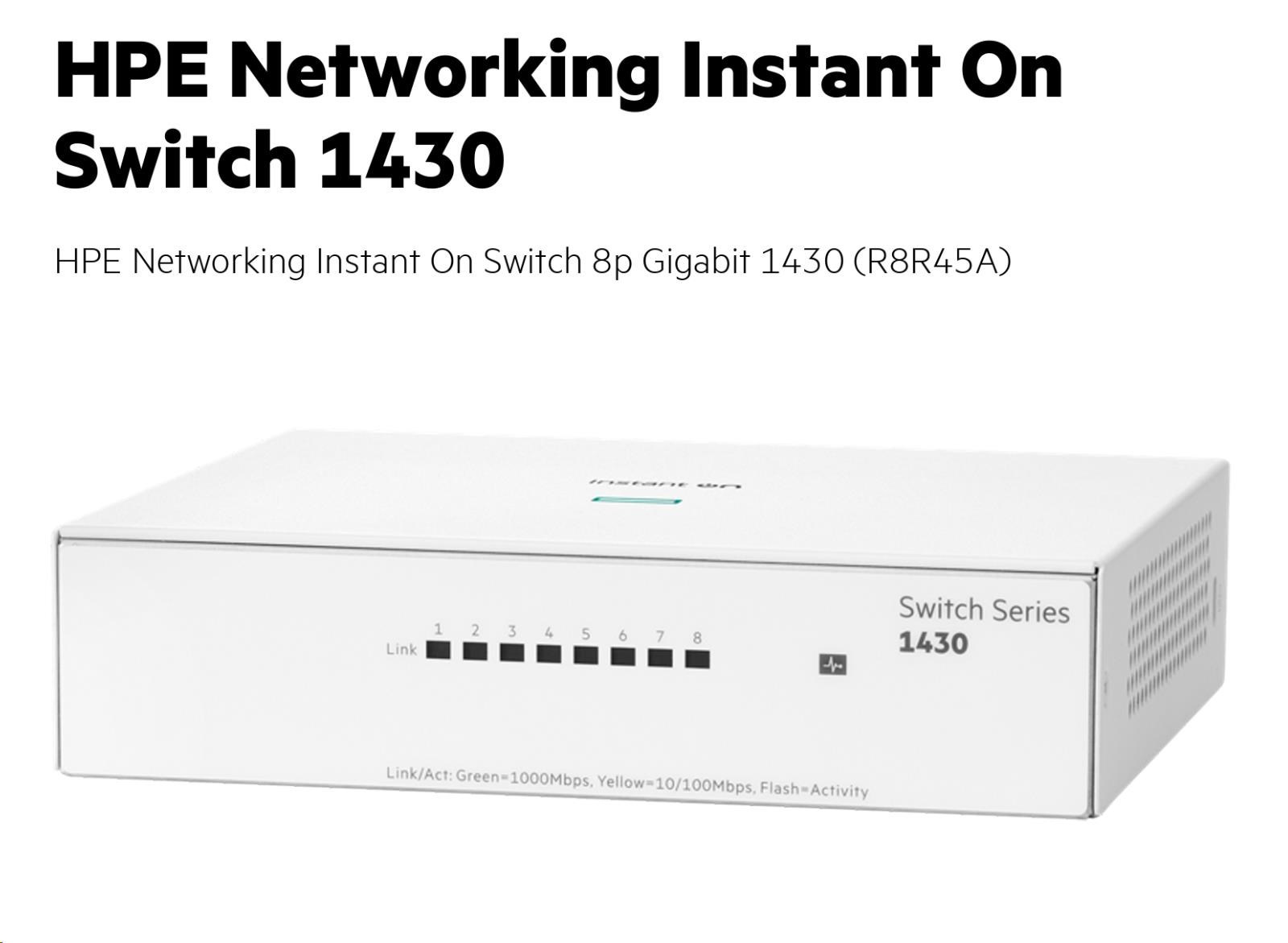

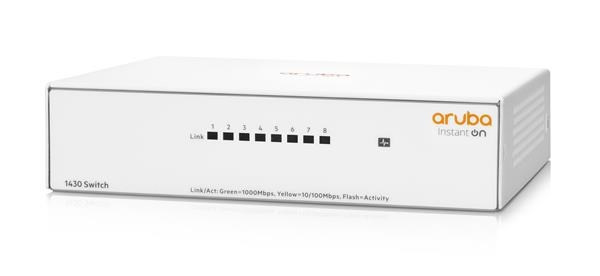

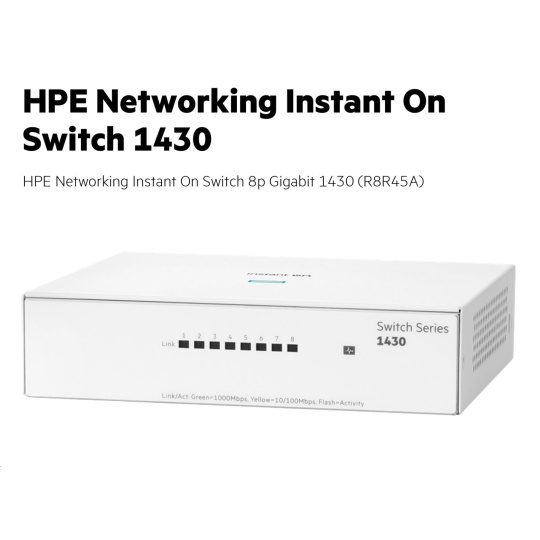

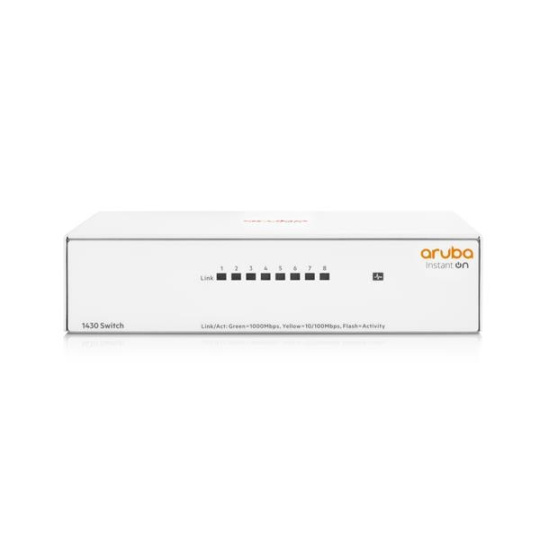

HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A) (R8R45A)

I/O ports and slots

8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical Characteristics

Dimensions

138(d) x 157(w) x 37(h) mm

Weight

1.30 lb (0.59 kg)

Processor and Memory

128Kb EEPROM; Packet buffer size: 2.0 Mb

100 Mb latency

< 2.7 Î1Sec

1000 Mb latency

< 1.80 Î1Sec

Throughput (Mpps)

11.90 Mpps

Capacity

16 Gbps

MAC address table size

8192 entries

Reliability MTBF (years)

416.2

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/ storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/ storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics

Fanless

Frequency

50Hz/60Hz

AC voltage

100-240VAC

Current

0.3A (12VDC - 1A)

Maximum power rating

12W

Idle power

1.7W

PoE power

-

Power Supply

External Power Adapter

Safety

• EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• EN/IEC 62368-1, 2nd. & 3rd. Ed.
• UL 62368-1, 3rd. Ed.
• CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
• EN/IEC 60825- 1:2014 Class 1

Emissions

• EN 55032:2015/ CISPR 32, Class B
• FCC CFR 47 Part 15: 2018, Class B
• ICES-003, Class B
• VCCI-32, Class B
• CNS 13438, Class B
• KS C 9832, Class B
• AS/NZS CISPR 32, Class B

Immunity

BS/EN 55035, CISPR 35, KS C 9835

Generic

EN 55035, CISPR 35

EN

EN/IEC 61000-4-2

ESD

EN/IEC 61000-4-3

Radiated

EN/IEC 61000-4-4

EFT/Burst

EN/IEC 61000-4-5

Surge

EN/IEC 61000-4-6

Conducted

EN/IEC 61000-4-8

Power frequency magnetic field

EN/IEC 61000-4-11

Voltage dips and interruptions

EN/IEC 61000-3-2

Harmonics

EN /IEC 61000-3-3

Device Management

Unmanaged

Mounting

Mounting positions and supported racking

• Supports table-top mounting
• Supports wall-mounting with ports facing either up or down using base surface mounting holes
• Supports under-table mounting using base surface mounting holes
