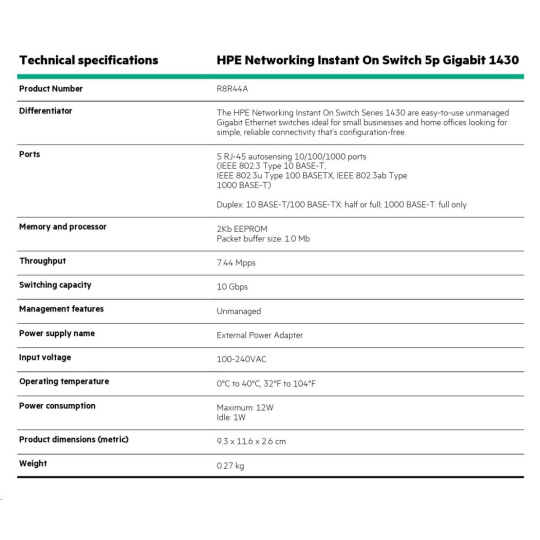

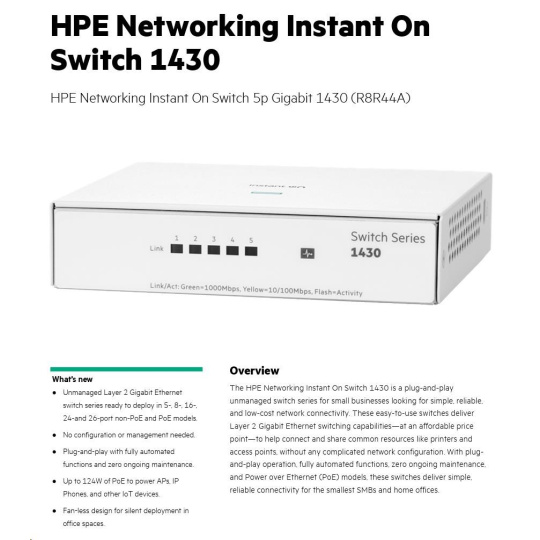

HPE Networking Instant On Switch 5p Gigabit 1430 (R8R44A)

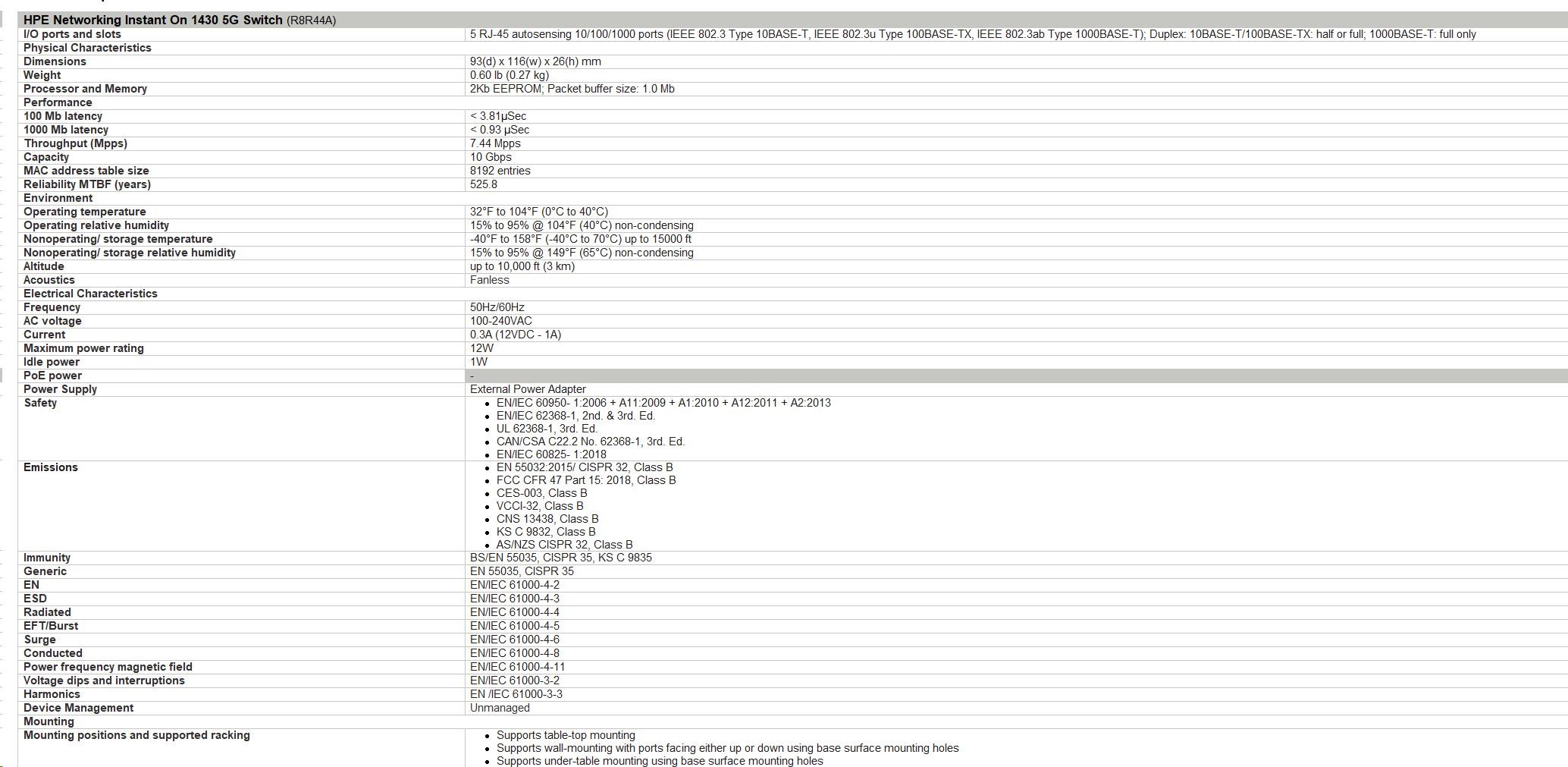

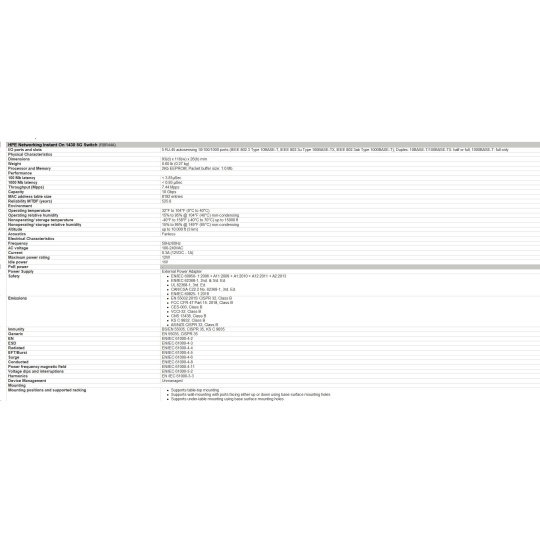

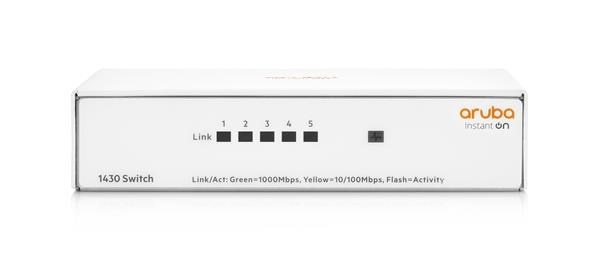

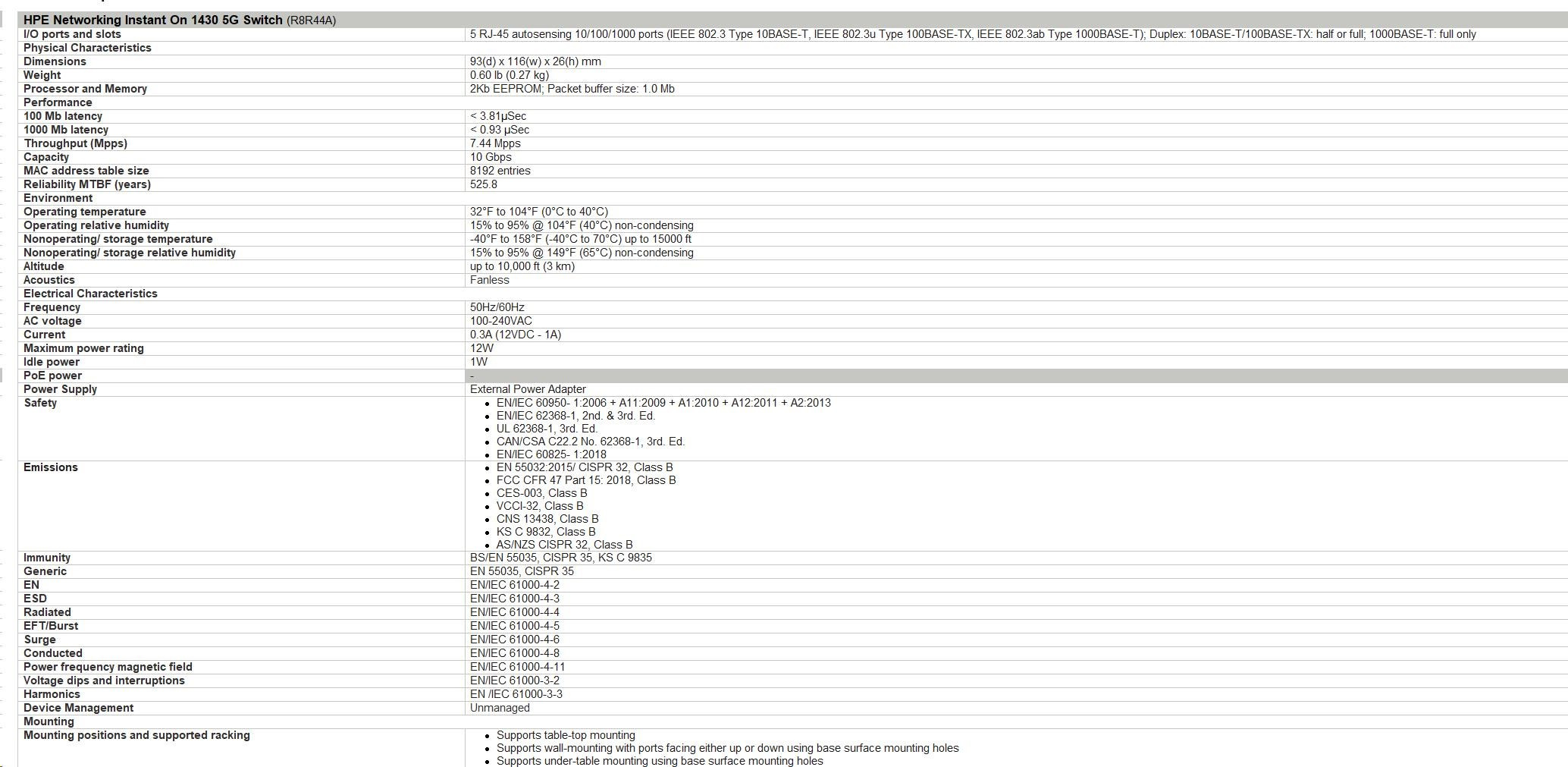

Aruba Instant On 1430 5G Switch (R8R44A) | |

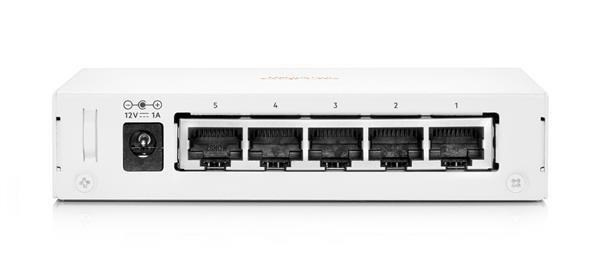

I/O ports and slots | 5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
Dimensions | 93(d) x 116(w) x 26(h) mm |
Weight | 0.60 lb (0.27 kg) |
Processor and Memory | 2Kb EEPROM; Packet buffer size: 1.0 Mb |
Performance | |
100 Mb latency | < 3.81Î1Sec |
1000 Mb latency | < 0.93 Î1Sec |
Throughput (Mpps) | 7.44 Mpps |
Capacity | 10 Gbps |
MAC address table size | 8192 entries |
Reliability MTBF (years) | 525.8 |
Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
Nonoperating/ storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
Altitude | up to 10,000 ft (3 km) |
Acoustics | Fanless |
Frequency | 50Hz/60Hz |
AC voltage | 100-240VAC |
Current | 0.3A (12VDC - 1A) |
Maximum power rating | 12W |
Idle power | 1W |
PoE power | - |
Power Supply | External Power Adapter |
Safety |
|
Emissions |
|
Immunity | BS/EN 55035, CISPR 35, KS C 9835 |
Generic | EN 55035, CISPR 35 |
EN | EN/IEC 61000-4-2 |
ESD | EN/IEC 61000-4-3 |
Radiated | EN/IEC 61000-4-4 |
EFT/Burst | EN/IEC 61000-4-5 |
Surge | EN/IEC 61000-4-6 |
Conducted | EN/IEC 61000-4-8 |
Power frequency magnetic field | EN/IEC 61000-4-11 |
Voltage dips and interruptions | EN/IEC 61000-3-2 |
Harmonics | EN /IEC 61000-3-3 |
Device Management | Unmanaged |
Mounting | |
Mounting positions and supported racking |
|
.
